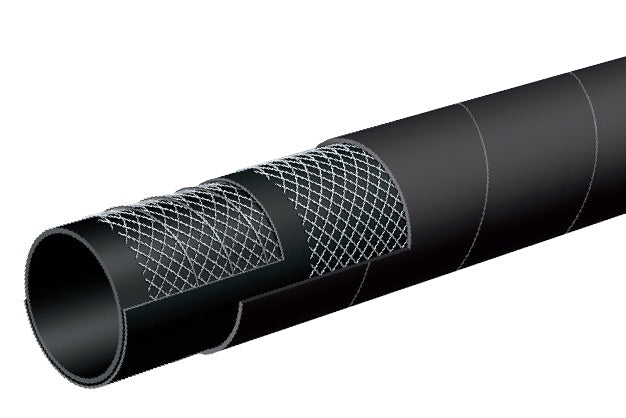

T202AA200X100 Alfagomma by Kuriyama | T202AA Evolution Series | General Purpose Water Suction & Discharge Hose | 2" ID | 2.44" OD | 150 PSI | Black | 100ft Length
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.
Suction & Discharge Hose
Alfagomma 202 Evolution® EPDM Water Suction & Discharge Hose
General purpose EPDM suction and discharge hose rated to 150 PSI (10 bar), built for water, irrigation, construction, fertilizer, and non-corrosive liquid transfer.
1
What is this product used for?
- Water suction and delivery
- Irrigation
- Construction
- Fertilizers
- Lasso acid solutions
- Other non-corrosive liquids
2
What are the key specifications?
Tube
Black EPDM
Reinforcement
Spiraled high tensile textile cords with flexible steel helix wire
Cover
Black EPDM — abrasion and ozone resistant
Service Temperature Range
-40°F (-40°C) to +212°F (+100°C)
Coupling Suggestions
Quick-acting, pin lug, or short shank couplings, or combination nipples attached with single bolt, double bolt, wire, or band type clamps
Branding
Alfagomma — Italy — 202 Evolution 10 Bar (150 PSI) General Purpose EPDM (green letters)
3
Which sizes are available?
| Part Number 50ft |
Part Number 100ft |
ID (in) | ID (mm) | OD (in) | OD (mm) | Max Working Pressure | Vacuum | Min. Bend Radius at 68°F |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| — | T202AA100X100 | 1" | 25mm | 1.42" | 36mm | 150 psi | 30" | 2" | 0.48 lbs/ft |
| — | T202AA125X100 | 1-1/4" | 32mm | 1.69" | 43mm | 150 psi | 30" | 2.5" | 0.58 lbs/ft |
| — | T202AA150X100 | 1-1/2" | 38mm | 1.93" | 49mm | 150 psi | 30" | 3" | 0.68 lbs/ft |
| — | T202AA200X100 | 2" | 51mm | 2.44" | 62mm | 150 psi | 30" | 4" | 0.88 lbs/ft |
| — | T202AA250X100 | 2-1/2" | 63mm | 2.99" | 76mm | 150 psi | 30" | 7.5" | 1.36 lbs/ft |
| — | T202AA300X100 | 3" | 76mm | 3.50" | 89mm | 150 psi | 30" | 9" | 1.61 lbs/ft |
| — | T202AA350X100 | 3-1/2" | 90mm | 4.02" | 102mm | 150 psi | 30" | 10.5" | 1.82 lbs/ft |
| — | T202AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 psi | 30" | 12" | 2.22 lbs/ft |
| T202AA500X50 | — | 5" | 127mm | 5.55" | 141mm | 150 psi | 25" | 18" | 3.18 lbs/ft |
| T202AA600X50 | T202AA600X100 | 6" | 152mm | 6.61" | 168mm | 150 psi | 25" | 24" | 3.59 lbs/ft |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
