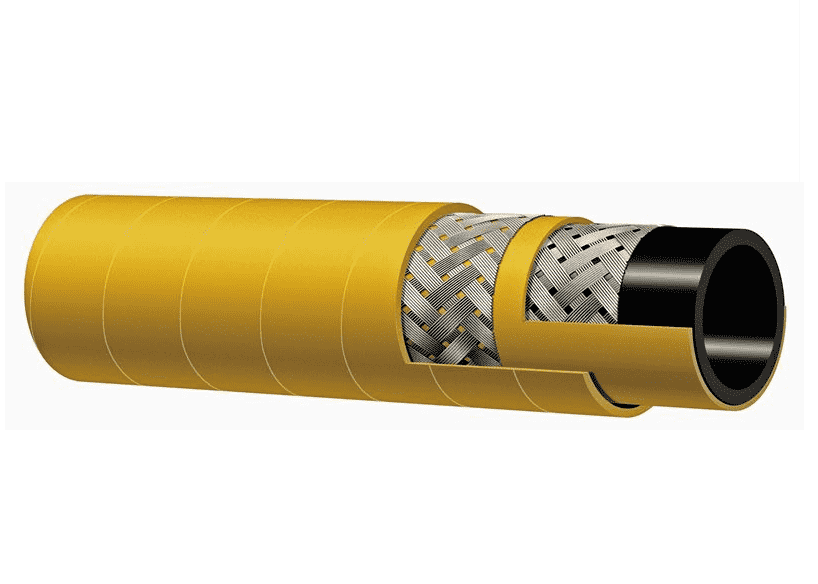

T146AK125X50 Alfagomma by Kuriyama | Braided MSHA Mine Spray Hose | Yellow | 1-1/4" ID | 1.61" OD | 1000 PSI | 50ft Length

T146AK125X50 Alfagomma by Kuriyama | Braided MSHA Mine Spray Hose | Yellow | 1-1/4" ID | 1.61" OD | 1000 PSI | 50ft Length

Sale price$315.44

Kuriyama Alfagomma® T146AK Series 1000 PSI Braided MSHA Mine Spray Hose - Yellow

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $296.51
15–29 $268.12
30+ $236.58
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • T146AK Series
Color(s):
  • Yellow

SPECIFICATIONS

Application: Underground mine water spray for dust control. Also usable on continuous mining machinery. SAE Rating: N/A
Other Ratings: N/A Tube: Black Extruded SBR/NBR blend - oil mist resistant.
Reinforcement: High tensile braided steel wire. Cover: Yellow SBR/NBR blend - abrasion, ozone, hydrocarbon and fire resistant - pin pricked.
Temperature Range: -22 deg. F (-30 deg. C) to 200 deg. F (+90 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ALFAGOMMA - ITALY - 70 BAR (1000 PSI) MINE SPRAY MSHA IC - 152/6 (embossed)
  • COUPLING SUGGESTIONS: Permanently attached crimped hydraulic couplings.
Part Number Nominal ID Nominal ID Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
T146AK075X50 3/4" 19mm 1.10" 28mm 1000 PSI 3-3/4" 50ft 0.44 lbs
T146AK075X100 3/4" 19mm 1.10" 28mm 1000 PSI 3-3/4" 100ft 0.44 lbs
T146AK100X50 1" 25mm 1.34" 34mm 1000 PSI 5" 50ft 0.58 lbs
T146AK100X100 1" 25mm 1.34" 34mm 1000 PSI 5" 100ft 0.58 lbs
T146AK125X50 1-1/4" 32mm 1.61" 41mm 1000 PSI 6-1/4" 50ft 0.75 lbs
T146AK125X100 1-1/4" 32mm 1.61" 41mm 1000 PSI 6-1/4" 100ft 0.75 lbs
T146AK150X50 1-1/2" 38mm 1.93" 49mm 1000 PSI 7-1/2" 50ft 1.07 lbs
T146AK150X100 1-1/2" 38mm 1.93" 49mm 1000 PSI 7-1/2" 100ft 1.07 lbs
T146AK200X50 2" 51mm 2.48" 63mm 1000 PSI 10" 50ft 1.47 lbs
T146AK200X100 2" 51mm 2.48" 63mm 1000 PSI 10" 100ft 1.47 lbs
