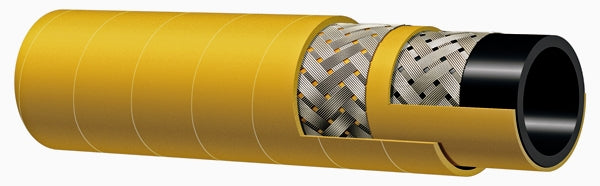

T142AK250X100 Alfagomma by Kuriyama | T142AK Series | High Temp Compressed Air Hose | 2-1/2" ID | 3.03" OD | 450 PSI | Yellow | 100ft Length
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.
SPECIFICATIONS
| Application: | High pressure air for mines and quarries. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Black Extruded NBR (RMA Class A) - oil mist resistant. |
| Reinforcement: | High tensile steel wire braids. | Cover: | Yellow SBR/NBR - abrasion, ozone, hydrocarbon and flame resistant - pin pricked. |
| Service Temperature Range: | -40°F (-40°C) to +248°F (+120°C) | Coupling Suggestions: | Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands. |
| Branding: | ALFAGOMMA - ITALY T142 HIGH TEMP STEEL AIR - OIL RESISTANT (embossed) | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | (in) | lbs/ft | ||
| T142AK200X50 | T142AK200X100 | 2" | 51mm | 2.52" | 64mm | 600 PSI | 10" | 1.16 lbs/ft |
| - | T142AK250X100 | 2-1/2" | 63mm | 3.03" | 77mm | 450 PSI | 12-1/2" | 1.93 lbs/ft |
| T142AK300X50 | T142AK300X100 | 3" | 76mm | 3.54" | 90mm | 450 PSI | 15" | 1.91 lbs/ft |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
450
Tubing Construction:
Cover Construction:
Special Properties:
