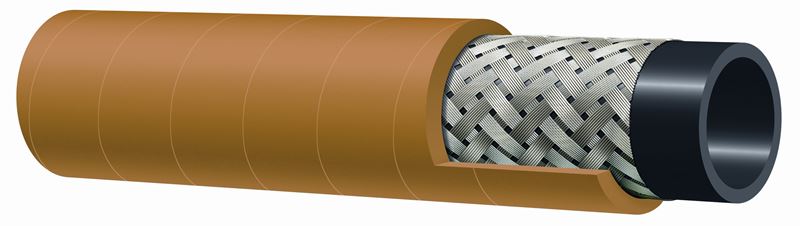

T140AK400X50 Alfagomma by Kuriyama | T140AK Series | Compressed Air Hose | 4" ID | 4.65" OD | 450 PSI | Yellow | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | High pressure air hose for heavy-duty use in mines, quarries, construction and industry. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Black Extruded SBR - resistant to oil mist. |
| Reinforcement: | High tensile steel wire braids. | Cover: | Yellow SBR - abrasion and ozone resistant - pin pricked. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands. |
| Branding: | ALFAGOMMA - ITALY - T140 STEEL AIR (embossed) | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | (in) | lbs/ft | ||
| T140AK050X50 | T140AK050X100 | 1/2" | 13mm | 0.87" | 22mm | 600 PSI | 2-1/2" | 0.28 lbs/ft |
| T140AK075X50 | T140AK075X100 | 3/4" | 19mm | 1.10" | 28mm | 600 PSI | 4" | 0.37 lbs/ft |
| T140AK100X50 | T140AK100X100 | 1" | 25mm | 1.34" | 34mm | 600 PSI | 5" | 0.47 lbs/ft |
| T140AK125X50 | T140AK125X100 | 1-1/4" | 32mm | 1.65" | 42mm | 600 PSI | 6-1/2" | 0.72 lbs/ft |
| T140AK150X50 | T140AK150X100 | 1-1/2" | 38mm | 1.89" | 48mm | 600 PSI | 7-1/2" | 0.86 lbs/ft |
| T140AK200X50 | T140AK200X100 | 2" | 51mm | 2.52" | 64mm | 600 PSI | 10" | 1.34 lbs/ft |
| T140AK250X50 | T140AK250X100 | 2-1/2" | 63mm | 3.03" | 77mm | 450 PSI | 12-1/2" | 1.64 lbs/ft |
| T140AK300X50 | T140AK300X100 | 3" | 76mm | 3.54" | 90mm | 450 PSI | 15" | 1.95 lbs/ft |
| T140AK400X50 | T140AK400X100 | 4" | 102mm | 4.65" | 118mm | 450 PSI | 20" | 2.75 lbs/ft |
