T10-8X8 by Couplamatic | T Series Coupling | 1/2" Hose ID x G-1/2-14 Thread Size BSPP 60° Cone Female Swivel | 1/2" BSPP | Straight | Trivalent Zinc Plating | Pack of 10

T10-8X8 by Couplamatic | T Series Coupling | 1/2" Hose ID x G-1/2-14 Thread Size BSPP 60° Cone Female Swivel | 1/2" BSPP | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$150.89

Couplamatic Systems Inc.
T Series - BSPP - British Standard Parallel 60° Cone - Female Swivel

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
5–19 $141.84
20–59 $128.26
60+ $113.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • T Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female BSPP
  • 1/2in Hose Barb
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

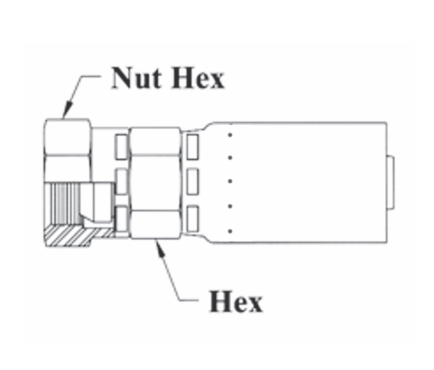

Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead E
T10-4X4 1/4" 1/4" G-1/4-19 9/16" 3/4" 04E-354
T10-6X6 3/8" 3/8" G-3/8-19 3/4" 7/8" 06E-356
T10-8X8 1/2" 1/2" G-1/2-14 13/16" 1" 08E-358

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
