T10-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x G-3/8-19 Thread Size BSPP 60° Cone Female Swivel | 3/8" BSPP | Straight | Trivalent Zinc Plating | Pack of 10

T10-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x G-3/8-19 Thread Size BSPP 60° Cone Female Swivel | 3/8" BSPP | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$110.72

Package Quantity: 10 EA

Buy more, save moreDiscounts applied in cart/checkout.
T Series — PTFE / Reduced OD 100R7

T10 T Series — 60° Cone, BSPP, Female Swivel, Straight

T10 is the 60° Cone, BSPP, Female Swivel, Straight configuration of the T Series, terminating SAE 100R14 PTFE hose, 1/4"–3/8" reduced OD 100R7 hose, and standard 1/2"–1" 100R7 hose.

1

What are the main product features?
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating
  • Covers PTFE and reduced OD hose — the configurations the 3 Series does not fit.
  • Minimum order quantities apply — 10 pieces for 3/16"–1/2", 5 pieces for 3/4" and 1".
2

Which sizes are available?

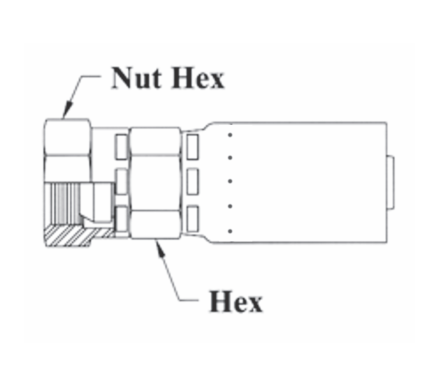

Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead E
T10-4X4 1/4" 1/4" G-1/4-19 9/16" 3/4" 04E-354
T10-6X6 3/8" 3/8" G-3/8-19 3/4" 7/8" 06E-356
T10-8X8 1/2" 1/2" G-1/2-14 13/16" 1" 08E-358
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Additional Product Data:

Series:
  • T Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female BSPP
  • 3/8in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
