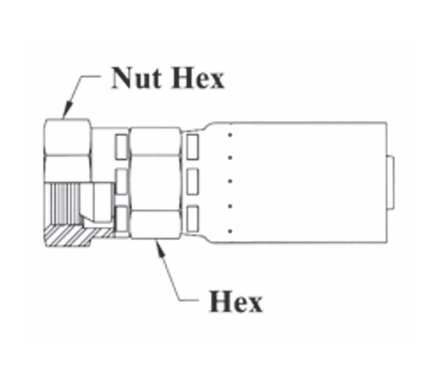

T10-4X4 by Couplamatic | T Series Coupling | 1/4" Hose ID x G-1/4-19 Thread Size BSPP 60° Cone Female Swivel | 1/4" BSPP | Straight | Trivalent Zinc Plating | Pack of 10

T10-4X4 by Couplamatic | T Series Coupling | 1/4" Hose ID x G-1/4-19 Thread Size BSPP 60° Cone Female Swivel | 1/4" BSPP | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$106.51

Couplamatic Systems Inc.
T Series - BSPP - British Standard Parallel 60° Cone - Female Swivel

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
5–19 $100.12
20–59 $90.53
60+ $79.88
Discounts applied in cart/checkout.

Product Data:

Series:
  • T Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Hose Barb
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead E
T10-4X4 1/4" 1/4" G-1/4-19 9/16" 3/4" 04E-354
T10-6X6 3/8" 3/8" G-3/8-19 3/4" 7/8" 06E-356
T10-8X8 1/2" 1/2" G-1/2-14 13/16" 1" 08E-358

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
