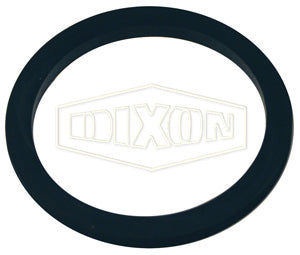

SW500F Dixon Buna-N Fire Hose Coupling Swivel Washer - 5-1/16" ID - 6-3/8" OD
Dixon Fire Fittings
Fire Hose Coupling Swivel Washer
Swivel washers are used on the swivel end of expansion ring fire hose couplings.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.59 |
| 40–79 | $14.09 |
| 80+ | $12.44 |
Discounts applied in cart/checkout.
Product Data:
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
| Part Number | ID | OD | Thickness | Weight (Lbs.) |
|---|---|---|---|---|
| SW100F | 1-1/16" | 1-7/16" | 1/8" | 0.0045 |
| SW150 | 1-9/16" | 2-1/16" | 1/8" | 0.0080 |
| SW200 | 2-1/16" | 2-1/2" | 1/8" | 0.0200 |
| SW250 | 2-9/16" | 3-3/16" | 3/16" | 0.0230 |
| SW300F | 3-1/16" | 3-3/4" | 1/4" | 0.1728 |
| SW400F | 4-1/6" | 5-1/8" | 1/4" | 0.0850 |
| SW450F | 4-9/16" | 5-7/8" | 1/4" | 0.1000 |
| SW500F | 5-1/16" | 6-3/8" | 1/4" | 0.0900 |
| SW600F | 6-1/16" | 7-1/8" | 1/4" | 0.1000 |
