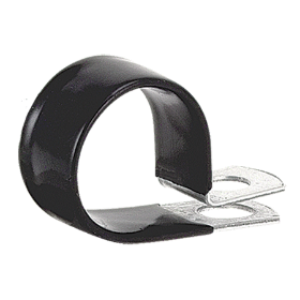

SVW-04 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diamter: 1/4" | Galvanized Steel
Minimum Order Quantity: 5 Units
Foster
SVN Loop Clamps | Vinyl Dipped Galvanized Steel 3/4" (19mm) Wide
Product Data:
Series:
Material(s):
Special Properties:
Clamp Width:
[".75""]
Maximum Clamp I.D.:
["0.25""]
| Features: | |||
|---|---|---|---|
|
|||

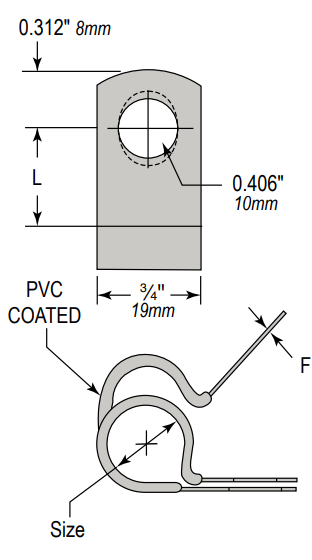

| Part Number | Clamp ID | L | F |
| SVW-04 | 1/4" | 0.656" | 0.032" |
| SVW-05 | 5/16" | 0.562" | 0.032" |
| SVW-06 | 3/8" | 0.0718" | 0.032" |
| SVW-08 | 1/2" | 0.0710" | 0.048" |
| SVW-09 | 9/16" | 0.812" | 0.048" |
| SVW-10 | 5/8" | 0.843" | 0.048" |
| SVW-12 | 3/4" | 0.906" | 0.048" |
| SVW-13 | 13/16" | 0.937" | 0.048" |
| SVW-14 | 7/8" | 0.968" | 0.048" |
| SVW-15 | 15/16" | 1.00" | 0.048" |
| SVW-16 | 1" | 1.031" | 0.048" |
| SVW-17 | 1.06" | 1.030" | 0.048" |
| SVW-18 | 1-1/8" | 1.092" | 0.048" |
| SVW-20 | 1-1/4" | 1.156" | 0.048" |
| SVW-22 | 1-3/8" | 1.218" | 0.048" |
