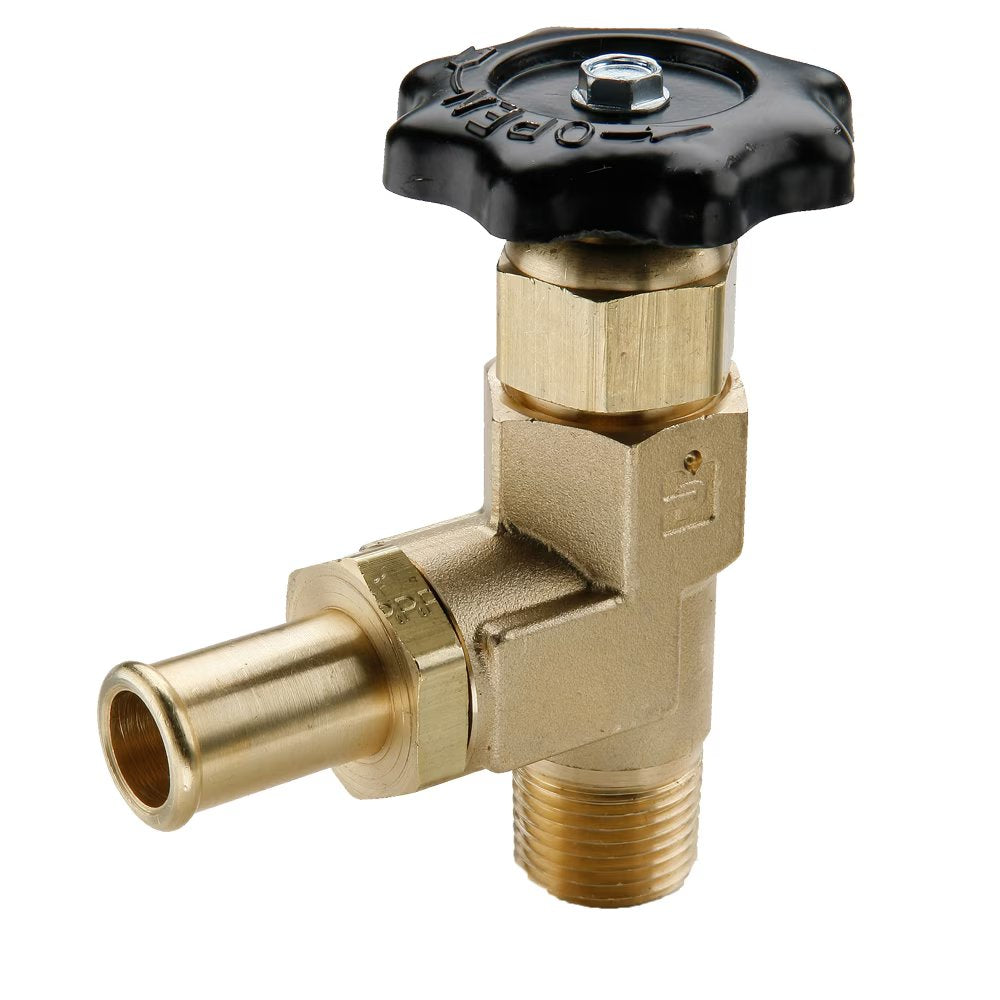

SV404P-10-8 by Parker | Truck Valves & Lanyard Valve | 5/8" Hose ID x 1/2" Male Pipe Thread | 3.71" Length | 90° Elbow | Brass | Pack of 5
by Parker Hannifin
Truck Valves & Lanyard Valve:Truck Valve SV404P
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $343.86 |
| 15–29 | $310.94 |
| 30+ | $274.36 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
Truck Valves
Lanyard Valve
|
|---|---|
| Markets: |
|
| Applications: |
|
| Truck Valve Specification: | |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
| Temperature Range: | -30° to +250° F (-34.4° to +121.1° C) |
| Lanyard Valve Specification: | |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
| Temperature Range: | -40° to +200° F (-40° to +93.3° C) |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose ID | Pipe Thread | Flow | L | M | N |
| SV404P-10-8 | 5/8" | 1/2" | .468" | 3.71" | 2.31" | 1.34" |
| SV404P-12-6 | 3/4" | 3/8" | .438" | 3.73" | 2.31" | 1.34" |
| SV404P-12-8 | 3/4" | 1/2" | .562" | 3.73" | 2.31" | 1.34" |
