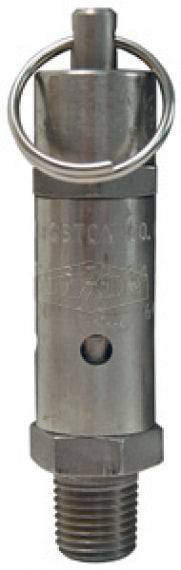

SV125SS Dixon Valve Stainless Steel Standard Safety Pop-Off Valve - 1/4" Male NPT - 78 SCFM

SV125SS Dixon Valve Stainless Steel Standard Safety Pop-Off Valve - 1/4" Male NPT - 78 SCFM

Sale price$98.18

Dixon Valve & Coupling
Safety Pop-Off Valve | Standard

For use on compressors and in compressed air service.

Designed to protect un-fired pressure vessels from over-pressure.
Buy More, Save More!
Quantity Price Each
5–19 $92.29
20–59 $83.45
60+ $78.54
Discounts applied in cart/checkout.
Materials:
  • Brass valves are supplied with a stainless steel ball.
  • Stainless valves are all stainless construction with a soft seat.
Specifications:
  • Maximum temperature: 400°F (204°C)
Approvals:
  • ASME Code, National Board Certified
  • CSA B51-03 certified
Part Number Material Male NPT Preset Pressure
PSI		 SCFM
SV30 Brass 1/4" 30 PSI 35 SCFM
SV100 Brass 1/4" 100 PSI 89 SCFM
SV125 Brass 1/4" 125 PSI 109 SCFM
SV150 Brass 1/4" 150 PSI 129 SCFM
SV175 Brass 1/4" 175 PSI 149 SCFM
SV200 Brass 1/4" 200 PSI 168 SCFM
SV30SS Stainless Steel 1/4" 30 PSI 35 SCFM
SV100SS Stainless Steel 1/4" 100 PSI 92 SCFM
SV125SS Stainless Steel 1/4" 125 PSI 112 SCFM
SV150SS Stainless Steel 1/4" 150 PSI 132 SCFM
SV175SS Stainless Steel 1/4" 175 PSI 153 SCFM
SV200SS Stainless Steel 1/4" 200 PSI 173 SCFM

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male NPT
  • 1/4in Male NPT
  • Some Ends Match
Material(s):
  • Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
