STFD-1.0-100 by Texcel | TEX-STEAM™ FDA Series | Food Grade Steam Hose | 1" Hose ID | 105 PSI | Blue | 100ft Length
Package Quantity: 100 Feet
Buy more, save moreDiscounts applied in cart/checkout.
STFD-1.0-100 by Texcel | TEX-STEAM™ FDA Series | Food Grade Steam Hose | 1" Hose ID | 105 PSI | Blue | 100ft Length
Sale price$763.00
($7.63/ft)
Steam Hose

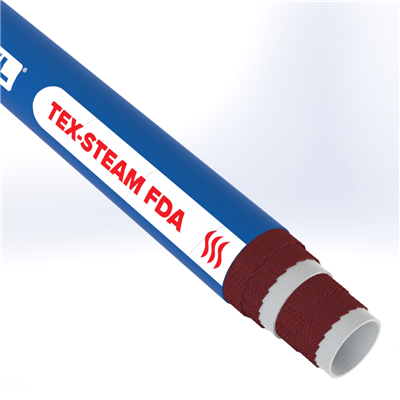

TEX-STEAM™ FDA Food Grade Steam Hose
A specially compounded steam hose suitable for the delivery of potable hot water mixed with steam and detergents.
1
What is this hose used for?
Mainly used for washdown and sterilization in the food industry and manufacturing plants. The white, smooth, food quality EPDM tube is paired with a blue, smooth, cloth-impression EPDM cover for abrasion, ozone and weather resistance. Meets FDA title 21, part 177.2600 for aqueous foods.
- Washdown
- Sterilization
- Food industry
- Manufacturing plants
⚠ CAUTION: Drain the hose after each use for maximum hose life. Do not alternate use between steam and water.
2
What are the key specifications?
Tube
White, EPDM
Cover
Blue, EPDM (smooth, cloth impression)
Reinforcement
High strength synthetic plies
Temperature Range
-40°F to +338°F
Safety Factor
10:1
Working Pressure
105 psi (7 bar)
Compliance
FDA and USDA compliant
Branding
TEXCEL® TEX-STEAM™ FDA STEAM HOSE 105 PSI (7 BAR) W.P TEMP. -40F TO 338F (-40C to 170C) 10:1 SAFETY FACTOR
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Weight (lbs/ft) |
|---|---|---|---|---|---|
| STFD-.5-100 | 1/2" | 60/64" | 100' | 105 | 0.25 |
| STFD-.75-100 | 3/4" | 1-14/64" | 100' | 105 | 0.39 |
| STFD-1.0-100 | 1" | 1-29/64" | 100' | 105 | 0.50 |
Texcel recommends using Dixon Valve and Coupling’s Boss™ Stainless Steel Ground Joint and 4-Bolt System for TEX-STEAM™ FDA. Please consult Dixon for proper coupling procedures.
It is recommended that all food grade hose be thoroughly flushed prior to initial use.
It is recommended that all food grade hose be thoroughly flushed prior to initial use.
