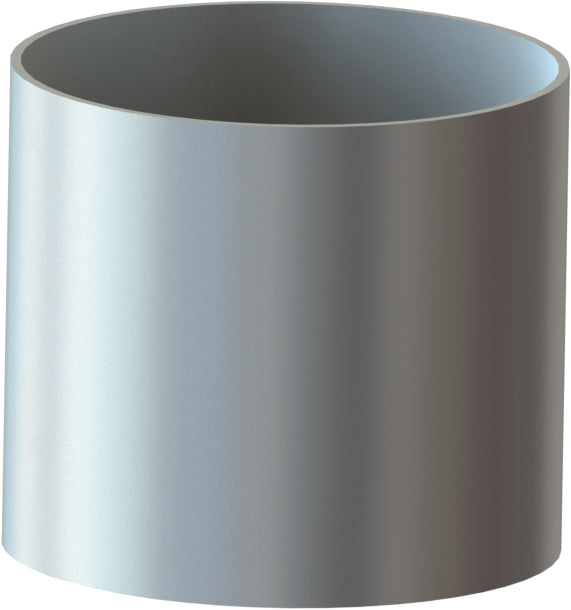

SSS250324 by Campbell Fittings | Sleeve | 2-1/2" Hose Size | 3-24/64" Sleeve I.D. | 304 Stainless Steel
by Campbell
Sleeves:for use with products of Campbell Cobra™ Parts C & E and Standard Cobra™ Parts C & E
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.82 |
| 40–79 | $17.02 |
| 80+ | $15.02 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
| CampbellCrimpnology™: | Crimpnology refers to all of the technology involved in crimping: The integrated design of every fitting, coupling, ferrule, and sleeve; the crimp procedures; crimp specifications; and crimp training & support. |
|---|---|
| Features and Benefits: | Crimpnology offers the following “7 Essentials” for crimping safe, repeatable, performance-rated hose systems:
|
| Performance Rated: | All Campbell pressure ratings are established and verified by hydrostatic testing to a 4x safety factor where applicable (see page 1 for pressure rating information). Test data and information regarding various combinations of hoses and fittings are available upon request.
|
| Part Number | Hose Size | Sleeve ID |
|---|---|---|
| SSS075104 | 3/4" | 1-4/64" |
| SSS075108 | 3/4" | 1-8/64" |
| SSS075112 | 3/4" | 1-12/64" |
| SSS075116 | 3/4" | 1-16/64" |
| SSS075124 | 3/4" | 1-24/64" |
| SSS100116 | 1" | 1-16/64" |
| SSS100120 | 1" | 1-20/64" |
| SSS100124 | 1" | 1-24/64" |
| SSS100128 | 1" | 1-28/64" |
| SSS100132 | 1" | 1-32/64" |
| SSS100136 | 1" | 1-36/64" |
| SSS100140 | 1" | 1-40/64" |
| SSS100144 | 1" | 1-44/64" |
| SSS100148 | 1" | 1-48/64" |
| SSS125156 | 1-1/4" | 1-56/64" |
| SSS125200 | 1-1/4" | 2" |
| SSS150152 | 1-1/2" | 1-52/64" |
| SSS150156 | 1-1/2" | 1-56/64" |
| SSS150160 | 1-1/2" | 1-60/64" |
| SSS150200 | 1-1/2" | 2" |
| SSS150204 | 1-1/2" | 2-4/64" |
| SSS150208 | 1-1/2" | 2-8/64" |
| SSS150212 | 1-1/2XX" | 2-12/64" |
| SSS150216 | 1-1/2" | 2-16/64" |
| SSS150220 | 1-1/2" | 2-20/64" |
| SSS150224 | 1-1/2" | 2-24/64" |
| SSS200216 | 2" | 2-16/64" |
| SSS200224 | 2" | 2-24/64" |
| SSS200228 | 2" | 2-28/64" |
| SSS200232 | 2" | 2-32/64" |
| SSS200236 | 2" | 2-36/64" |
| SSS200240 | 2" | 2-40/64" |
| SSS200244 | 2" | 2-44/64" |
| SSS200248 | 2" | 2-48/64" |
| SSS200252 | 2" | 2-52/64" |
| SSS200256 | 2" | 2-56/64" |
| SSS200260 | 2" | 2-60/64" |
| SSS200300 | 2" | 3" |
| SSS200302 | 2" | 3-2/64" |
| SSS250300 | 2-1/2" | 3" |
| SSS250308 | 2-1/2" | 3-8/64" |
| SSS250316 | 2-1/2" | 3-16/64" |
| SSS250324 | 2-1/2" | 3-24/64" |
| SSS250332 | 2-1/2" | 3-32/64" |
| SSS250334 | 2-1/2" | 3-34/64" |
| SSS300324 | 3" | 3-24/64" |
| SSS300328 | 3" | 3-28/64" |
| SSS300332 | 3" | 3-32/64" |
| SSS300336 | 3" | 3-36/64" |
| SSS300340 | 3" | 3-40/64" |
| SSS300344 | 3" | 3-44/64" |
| SSS300348 | 3" | 3-48/64" |
| SSS300352 | 3" | 3-52/64" |
| SSS300356 | 3" | 3-56/64" |
| SSS300360 | 3" | 3-60/64" |
| 3" | 4" | |
| 3" | 4-2/64" | |
| SSS400432 | 4" | 4-32/64" |
| SSS400436 | 4" | 4-36/64" |
| SSS400440 | 4" | 4-40/64" |
| SSS400444 | 4" | 4-44/64" |
| SSS400448 | 4" | 4-48/64" |
| SSS400452 | 4" | 4-52/64" |
| SSS400456 | 4" | 4-56/64" |
| 4" | 4-60/64" | |
| SSS400500 | 4" | 5" |
| SSS400502 | 4" | 5-2/64" |
| SSS600616 | 6" | 6-16/64" |
| SSS600624 | 6" | 6-24/64" |
| SSS600632 | 6" | 6-32/64" |
| SSS600640 | 6" | 6-40/64" |
| SSS600648 | 6" | 6-48/64" |
| SSS600656 | 6" | 6-56/64" |
| SSS600700 | 6" | 7" |
| SSS600708 | 6" | 7-8/64" |
| SSS600716 | 6" | 7-16/64" |
| SSS600724 | 8" | 7-24/64" |
| SSS800848 | 8" | 8-46/64" |
| SSS800900 | 9" | 9" |
