SSGC09-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 7/16x20 Thread Size JIC 37° Female Swivel | Straight | 316 Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — 316 Stainless Steel
SSGC09 Grip Crimp 316 Stainless Steel Coupling — JIC 37°, Female Swivel, Straight, 316 Stainless Steel
SSGC09 is the JIC 37°, Female Swivel, Straight, 316 Stainless Steel configuration of the Grip Crimp 316 Stainless Steel system, terminating braid hydraulic hose in corrosive service.
1
What are the main product features?
- Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
- Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
- Trivalent Zinc Plating
- 316 stainless steel throughout — for marine, chemical, wash-down and food service where plated steel corrodes.
- Bite to the wire — the same grip as the plated Grip Crimp couplings.
- No plating to wear through — corrosion resistance is the material, not a coating.
2
Which sizes are available?

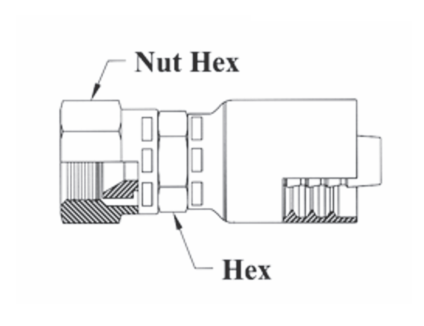

| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Nut Hex |
|---|---|---|---|---|---|
| SSGC09-4x4 | 1/4" | 7/16x20 | 1/4" | 9/16" | 9/16" |
| SSGC09-6x6 | 3/8" | 9/16x18 | 3/8" | 11/16" | 11/16" |
| SSGC09-8x8 | 1/2" | 3/4x16 | 1/2" | 7/8" | 7/8" |
| SSGC09-12x12 | 3/4" | 1-1/16x12 | 3/4" | 1-1/8" | 1-1/4" |
| SSGC09-16x16 | 1" | 1-5/16x12 | 1" | 1-3/8" | 1-1/2" |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
