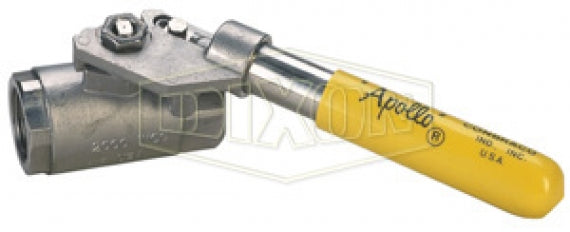

SSBV50SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Full Port | 1/2" Female NPT x 1/2" Female NPT | 316 Stainless Steel

SSBV50SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Full Port | 1/2" Female NPT x 1/2" Female NPT | 316 Stainless Steel

Sale price$285.05

Dixon Valve & Coupling
"Deadman" Spring Return Handle Ball Valve | 316 Stainless Steel
Buy More, Save More!
Quantity Price Each
5–14 $267.95
15–29 $242.29
30+ $213.79
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Material(s):
  • 316 Stainless Steel
Features:
  • Blow-out proof stem design.
  • Adjustable packing gland.
  • Spring return closes valve when not held open.
Materials:
  • 316 Stainless Steel
  • PTFE seal.
Specifications:
  • Operating torque approximately three times standard valve torque.
  • Pressure rating: 2000 PSI WOG 1/2" to 1"; 1500 PSI WOG 1-1/4" to 2".
  • 150 PSI saturated steam, all sizes.
  • Vacuum service to 29 inches Hg, all sizes.
Part Number Female NPT x Female NPT Port
SSBV50SR 1/2" Full
SSBV75SR 3/4" Standard
SSBV100SR 1" Standard
SSBV125SR 1-1/4" Standard
SSBV150SR 1-1/2" Standard
SSBV200SR 2" Standard
