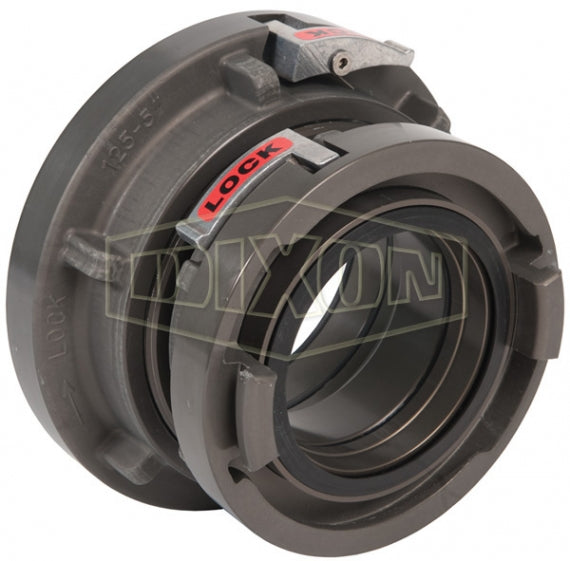

SSA5060 Dixon Aluminum 5" Storz x 6" Storz Adapter
Dixon Fire Fittings
Adapters - Storz x Storz Adapter - Forged Aluminum
- Machined from forged 6061- T6 aluminum.
- Hardcoat anodized components per MIL-A-8625 Type III Class 1.
- Buna-N gaskets.
- Cast aluminum lock lever assembly on 4", 5" and 6"
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $749.79 |
| 15–29 | $678.00 |
| 30+ | $598.24 |
Discounts applied in cart/checkout.
SSA5060 Dixon Aluminum 5" Storz x 6" Storz Adapter
Sale price$797.65
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Part Number | Storz Size | Storz Size | Working Pressure | Weight (Lbs.) |
|---|---|---|---|---|
| SSA1520 | 1-1/2" | 2" | 150 PSI | 1.1110 |
| SSA1525 | 1-1/2" | 2-1/2" | 150 PSI | 4.0360 |
| SSA2025 | 2" | 2-1/2" | 150 PSI | 1.7940 |
| SSA2030 | 2" | 3" | 150 PSI | 1.9900 |
| SSA2540 | 2-1/2" | 4" | 150 PSI | 3.6090 |
| SSA4050 | 4" | 5" | 150 PSI | 7.1750 |
| SSA4060 | 4" | 6" | 150 PSI | 7.4810 |
| SSA5060 | 5" | 6" | 150 PSI | 8.6970 |
