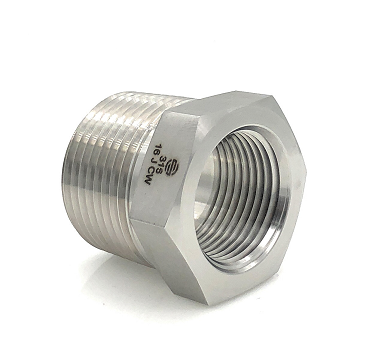

SS5406-16-08 by Midland | 1" Male NPT x 1/2" Female NPT | Bushing/Reducer | 316 Stainless Steel
Midland Industries
Stainless Adapter: Male NPT x Female NPT - Bushing/Reducer - 316 Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $26.89 |
| 40–79 | $24.32 |
| 80+ | $21.46 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | ||||
|---|---|---|---|---|
| SAI: 5606-X-X | SWAGELOK: SS-XRB-X | SSP: XXXRA | PARKER: XXXPTR-SS | AEROQUIP: 259-2081-X-X |
| Part Number | MNPT Size | FNPT Size | MNPT Thread | FNPT Thread | Length |
|---|---|---|---|---|---|
| SS5406-04-02 |
1/4" | 1/8" | 1/4-18 | 1/8-27 | 0.850" |
| SS5406-06-04 |
3/8" | 1/4" | 3/8-18 | 1/4-18 | 0.850" |
| SS5406-08-04 |
1/2" | 1/4" | 1/2-14 | 1/4-18 | 1.098" |
| SS5406-08-06 |
1/2" | 3/8" | 1/2-14 | 3/8-18 | 1.098" |
| SS5406-12-04 |
3/4" | 1/4" | 3/4-14 | 1/4-18 | 1.169" |
| SS5406-12-06 |
3/4" | 3/8" | 3/4-14 | 3/8-18 | 1.169" |
| SS5406-12-08 |
3/4" | 1/2" | 3/4-14 | 1/2-14 | 1.169" |
| SS5406-16-04 |
1" | 1/4" | 1-11-1/2 | 1/4-18 | 0.940" |
| SS5406-16-06 |
1" | 3/8" | 1-11-1/2 | 3/8-18 | 0.940" |
| SS5406-16-08 |
1" | 1/2" | 1-11-1/2 | 1/2-14 | 0.940" |
| SS5406-16-12 |
1" | 3/4" | 1-11-1/2 | 3/4-14 | 0.940" |
| SS5406-20-12 |
1-1/4" | 3/4" | 1-1/4-11-1/2 | 3/4-14 | 1.47" |
