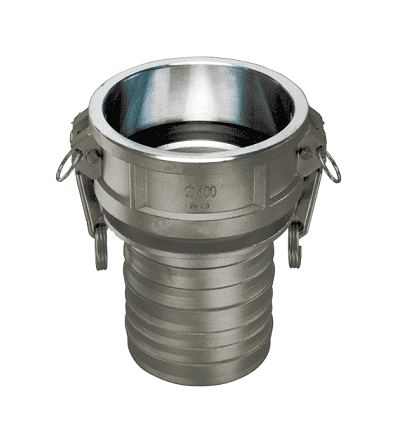

SS304-C050 by Kuriyama | Quick-Acting Coupling | Part C | 1/2" Female Coupler x 1/2" Hose Shank | 304 Stainless Steel

SS304-C050 by Kuriyama | Quick-Acting Coupling | Part C | 1/2" Female Coupler x 1/2" Hose Shank | 304 Stainless Steel

Sale price$20.39

Kuriyama Couplings™ - Quick-Acting Couplings - Part C - Female Coupler x Hose Shank - 304 Stainless

In stock
Buy More, Save More!
Quantity Price Each
10–39 $19.17
40–79 $17.33
80+ $15.29
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 1/2in Female Cam & Groove
  • 1/2in Hose Barb
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 304 Stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS304-C050 1/2 x 1/2" 0.30 lbs
SS304-C075 3/4" x 3/4" 0.46 lbs.
SS304-C100 1" x 1" 0.74 lbs.
SS304-C125 1-1/4" x 1-1/4" 1.41 lbs.
SS304-C150 1-1/2" x 1-1/2" 1.68 lbs.
SS304-C200 2" x 2" 2.30 lbs.
SS304-C250 2-1/2" x 2-1/2" 3.10 lbs.
SS304-C300 3" x 3" 4.12 lbs.
SS304-C400 4" x 4" 6.98 lbs.
SS304-C500 5" x 5" 10.32 lbs.
SS304-C600 6" x 6" 14.55 lbs.
