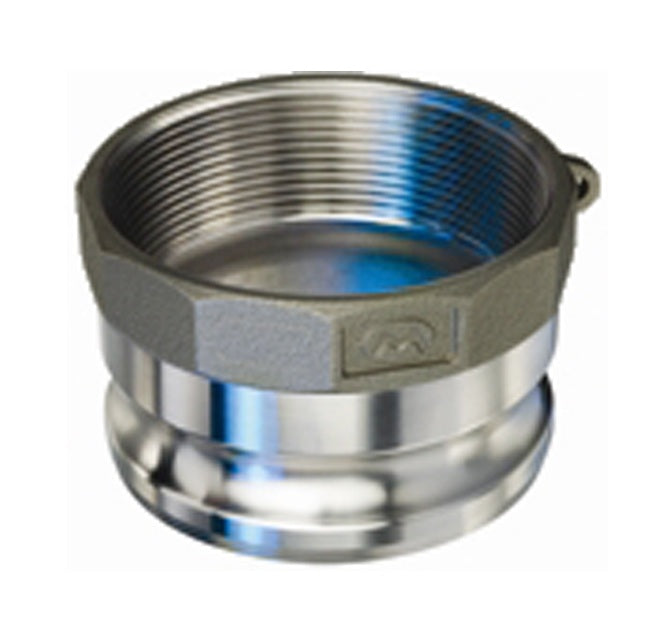

SS304-A125 by Kuriyama | SS304-A Series | Part A | Cam & Groove Adapter | 1-1/4" Adapter x 1-1/4" Female NPT | 304 Stainless Steel

SS304-A125 by Kuriyama | SS304-A Series | Part A | Cam & Groove Adapter | 1-1/4" Adapter x 1-1/4" Female NPT | 304 Stainless Steel

Sale price$21.03

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SS304-A Series | Part A | Adapter x Female NPT | 304 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Buy More, Save More!
Quantity Price Each
10–39 $19.77
40–79 $17.88
80+ $15.77
Discounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS304-A050 1/2" 250 PSI A666/304 0.20 lbs
SS304-A075 3/4" 250 PSI A666/304 0.26 lbs
SS304-A100 1" 250 PSI A666/304 0.34 lbs
SS304-A125 1-1/4" 250 PSI A666/304 0.62 lbs
SS304-A150 1-1/2" 250 PSI A666/304 0.80 lbs
SS304-A200 2" 250 PSI A666/304 1.12 lbs
SS304-A250 2-1/2" 150 PSI A666/304 1.76 lbs
SS304-A300 3" 150 PSI A666/304 2.16 lbs
SS304-A400 4" 150 PSI A666/304 2.88 lbs
SS304-A500 5" 75 PSI A666/304 4.30 lbs
SS304-A600 6" 75 PSI A666/304 6.00 lbs

Product Data:

Series:
  • SS304-A Series
MAWP:

250

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
