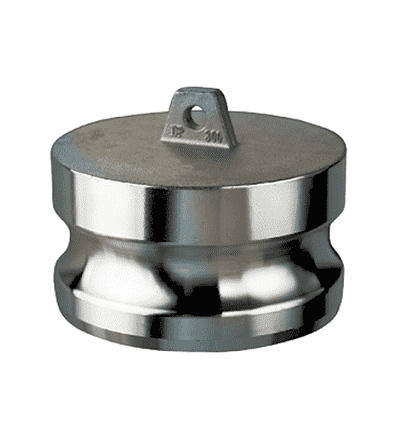

SS-DP500 by Kuriyama | Quick-Acting Coupling | Part DP | 5" Dust Plug | 316 Stainless Steel

SS-DP500 by Kuriyama | Quick-Acting Coupling | Part DP | 5" Dust Plug | 316 Stainless Steel

Sale price$197.50

Kuriyama Couplings™ - Quick-Acting Couplings - Part DP - Dust Plug - 316 Stainless Steel

Buy More, Save More!
Quantity Price Each
5–19 $185.65
20–59 $167.88
60+ $148.13
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DP

Ends Configuration:
  • 5in Female Cam & Groove
Material(s):
  • 316 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS-DP050 1/2" 0.15 lbs
SS-DP075 3/4" 0.20 lbs.
SS-DP100 1" 0.28 lbs.
SS-DP125 1-1/4" 0.60 lbs.
SS-DP150 1-1/2" 0.72 lbs.
SS-DP200 2" 0.96 lbs.
SS-DP250 2-1/2" 1.47 lbs.
SS-DP300 3" 1.94 lbs.
SS-DP400 4" 3.36 lbs.
SS-DP500 5" 6.24 lbs.
SS-DP600 6" 9.08 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
