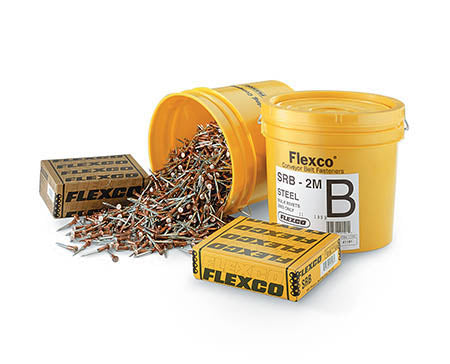

SRD-S by Flexco | #40545 | R5-1/2, R6, R8 Rivets | Stainless Steel | Box of 250

The Flexco® SR™ Rivet Hinged Fastening System has earned a reputation for quality and performance in the most demanding material handling applications on earth. Wherever belt conveyors are used, you need a fastener system that lets you set up, splice, and get out of the way... fast. Flexco SR fasteners deliver the performance, long life, and easy installation that maximize belt availability and help keep productivity on a roll.

Flexco Rivet Hinged Fasteners combine top and bottom fastener plates, which are joined at one end by two wide hinge loops. Each pair of plates sandwich the belt end and are secured to the belt with a staggered pattern of rivets. The rivets penetrate the belt without damaging or weakening the belt carcass providing maximum resistance to pull-out and evenly distributed splice tension across the width of the belt. No matter what the belt condition, Flexco SR fasteners are a good choice for both new and older, worn belts. Rivet hinged fasteners can be used on belts ranging from 1/8" to 1" (3 - 25 mm) after skive with pulley diameters over 5" (127 mm). Concerns about comparable vulcanized splice strength can be dismissed as rivet hinged fasteners have a long history of service on belts with mechanical fastener rating of up to 2000 P.I.W. (350 kN/m).

Applications:
Coal and Hard Rock, Underground and Surface Mining, Wood Processing, Asphalt Plants, Construction and Road Equipment
Features:
Self Setting. Pre-assembled with pilot nails.

Steel				Stainless Steel (Type 430)
Part Number	Fastener Size	Packaging		Part Number	Fastener Size	Packaging
SRA-100	R2, R5	Box of 100		SRA-S	R2, R5	Box of 250
SRB-100	R2, R5, R5-1/2	Box of 100		SRB-S	R2, R5, R5-1/2	Box of 250
SRC-100	R5, R5-1/2	Box of 100		SRC-S	R5, R5-1/2	Box of 250
SRA	R2, R5	Box of 250		SRC/D-S	R5, R5-1/2, R6, R8	Box of 250
SRB	R2, R5, R5-1/2	Box of 250		SRD-S	R5-1/2, R6, R8	Box of 250
SRC	R5, R5-1/2	Box of 250		SRE-S	R5-1/2, R6, R8	Box of 250
SRC/D	R5, R5-1/2, R6, R8	Box of 250		SRF-S	R5-1/2, R6, R8	Box of 250
SRD	R5-1/2, R6, R8	Box of 250		SRG-S	R5-1/2, R6, R8, R9	Box of 250
SRE	R5-1/2, R6, R8	Box of 250		SRH-S	R9	Box of 250
SRF	R5-1/2, R6, R8	Box of 250		SRI-S	R9	Box of 250
SRG	R5-1/2, R6, R8, R9	Box of 250		SRJ-S	R9	Box of 250
SRH	R9	Box of 250		SRK-S	R9	Box of 250
SRI	R9	Box of 250		SRA-S-2M	R5	Bucket of 2000
SRJ	R9	Box of 250		SRB-S-2M	R5, R5-1/2	Bucket of 2000
SRK	R9	Box of 250		SRC-S-2M	R5, R5-1/2	Bucket of 2000
SRA-2M	R2, R5	Bucket of 2000		SRC/D-S-2M	R5, R5-1/2, R6, R8	Bucket of 2000
SRB-2M	R2, R5, R5-1/2	Bucket of 2000		SRD-S-2M	R5-1/2, R6, R8	Bucket of 2000
SRC-2M	R5, R5-1/2	Bucket of 2000		SRE-S-2M	R5-1/2, R6, R8	Bucket of 2000
SRC/D-2M	R5, R5-1/2, R6, R8	Bucket of 2000		SRF-S-2M	R5-1/2, R6, R8	Bucket of 2000
SRD-2M	R5-1/2, R6, R8	Bucket of 2000		SRG-S-2M	R5-1/2, R6, R8, R9	Bucket of 2000
SRE-2M	R5-1/2, R6, R8	Bucket of 2000		SRH-S-2M	R9	Bucket of 2000
SRF-2M	R5-1/2, R6, R8	Bucket of 2000		SRI-S-2M	R9	Bucket of 2000
SRG-2M	R5-1/2, R6, R8, R9	Bucket of 2000		SRJ-S-2M	R9	Bucket of 2000
				SRK-S-2M	R9	Bucket of 2000

Rivets Selection Chart
Fastener Size	Belt Thickness Range		Rivet Size
	in	mm
R2	1/8" - 7/32"	3mm - 6mm	SRAA
	3/16" - 5/16"	4mm - 8mm	SRA
	9/32" - 3/8"	7mm - 10mm	SRB
R5	7/32" - 5/16"	6mm - 8mm	SRA
	9/32" - 3/8"	7mm - 10mm	SRB
	11/32" - 7/16"	9mm - 11mm	SRC
	13/32" - 7/16"	10.5mm - 11mm	SRC/D
R5-1/2	5/16" - 11/32"	8mm - 9mm	SRB
	5/16" - 13/32"	8mm - 10.5mm	SRC
	3/8" - 15/32"	10mm - 12mm	SRC/D
	7/16" - 17/32"	11mm - 13.5mm	SRD
	1/2" - 19/32"	13mm - 15mm	SRE
	9/16" - 21/32"	14mm - 16.5mm	SRF*
	5/8" - 23/32"	16mm - 18mm	SRG*
R6	13/32" - 7/16"	9mm - 11mm	SRC/D
	13/32" - 1/2"	10.5mm - 13mm	SRD
	15/32" - 9/16"	12mm - 14mm	SRE
	17/32" - 5/8"	13.5mm - 16mm	SRF
	19/32" - 11/16"	15mm - 17mm	SRG
R8	13/32" - 7/16"	10.5mm - 11mm	SRC/D
	13/32" - 1/2"	10.5mm - 13mm	SRD
	15/32" - 9/16"	12mm - 14mm	SRE
	17/32" - 5/8"	13.5mm - 16mm	SRF
	19/32" - 11/16"	15mm - 17mm	SRG
R9	19/32" - 11/16"	16mm - 17mm	SRG
	21/32" - 3/4"	16.5mm - 19mm	SRH
	23/32" - 13/16"	18mm - 21mm	SRI
	25/32"- 7/8"	20mm - 22mm	SRJ**
	27/32" - 15/16"	21mm - 24mm	SRK**

* Applies to RAR6LP only.
** Use with 3/4" diameter hinge pin.

Number of Required Rivets Chart
Number of Rivets Required for One R2 Joint				Number of Rivets Required for One R5, R5-1/2, R6 Joint				Number of Rivets Required for One R8, R9 Joint
Belt Width		Rivets Required		Belt Width		Rivets Required		Belt Width		Rivets Required
in	mm			in	mm			in	mm
12"	300mm	24		18"	450mm	100		48"	1200mm	432
18"	450mm	40		24"	600mm	130		54"	1350mm	480
24"	600mm	52		30"	750mm	160		60"	1500mm	544
30"	750mm	64		36"	900mm	200		72"	1800mm	656
36"	900mm	80		42"	1050mm	230		84"	2130mm	768
42"	1050mm	92		48"	1200mm	270
48"	1200mm	108		54"	1350mm	300
54"	1350mm	120		60"	1500mm	340
60"	1500mm	136		72"	1800mm	410
				84"	2130mm	480
