SPZ812 by Bestorq | Metric Wrapped V-Belt | SPZ Section | 825mm O.C.
Bestorq

SPZ812 by Bestorq | Metric Wrapped V-Belt | SPZ Section | 825mm O.C.

Minimum Order Quantity: 5 Units

Sale price$8.94
Metric V-Belts - SPZ Style

Product Data:

Series:
  • Metric Wrapped V-Belt
Overview:
  • Single, wrapped V-belts give premium belt performance. The belts are constructed of highly engineered, high performance components. The components are manufactured using the latest in belt technologyavailable on a global basis.
  • All belts of a size are manufactured to run as a matched set, i.e. any 8V2000 belt will run as a matched set with any other 8V2000 belt.
Features:
  • The outer fabric wrap is treated with highly oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing.
  • The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. Testing has proven that the tensile decay properties of the cord are truly World Class.
  • The body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords
Specifications:
  • The belts exceed USA RMA published ratings levels. They are designed to perform at the identical or higher level than all other major USA Manufacturer's belts of the same type. All 3L, A or 4L, B or 5L, C, D, 3V, 5V and 8V belts are manufactured to meet RMA standards for length and dimensions. All belts of a given size are manufactured to run interchangeably in a matched set. (SPZ, SPA, SPB, SPC, 9J, 15J, and 25J belts are manufactured to fit ISO standard dimension multi-groove pulleys.)

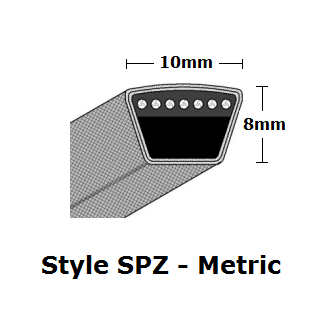

Part Number Top Width
(mm)		 Thickness
(mm) 		Angle Outside Circumference (O.C.)
(mm)
SPZ562 10mm 8mm 40 575mm
SPZ812 10mm 8mm 40 825mm
SPZ850 10mm 8mm 40 863mm
SPZ875 10mm 8mm 40 888mm
SPZ900 10mm 8mm 40 913mm
SPZ950 10mm 8mm 40 963mm
SPZ1012 10mm 8mm 40 1025mm
SPZ1037 10mm 8mm 40 1050mm
SPZ1077 10mm 8mm 40 1090mm
SPZ1080 10mm 8mm 40 1093mm
SPZ1148 10mm 8mm 40 1161mm
SPZ1220 10mm 8mm 40 1233mm
SPZ1287 10mm 8mm 40 1300mm
SPZ1312 10mm 8mm 40 1325mm
SPZ1320 10mm 8mm 40 1333mm
SPZ1412 10mm 8mm 40 1425mm
SPZ1500 10mm 8mm 40 1513mm
SPZ1587 10mm 8mm 40 1600mm
SPZ1900 10mm 8mm 40 1913mm
SPZ2120 10mm 8mm 40 2133mm
SPZ2500 10mm 8mm 40 2513mm
SPZ2650 10mm 8mm 40 2663mm
SPZ2800 10mm 8mm 40 2813mm
SPZ3000 10mm 8mm 40 3013mm
SPZ3150 10mm 8mm 40 3163mm
SPZ3350 10mm 8mm 40 3363mm
SPZ3550 10mm 8mm 40 3563mm
