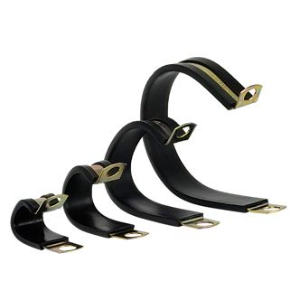

SPW-08 by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diamter: 1/2" | Plated Steel
Minimum Order Quantity: 5 Units
Foster
SPW Loop Clamps | Plated Steel 3/4" (19mm) Wide
Product Data:
Series:
Material(s):
Clamp Width:
[".75""]
Maximum Clamp I.D.:
["0.5""]
| Features: | |||
|---|---|---|---|
|
| Plated Steel Part Number | Clamp ID | L | F |
|---|---|---|---|
| SPW-04 | 1/4" | 0.639" | 0.031" |
| SPW-06 | 5/16" | 0.681" | 0.031" |
| SPW-07 | 7/16" | 0.702" | 0.031" |
| SPW-08 | 1/2" | 0..764" | 0.031" |
| SPW-09 | 9/16" | 0.795" | 0.031" |
| SPW-10 | 5/8" | 0.827" | 0.031" |
| SPW-12 | 3/4" | 0.889" | 0.031" |
| SPW-14 | 7/8" | 0.952" | 0.031" |
| SPW-16 | 1" | 1.014" | 0.031" |
| SPW-18 | 1-1/8" | 1.090" | 0.031" |
| SPW-20 | 1-1/4" | 1.159" | 0.050" |
| SPW-24 | 1-1/2" | 1.284" | 0.050" |
| SPW-26 | 1-5/8" | 1.346" | 0.050" |
| SPW-28 | 1-3/4" | 1.409" | 0.050" |
| SPW-30 | 1-7/8" | 1.471" | 0.050" |
| SPW-32 | 2" | 1.534" | 0.050" |
| SPW-36 | 2-1/4" | 1.659" | 0.050" |
| SPW-40 | 2-1/2" | 1.784" | 0.050" |
| SPW-48 | 3" | 2.034" | 0.050" |
