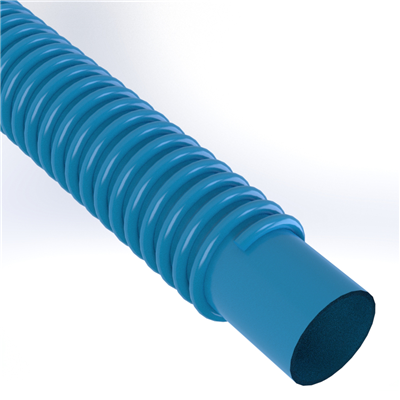

SPVC-URE-HD-5.0-100 by Texcel | SIGMA-URE HD BLUE™ Series | Heavy-Duty Polyurethane Material Handling Hose | 5" Hose ID | 35 PSI | 28 in/Hg Vacuum Rated | Blue
SIGMA by Texcel
URE HD BLUE™ Series | Heavy-Duty Polyurethane Material Handling Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $62.27 |
| 40–79 | $56.30 |
| 80+ | $52.99 |
Discounts applied in cart/checkout.
| Technical Data: | |||
|---|---|---|---|
| Description: | Premium-quality, material handling hose designed with a thick, heavy-duty, smooth polyurethane lining. Ideal for dry applications where high abrasion resistance is required, as well as flexibility in sub-zero temperatures | Construction: | Clear, thick, heavy-duty, smooth, polyurethane lining with a blue, HMW PVC, formulated for static dissipation and a rigid PVC, right-handed helix |
| Safety Factor: | 3:1 | Temperature: | -40°F to +158°F |
| Branding: | TEXCEL® SIGMA-URE-HD BLUE™ - HEAVY DUTY MATERIAL HANDLING HOSE -LOT | Compared To: | Ureflex-2 |
| Safety Note: | Flexibility in sub-zero temperature Service temperature depends on actual application |
||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft |
|---|---|---|---|---|---|---|
| SPVC-URE-HD-2.0-100 | 2" | 2.43" | 40 | 29 | 4" | 0.59 lbs |
| SPVC-URE-HD-3.0-100 | 3" | 3.70" | 40 | 29 | 6" | 1.23 lbs |
| SPVC-URE-HD-4.0-100 | 4" | 4.80" | 35 | 29 | 10" | 2.02 lbs |
| SPVC-URE-HD-5.0-100 | 5" | 5.80" | 35 | 28 | 15" | 2.57 lbs |
| SPVC-URE-HD-6.0-100 | 6" | 6.87" | 30 | 28 | 18" | 3.84 lbs |
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
