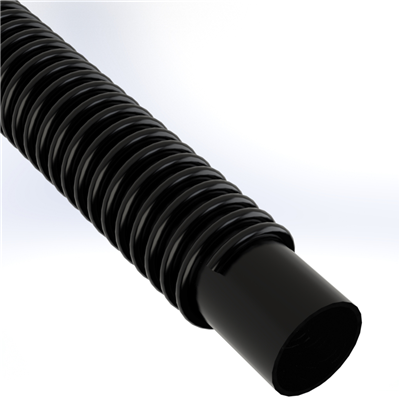

SPVC-URE-B-2.0-100 by Texcel | SIGMA-URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover | 2" Hose ID | 40 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length
Package Quantity: 100 Feet
Buy more, save moreDiscounts applied in cart/checkout.
Material Handling Hose
SIGMA-URE-B™ Polyurethane Material Handling Hose
Abrasion-resistant polyurethane tube for material handling in dry applications.
1
What is this hose used for?
Used in dry applications such as sandblast recovery lines, roof rock cleaning and other abrasive applications. The static-dissipating material remains flexible at low temperatures for ease of handling.
- Sandblast recovery lines
- Roof rock cleaning
- Abrasive applications
2
What are the key specifications?
Construction
Black, flexible PVC and smooth with black, rigid, right-handed helix and smooth polyurethane liner
Temperature Range
-40°F to +150°F (service temperature depends on actual application)
Safety Factor
3:1
Compares To
UBK
3
What are the main product features?
- Static-dissipating
- Flexible at low temperatures
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| SPVC-URE-B-2.0-100 | 2" | 2.40" | 100' | 40 | 29 | 2" | 0.51 |
| SPVC-URE-B-2.5-100 | 2-1/2" | 3.10" | 100' | 40 | 29 | 4" | 0.77 |
| SPVC-URE-B-3.0-100 | 3" | 3.55" | 100' | 40 | 29 | 4" | 0.87 |
| SPVC-URE-B-4.0-100 | 4" | 4.68" | 100' | 35 | 29 | 6" | 1.55 |
| SPVC-URE-B-5.0-100 | 5" | 5.71" | 100' | 30 | 28 | 10" | 2.30 |
| SPVC-URE-B-6.0-100 | 6" | 7.05" | 100' | 30 | 28 | 12" | 3.40 |
| SPVC-URE-B-8.0-20 | 8" | 9.05" | 20' | 30 | 28 | 15" | 4.88 |
