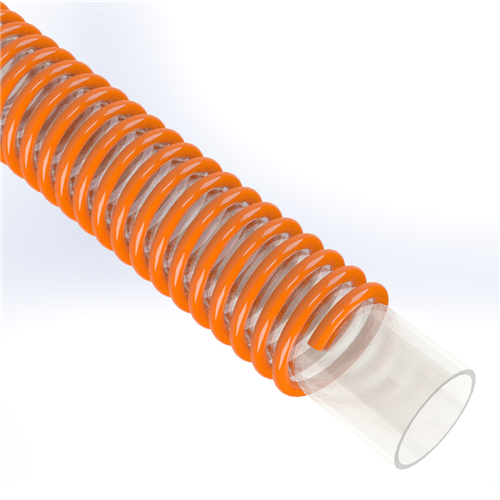

SPVC-PU-4.0-100 by Texcel | SIGMA-POLY-U™ Series | Lightweight Polyurethane Hose | 4" Hose ID | 7 PSI | 13 in/Hg Vacuum Rated | Clear w/ Orange Helix
Buy more, save moreDiscounts applied in cart/checkout.
Material Handling Hose
SIGMA-POLY-U™ Lightweight Polyurethane Hose
Extremely flexible, lightweight hose whose smooth bore polyurethane tube allows for high abrasion resistance and unrestricted flow.
1
What is this hose used for?
Ideal for leaf collection, mulch blowing, straw blowing, wood chips, saw dust, lawn cleaning and concrete surface preparation equipment.
- Leaf collection
- Mulch blowing
- Straw blowing
- Wood chips
- Saw dust
- Lawn cleaning
- Concrete surface preparation
2
What are the key specifications?
Construction
Clear polyurethane (ether-based) with an exposed orange, rigid PVC, right-handed helix
Temperature Range
-4°F to +150°F (service temperature depends on actual application)
Safety Factor
3:1
Standard Lengths
50' and 100'
Compares To
Urevac-1 / 150 UDH
Branding
TEXCEL® SIGMA-POLY U™ - LIGHTWEIGHT POLYURETHANE HOSE - LOT
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| SPVC-PU-1.5-50 | 1-1/2" | 1.91" | 50' | 20 | 22 | 1" | 0.23 |
| SPVC-PU-2.0-50 | 2" | 2.46" | 50' | 15 | 21 | 1.5" | 0.32 |
| SPVC-PU-2.5-50 | 2-1/2" | 3.01" | 50' | 9 | 19 | 1.5" | 0.34 |
| SPVC-PU-3.0-50 | 3" | 3.60" | 50' | 8 | 19 | 2.5" | 0.48 |
| SPVC-PU-4.0-100 | 4" | 4.72" | 100' | 7 | 13 | 3" | 0.70 |
| SPVC-PU-5.0-100 | 5" | 5.94" | 100' | 6 | 10 | 4" | 0.89 |
| SPVC-PU-6.0-50 | 6" | 7.17" | 50' | 5 | 7 | 5" | 1.15 |
| SPVC-PU-8.0-50 | 8" | 9.33" | 50' | 3 | 5 | 7" | 1.65 |
