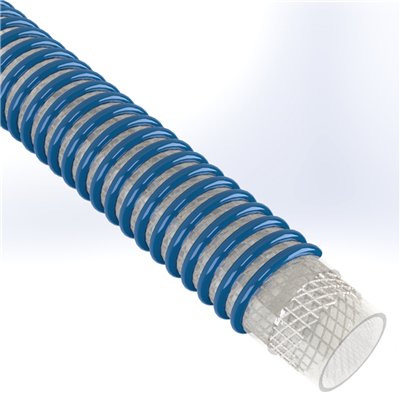

SPVC-MHH-4.0 by Texcel | SIGMA-POLY MHH™ Series | Polyurethane Food-Grade Suction & Discharge Hose | 4" Hose ID | 75 PSI | 29 in/Hg Vacuum Rated | Blue
SIGMA by Texcel
POLY MHH™ Series | Polyurethane Food-Grade Suction & Discharge Hose
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $56.27 |
| 4–9 | $53.87 |
| 10+ | $47.89 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Special Properties:
| Technical Data: | |||
|---|---|---|---|
| Description: | Heavy-duty construction that complies with all applicable FDA requirements. Clear polyurethane and blue PVC helix construction allows for visual confirmation of material flow. Smooth bore construction eliminates material build up. Yarn reinforced for discharge applications. Heavy corrugation provides extra flexibility. Embedded wire prevents static electricity build up. | Construction: | Clear, flexible polyurethane with a blue, tough vinyl right-handed helix; synthetic yarn reinforcement, embedded copper wire for grounding; static wire |
| Safety Factor: | 3:1 | Temperature: | -40°F to +150°F |
| Branding: | TEXCEL® SIGMA-PVC MHH™ - POLYURETHANE FOOD GRADE SUCTION / DISCHARGE HOSE - |
Safety Note: | Grounding wire must be properly terminated at both ends in order to dissipate static electricity. It is recommended that all food grade hose be thoroughly flushed prior to initial use |
| Features: | FDA and USDA compliant, Phthalate Free | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| SPVC-MHH-3.0 | 3" | 3.78" | 100 | 29 | 10" | 1.18 |
| SPVC-MHH-4.0 | 4" | 4.85" | 75 | 29 | 12" | 1.58 |
| SPVC-MHH-5.0 | 5" | 5.80" | 70 | 28 | 14" | 2.47 |
| SPVC-MHH-6.0 | 6" | 6.93" | 70 | 28 | 14" | 2.86 |
