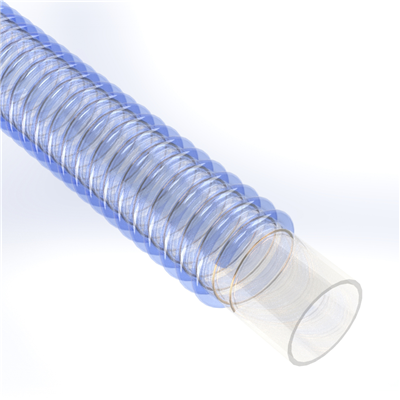

SPVC-FD-6.0-100- by Texcel | SIGMA-FD™ Series | FDA PVC Food-Grade Suction Hose | 6" Hose ID | 30 PSI | 25 in/Hg Vacuum Rated | Blue
SIGMA by Texcel
FD™ Series | FDA PVC Food-Grade Suction Hose
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $576.66 |
| 4–9 | $552.12 |
| 10+ | $490.78 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Special Properties:
| Technical Data: | |||
|---|---|---|---|
| Description: | Heavy-duty, food-grade suction hose for dry/wet material applications. Hose complies with applicable FDA and 3A requirements as well as USDA for use in meat and poultry plants. Clear PVC and clear helix construction allows for visual confirmation of material flow. Smooth bore eliminates material build up. Heavy corrugation provides high flexibility. | Construction: | Corrugated, clear, flexible PVC with smooth bore and a rigid, clear PVC, right-handed helix |
| Safety Factor: | 3:1 | Temperature: | -4°F to +150°F |
| Branding: | TEXCEL® SIGMA-FD™ - FOOD GRADE SUCTION HOSE - |
Compared To: | WT/200 SFG |
| Safety Note: | Service temperature depends on actual application It is recommended that all food grade hose be thoroughly flushed prior to initial use |
Features: | FDA, USDA and 3A compliant. Phthalate Free |
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|---|
| SPVC-FD-1.5-100 | 1-1/2" | 1.82" | 100' | 45 | 29 | 2.5" | 0.35 lbs |
| SPVC-FD-2.0-100 | 2" | 2.35" | 100' | 40 | 29 | 3" | 0.50 lbs |
| SPVC-FD-2.5-100 | 2-1/2" | 2.87" | 100' | 35 | 29 | 5" | 0.68 lbs |
| SPVC-FD-3.0-100 | 3" | 3.50" | 100' | 35 | 29 | 6" | 1.02 lbs |
| SPVC-FD-4.0-100 | 4" | 4.63" | 100' | 30 | 29 | 8" | 1.52 lbs |
| SPVC-FD-5.0-100 | 5" | N/A | 100' | N/A | N/A | N/A | N/A |
| SPVC-FD-6.0-100 | 6" | 6.73" | - | 30 | 25 | 12" | 3.05 lbs |
| SPVC-FD-8.0-20 | 8" | 9.04" | 20' | 20 | 25 | 16" | 5.32 lbs |
