SPVC-AQUA-8.0-50 by Texcel | SIGMA-PVC AQUA™ Series | Water Suction Hose | 8" Hose ID | 70 PSI | 28 in/Hg Vacuum Rated | Clear/Orange
Buy more, save moreDiscounts applied in cart/checkout.
Water Hose
SIGMA-PVC AQUA™ Water Suction Hose
Heavy-duty suction and discharge hose for use in a variety of industries, such as rental pumping equipment.
1
What is this hose used for?
Suited to applications where the hose needs to slide easily, or where visual confirmation of material flow is necessary.
- Rental pumping equipment
- Water suction
- Water discharge
2
What are the key specifications?
Construction

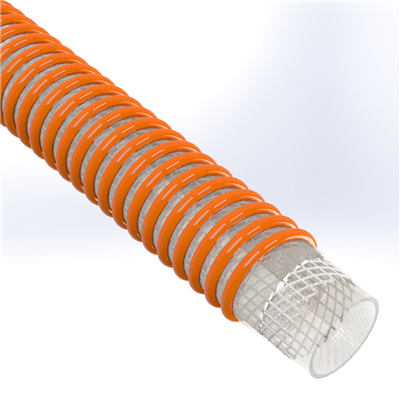

Clear, flexible PVC with synthetic yarn and an orange, rigid PVC, right-handed helix
Temperature Range
-4°F to +150°F (service temperature depends on actual application)
Safety Factor
3:1
Vacuum Rating
28 in. Hg
Compares To
SR/WST
Branding
TEXCEL® SIGMA-PVC AQUA™ - WATER SUCTION HOSE - XXXPSI WP - LOT
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| SPVC-AQUA-1.5-100 | 1-1/2" | 2.03" | 100 | 28 | 3" | 0.47 |
| SPVC-AQUA-2.0-100 | 2" | 2.62" | 100 | 28 | 4" | 0.71 |
| SPVC-AQUA-3.0-100 | 3" | 3.71" | 100 | 28 | 6" | 1.14 |
| SPVC-AQUA-4.0-100 | 4" | 4.80" | 75 | 28 | 7" | 1.75 |
| SPVC-AQUA-5.0-100 | 5" | 6.05" | 70 | 28 | 9" | 3.00 |
| SPVC-AQUA-6.0-100 | 6" | 7.17" | 70 | 28 | 10" | 3.90 |
| SPVC-AQUA-8.0-50 | 8" | 9.33" | 70 | 28 | 16" | 5.56 |
| SPVC-AQUA-10.0-25 | 10" | 10.86" | 40 | 28 | 25" | 8.68 |
