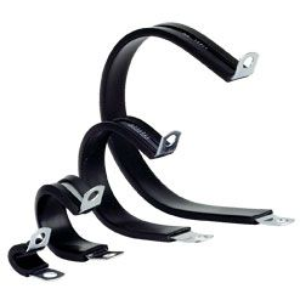

SPN-52SS by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diameter: 3-1/4" | Stainless Steel
SPN-52SS by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diameter: 3-1/4" | Stainless Steel
ZSi-Foster

SPN-52SS by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diameter: 3-1/4" | Stainless Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Light to medium duty steel clamp
  • E.P.D.M. cushion for electrical insulation and vibration absorption
  • Steel clamps are zinc electroplated for corrosion resistance
  • Some sizes available in aluminum. Contact factory for details.
  • Temperature range -50°F to +275°F (-45°C to 135°C)

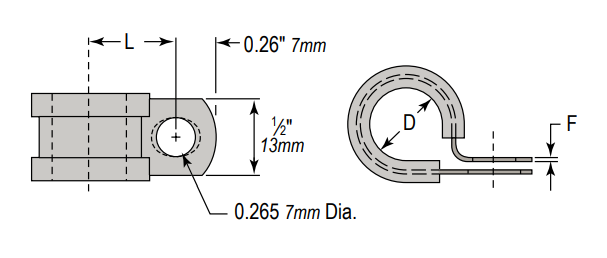

Plated Steel Part Number Stainless Steel Part Number Clamp ID (D) L F
SPN-03 SPN-03SS 3/16" 0.499" .032"
SPN-04 SPN-04SS 1/4" 0.530" .032"
SPN-05 SPN-05SS 5/16" 0.561" .032"
SPN-06 SPN-06SS 3/8" 0.592" .032"
SPN-07 SPN-07SS 7/16" 0.623" .032"
SPN-08 SPN-08SS 1/2" 0.654" .032"
SPN-09 SPN-09SS 9/16" 0.749" .032"
SPN-10 SPN-10SS 5/8" 0.780" .032"
SPN-11 SPN-11SS 11/16" 0.811" .032"
SPN-12 SPN-12SS 3/4" 0.840" .032"
SPN-14 SPN-14SS 7/8" 0.889" .032"
SPN-16 SPN-16SS 1" 0.952" .032"
SPN-18 SPN-18SS 1-1/8" 1.093" .032"
SPN-20 SPN-20SS 1-1/4" 1.155" .032"
SPN-22 SPN-22SS 1-3/8" 1.218" .032"
SPN-24 SPN-24SS 1-1/2" 1.220" .032"
SPN-26 SPN-26SS 1-5/8" 1.280" .032"
SPN-28 SPN-28SS 1-3/4" 1.343" .032"
SPN-30 SPN-30SS 1-7/8" 1.405" .032"
SPN-32 SPN-32SS 2" 1.476" .040"
SPN-34 SPN-34SS 2-1/8" 1.538" .040"
SPN-36 SPN-36SS 2-1/4" 1.661" .040"
SPN-38 SPN-38SS 2-3/8" 1.728" .040"
SPN-40 SPN-40SS 2-1/2" 1.762" .040"
SPN-42 SPN-42SS 2-5/8" 1.800" .040"
SPN-48 SPN-48SS 3" 1.968" .040"
SPN-52 SPN-52SS 3-1/4" 2.093" .040"
SPN-56 SPN-56SS 3-1/2" 2.226" .040"
SPN-64 SPN-64SS 4" 2.476" .040"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
