SPB2650 by Bestorq | Metric Wrapped V-Belt | SPB Section | 2672mm O.C.
Bestorq

SPB2650 by Bestorq | Metric Wrapped V-Belt | SPB Section | 2672mm O.C.

Sale price$50.94
Metric V-Belts - SPB Style

Product Data:

Series:
  • Metric Wrapped V-Belt

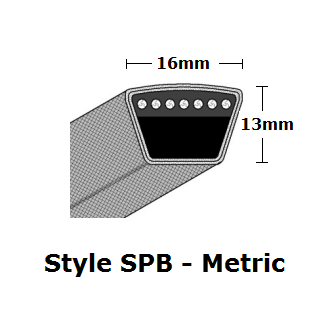

Belt Cross Section:

SPB

Belt Width:

16mm
Overview:
  • Single, wrapped V-belts give premium belt performance. The belts are constructed of highly engineered, high performance components. The components are manufactured using the latest in belt technologyavailable on a global basis.
  • All belts of a size are manufactured to run as a matched set, i.e. any 8V2000 belt will run as a matched set with any other 8V2000 belt.
Features:
  • The outer fabric wrap is treated with highly oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing.
  • The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. Testing has proven that the tensile decay properties of the cord are truly World Class.
  • The body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords
Specifications:
  • The belts exceed USA RMA published ratings levels. They are designed to perform at the identical or higher level than all other major USA Manufacturer's belts of the same type. All 3L, A or 4L, B or 5L, C, D, 3V, 5V and 8V belts are manufactured to meet RMA standards for length and dimensions. All belts of a given size are manufactured to run interchangeably in a matched set. (SPZ, SPA, SPB, SPC, 9J, 15J, and 25J belts are manufactured to fit ISO standard dimension multi-groove pulleys.)

Part Number Top Width
(mm)		 Thickness
(mm) 		Angle Outside Circumference (O.C.)
(mm)
SPB1440 16mm 13mm 40 1462mm
SPB1800 16mm 13mm 40 1822mm
SPB1850 16mm 13mm 40 1872mm
SPB1860 16mm 13mm 40 1882mm
SPB1900 16mm 13mm 40 1922mm
SPB1950 16mm 13mm 40 1972mm
SPB2000 16mm 13mm 40 2022mm
SPB2060 16mm 13mm 40 2082mm
SPB2120 16mm 13mm 40 2142mm
SPB2180 16mm 13mm 40 2202mm
SPB2200 16mm 13mm 40 2222mm
SPB2240 16mm 13mm 40 2262mm
SPB2500 16mm 13mm 40 2522mm
SPB2530 16mm 13mm 40 2552mm
SPB2650 16mm 13mm 40 2672mm
SPB2680 16mm 13mm 40 2702mm
SPB2800 16mm 13mm 40 2822mm
SPB2900 16mm 13mm 40 2922mm
SPB2990 16mm 13mm 40 3012mm
SPB3000 16mm 13mm 40 3022mm
SPB3100 16mm 13mm 40 3122mm
SPB3150 16mm 13mm 40 3172mm
SPB3280 16mm 13mm 40 3302mm
SPB3350 16mm 13mm 40 3372mm
SPB3450 16mm 13mm 40 3472mm
SPB3550 16mm 13mm 40 3572mm
SPB3600 16mm 13mm 40 3622mm
SPB3650 16mm 13mm 40 3672mm
SPB3750 16mm 13mm 40 3772mm
SPB3800 16mm 13mm 40 3822mm
SPB3825 16mm 13mm 40 3847mm
SPB3870 16mm 13mm 40 3892mm
SPB4000 16mm 13mm 40 4022mm
SPB4120 16mm 13mm 40 4142mm
SPB4250 16mm 13mm 40 4272mm
SPB4370 16mm 13mm 40 4392mm
SPB4500 16mm 13mm 40 4522mm
SPB4620 16mm 13mm 40 4642mm
SPB4750 16mm 13mm 40 4772mm
SPB4820 16mm 13mm 40 4842mm
SPB5000 16mm 13mm 40 5022mm
SPB5300 16mm 13mm 40 5322mm
SPB5450 16mm 13mm 40 5472mm
SPB5600 16mm 13mm 40 5622mm
SPB5900 16mm 13mm 40 5922mm
SPB6000 16mm 13mm 40 6022mm
SPB6300 16mm 13mm 40 6322mm
SPB6700 16mm 13mm 40 6722mm
SPB7100 16mm 13mm 40 7122mm
SPB7500 16mm 13mm 40 7522mm
SPB8000 16mm 13mm 40 2150mm

Bestorq

Bestorq provides energy saving and extreme long life power transmission belts. Bestorq has highest quality, best customer service, and best delivery. The Bestorq history is as a high quality manufacturer of power transmission belts in non-HVAC channels. This made it natural to expand this great success into the air handling marketplace. Bestorq offers great wages, great benefits and great opportunities, finding and retaining the highest quality employees.
