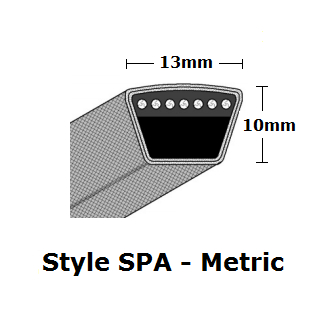

SPA2682 by Bestorq | Metric Wrapped V-Belt | SPA Section | 2700mm O.C.
Bestorq

SPA2682 by Bestorq | Metric Wrapped V-Belt | SPA Section | 2700mm O.C.

Sale price$32.67
Metric V-Belts - SPA Style

Product Data:

Series:
  • Metric Wrapped V-Belt
Overview:
  • Single, wrapped V-belts give premium belt performance. The belts are constructed of highly engineered, high performance components. The components are manufactured using the latest in belt technology available on a global basis.
  • All belts of a size are manufactured to run as a matched set, i.e. any 8V2000 belt will run as a matched set with any other 8V2000 belt.
Features:
  • The outer fabric wrap is treated with highly oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing.
  • The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. Testing has proven that the tensile decay properties of the cord are truly World Class.
  • The body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords
Specifications:
  • The belts exceed USA RMA published ratings levels. They are designed to perform at the identical or higher level than all other major USA Manufacturer's belts of the same type. All 3L, A or 4L, B or 5L, C, D, 3V, 5V and 8V belts are manufactured to meet RMA standards for length and dimensions. All belts of a given size are manufactured to run interchangeably in a matched set. (SPZ, SPA, SPB, SPC, 9J, 15J, and 25J belts are manufactured to fit ISO standard dimension multi-groove pulleys.)

Part Number Top Width
(mm)		 Thickness
(mm) 		Angle Outside Circumference (O.C.)
(mm)
SPA1500 13mm 10mm 40 1518mm
SPA1600 13mm 10mm 40 1618mm
SPA1662 13mm 10mm 40 1680mm
SPA1850 13mm 10mm 40 1868mm
SPA2082 13mm 10mm 40 2100mm
SPA2532 13mm 10mm 40 2250mm
SPA2580 13mm 10mm 40 2598mm
SPA2582 13mm 10mm 40 2600mm
SPA2607 13mm 10mm 40 2625mm
SPA2650 13mm 10mm 40 2668mm
SPA2682 13mm 10mm 40 2700mm
SPA2732 13mm 10mm 40 2750mm
SPA2782 13mm 10mm 40 2800mm
SPA2800 13mm 10mm 40 2818mm
SPA2832 13mm 10mm 40 2850mm
SPA2882 13mm 10mm 40 2900mm
SPA2982 13mm 10mm 40 3000mm
SPA3000 13mm 10mm 40 3018mm
SPA3070 13mm 10mm 40 3088mm
SPA3082 13mm 10mm 40 3100mm
SPA3150 13mm 10mm 40 3168mm
SPA3182 13mm 10mm 40 3200mm
SPA3282 13mm 10mm 40 3300mm
SPA3350 13mm 10mm 40 3368mm
SPA3482 13mm 10mm 40 3500mm
SPA3550 13mm 10mm 40 3568mm
SPA3750 13mm 10mm 40 3768mm
SPA4000 13mm 10mm 40 4018mm
SPA4250 13mm 10mm 40 4268mm
SPA4500 13mm 10mm 40 4518mm

Bestorq

Bestorq provides energy saving and extreme long life power transmission belts. Bestorq has highest quality, best customer service, and best delivery. The Bestorq history is as a high quality manufacturer of power transmission belts in non-HVAC channels. This made it natural to expand this great success into the air handling marketplace. Bestorq offers great wages, great benefits and great opportunities, finding and retaining the highest quality employees.
