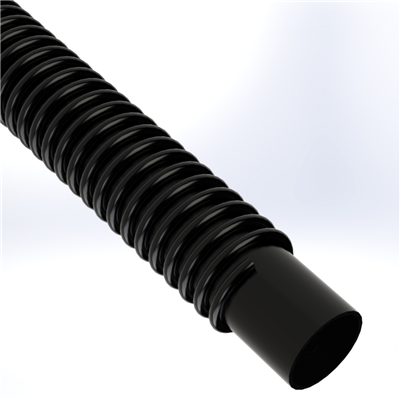

SP-VAC-3.0-100 by Texcel | SIGMA-ULTRAVAC™ Series | Polyurethane Vacuum Hose | 3" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length
Package Quantity: 100 Feet
Buy more, save moreDiscounts applied in cart/checkout.
Material Handling Hose
SIGMA-ULTRAVAC™ Polyurethane Vacuum Hose
Heavy-duty, abrasion-resistant suction hose for a variety of wet and dry industrial vacuum applications.
1
What is this hose used for?
Ideal for handling a wide range of materials, such as crushed rock, sand, pea gravel, dry cement, grains and slurries. Made with a permanently conductive tube that remains flexible at low temperatures for ease of handling.
- Vacuum trucks
- Hydro-excavators
- Sewer cleaners
- Street sweepers
⚠ CAUTION: NOT recommended for constant contact with fuels or petroleum products.
2
What are the key specifications?
Construction
Smooth, permanently conductive, high abrasion resistant polyurethane liner with a black, specially formulated polymer and a rigid PVC right-handed helix
Temperature Range
-40°F to +158°F (service temperature depends on actual application)
Safety Factor
3:1
Standard Lengths
50' and 100'
Compares To
ARVAC-SW
Branding
TEXCEL® SIGMA-ULTRAVAC™ - POLYURETHANE SUCTION HOSE - LOT
3
What are the main product features?
- Superior flexibility at low temperatures
- Permanently conductive tube
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| SP-VAC-2.0-100 | 2" | 2-36/64" | 100' | 30 | 29 | 2" | 0.74 |
| SP-VAC-3.0-100 | 3" | 3-38/64" | 100' | 30 | 29 | 3" | 1.11 |
| SP-VAC-4.0-100 | 4" | 4-47/64" | 100' | 30 | 29 | 4" | 1.80 |
| SP-VAC-5.0-100 | 5" | 5-34/64" | 100' | 30 | 27 | 6" | 2.32 |
| SP-VAC-6.0-100 | 6" | 6-49/64" | 100' | 15 | 27 | 8" | 2.86 |
| SP-VAC-8.0-50 | 8" | 8-7/8" | 50' | 15 | 27 | 14" | 4.27 |
