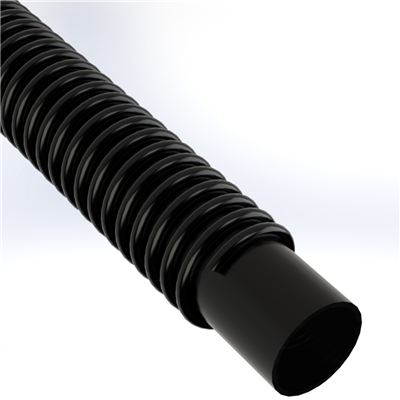

SP-SBR-5.0-100 by Texcel | SIGMA-ULTRAVAC-SBR™ Series | SBR Vacuum Hose | 5" Hose ID | 30 PSI | 28 in/Hg Vacuum Rated | Black
Package Quantity: 50 FT
Buy more, save moreDiscounts applied in cart/checkout.
SP-SBR-5.0-100 by Texcel | SIGMA-ULTRAVAC-SBR™ Series | SBR Vacuum Hose | 5" Hose ID | 30 PSI | 28 in/Hg Vacuum Rated | Black
Sale price$1,888.12
($37.76/ft)
Material Handling Hose
SIGMA-ULTRAVAC-SBR™ Vacuum Hose
Ultravac SBR™ is a specially compounded vacuum hose suitable for use in a multitude of wet and dry material applications.
1
What is this hose used for?
Lightweight and flexible, it is the ideal hose for vacuum trucks, hydro-excavators and sewer cleaning equipment. Its static dissipative carbon black tube makes it suitable for handling sand, gravel, dry cement, iron chips, grains and other light abrasives.
- Vacuum trucks
- Hydro-excavators
- Sewer cleaning equipment
- Sand
- Gravel
- Dry cement
- Iron chips
- Grains
2
What are the key specifications?
Construction
Static dissipating, SBR blended tube with a rigid right-handed PVC helix
Temperature Range
-40°F to +158°F
Safety Factor
3:1
Standard Lengths
50' and 100'
Compares To
180 AR
Branding
SIGMA SERIES - ULTRAVAC SBR - LOT
3
What are the main product features?
- Excellent flexibility — when compared to PVC/polyurethane hose.
- Static dissipative carbon black tube
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| SP-SBR-1.5-100 | 1-1/2" | 1.82" | 100' | 45 | 29 | 2" | 0.35 |
| SP-SBR-2.0-100 | 2" | 2.35" | 100' | 40 | 29 | 3" | 0.52 |
| SP-SBR-2.5-100 | 2-1/2" | 2.95" | 100' | 35 | 29 | 3" | 0.90 |
| SP-SBR-3.0-100 | 3" | 3.50" | 100' | 35 | 29 | 3" | 1.08 |
| SP-SBR-4.0-100 | 4" | 4.63" | 100' | 30 | 29 | 5" | 1.80 |
| SP-SBR-5.0-100 | 5" | 5.76" | 100' | 30 | 28 | 5" | 2.45 |
| SP-SBR-6.0-100 | 6" | 6.73" | 100' | 30 | 28 | 9" | 3.05 |
| SP-SBR-8.0-50 | 8" | 9.04" | 50' | 30 | 27 | 15" | 5.63 |
