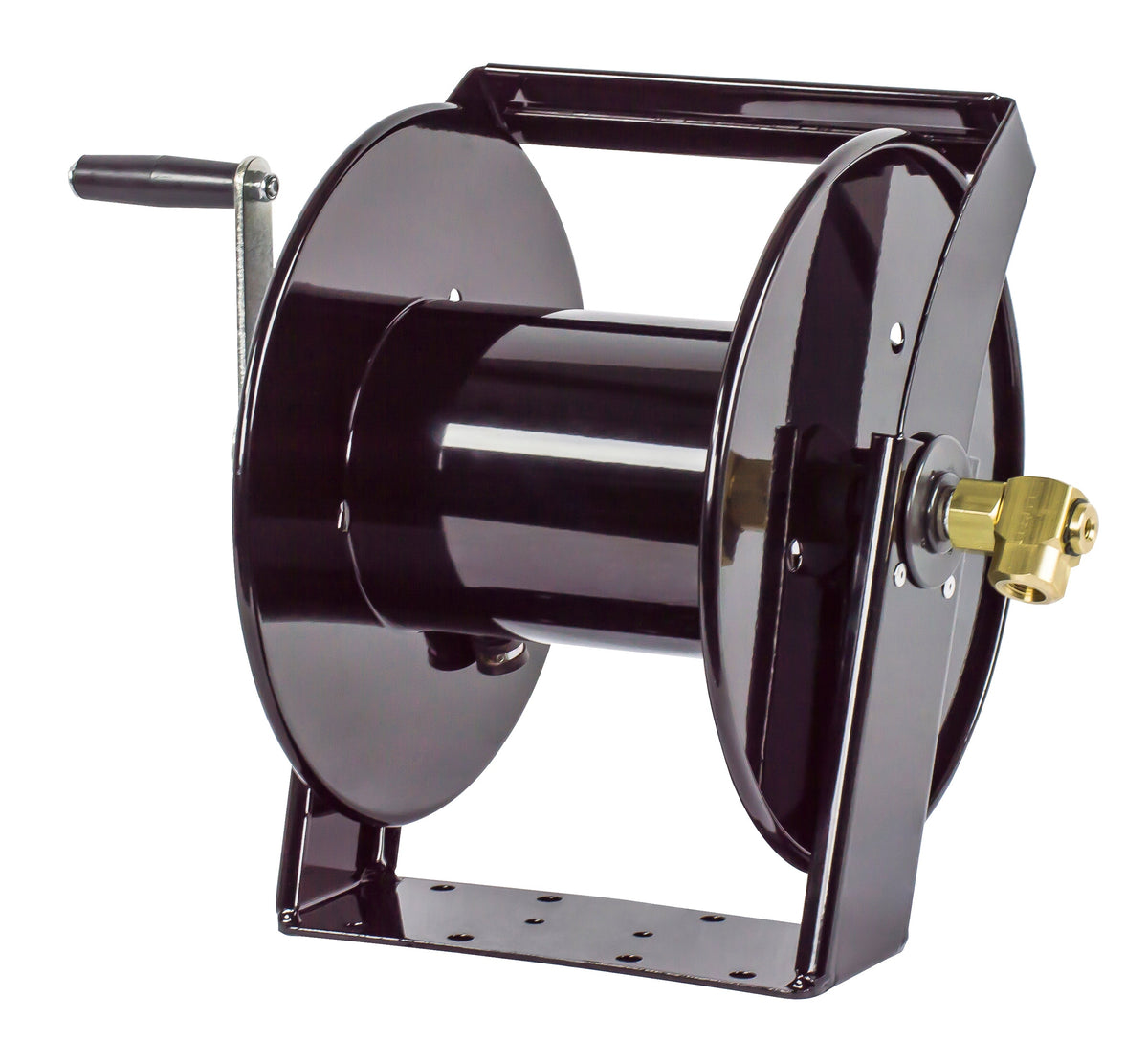

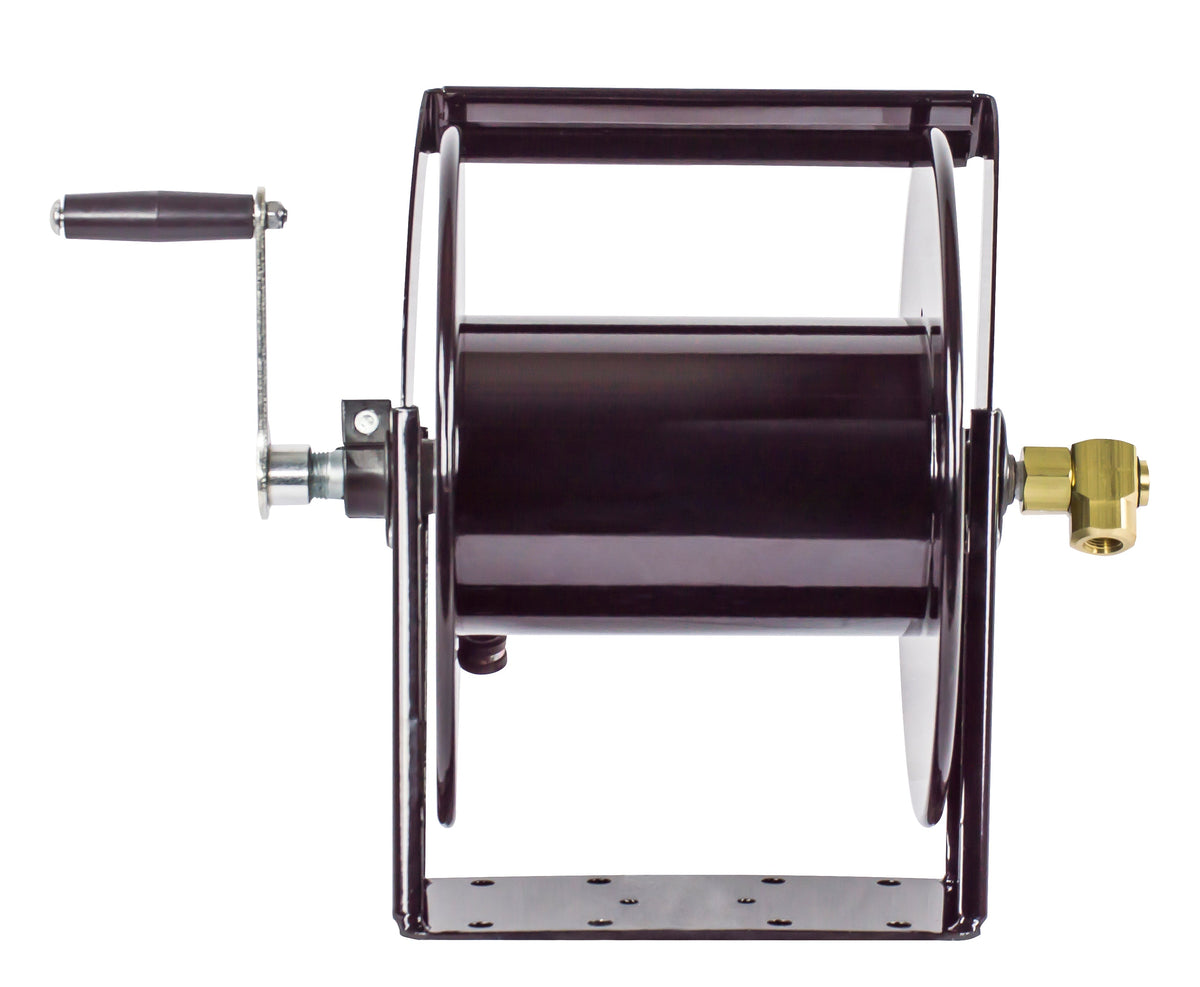

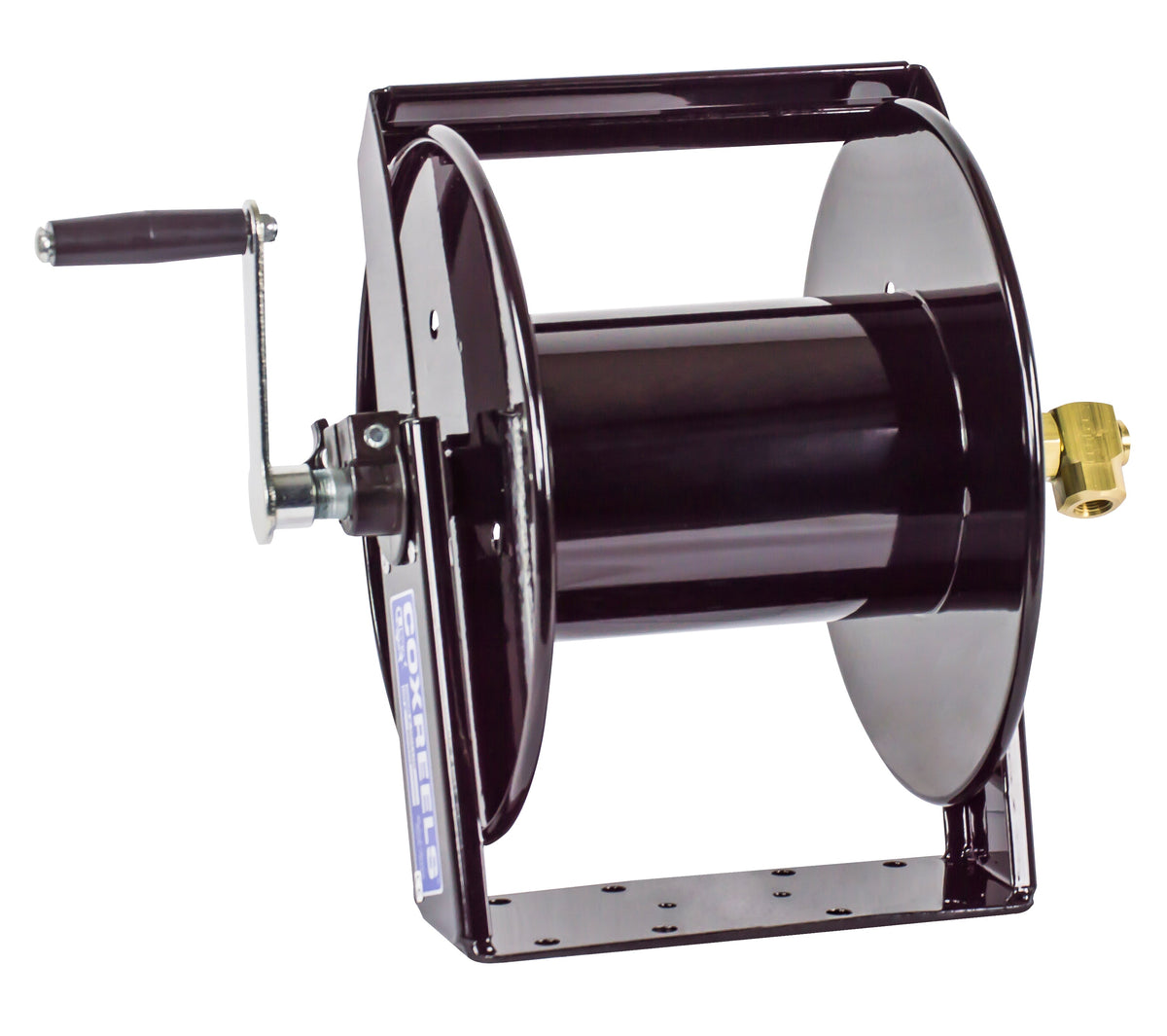

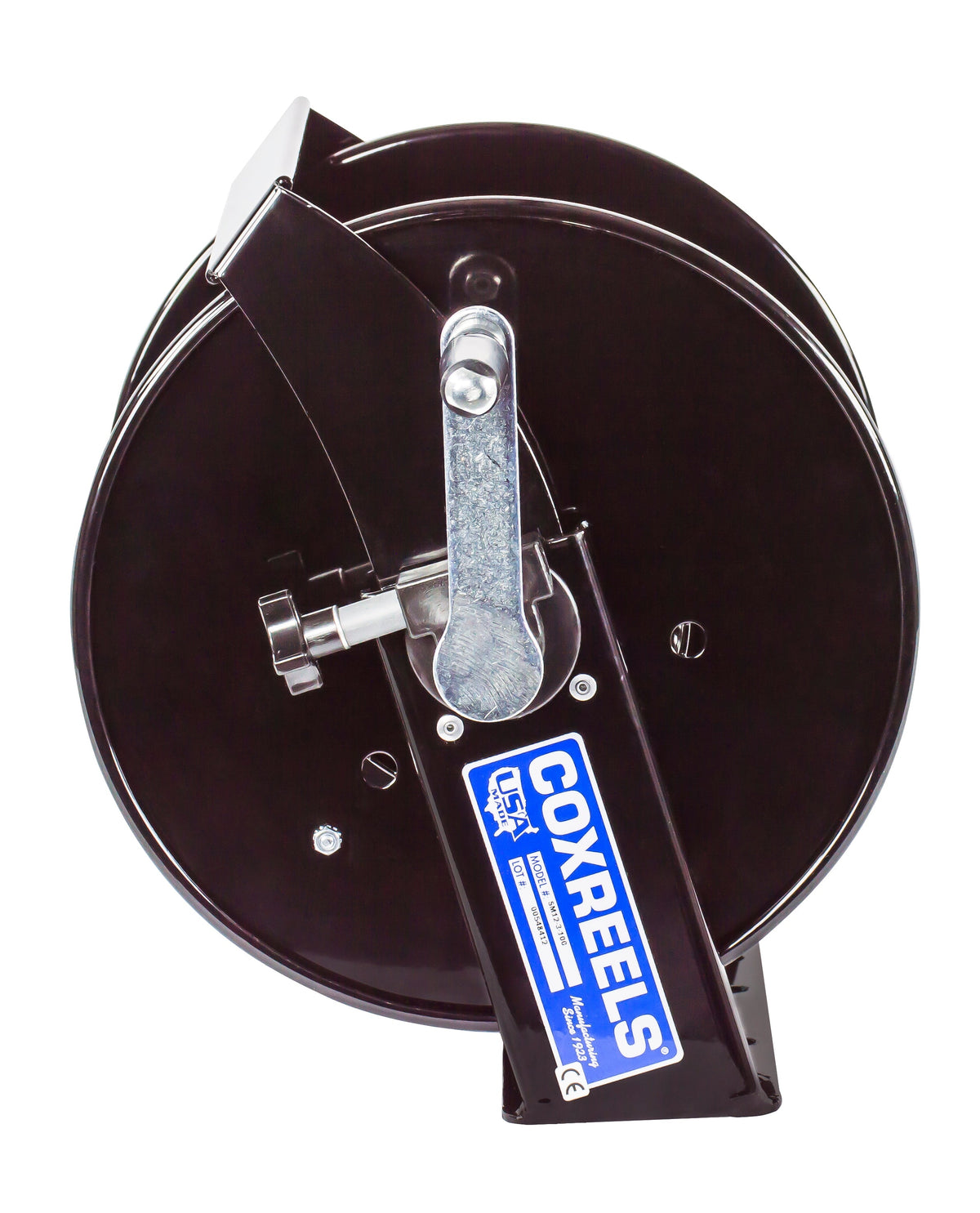

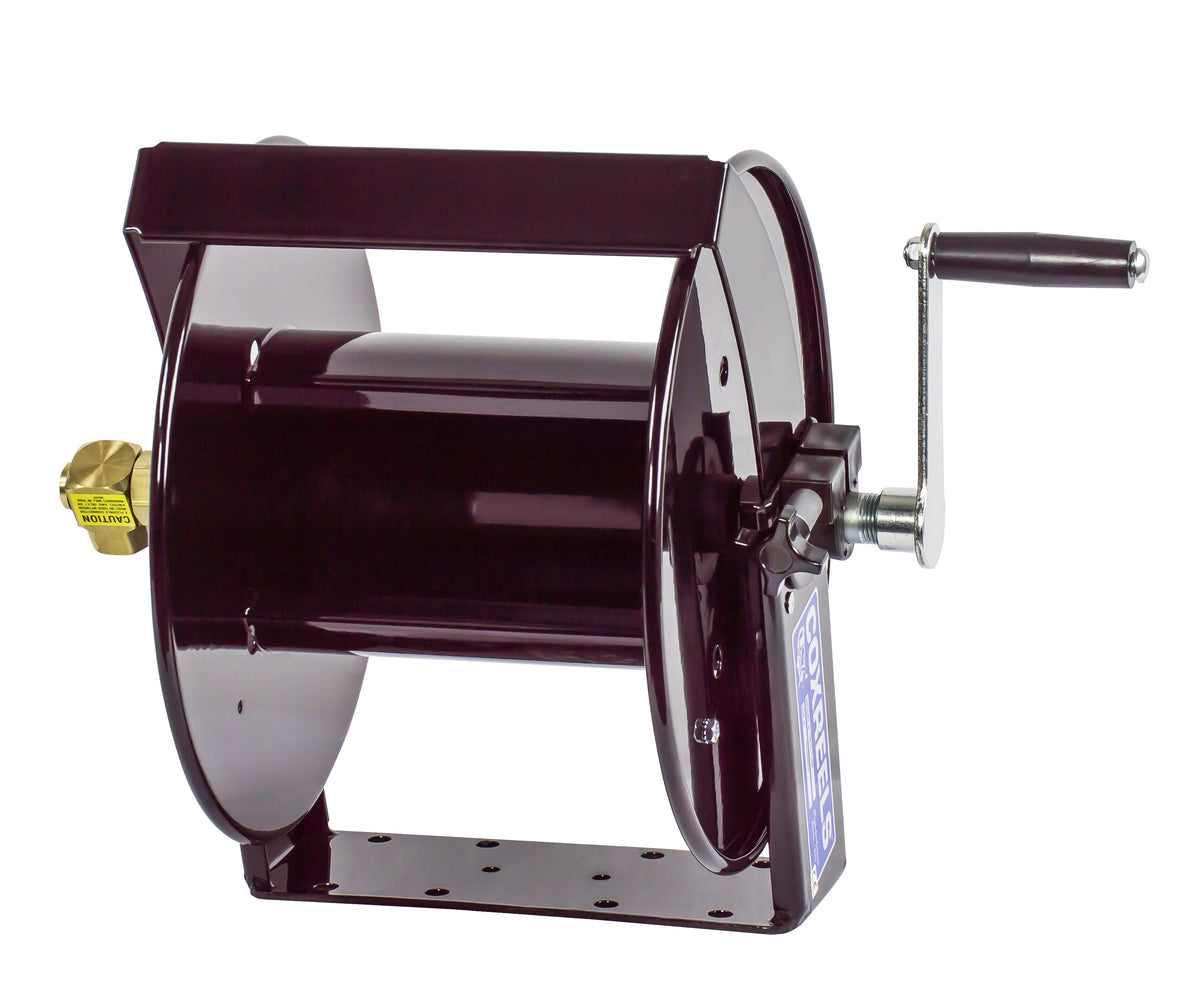

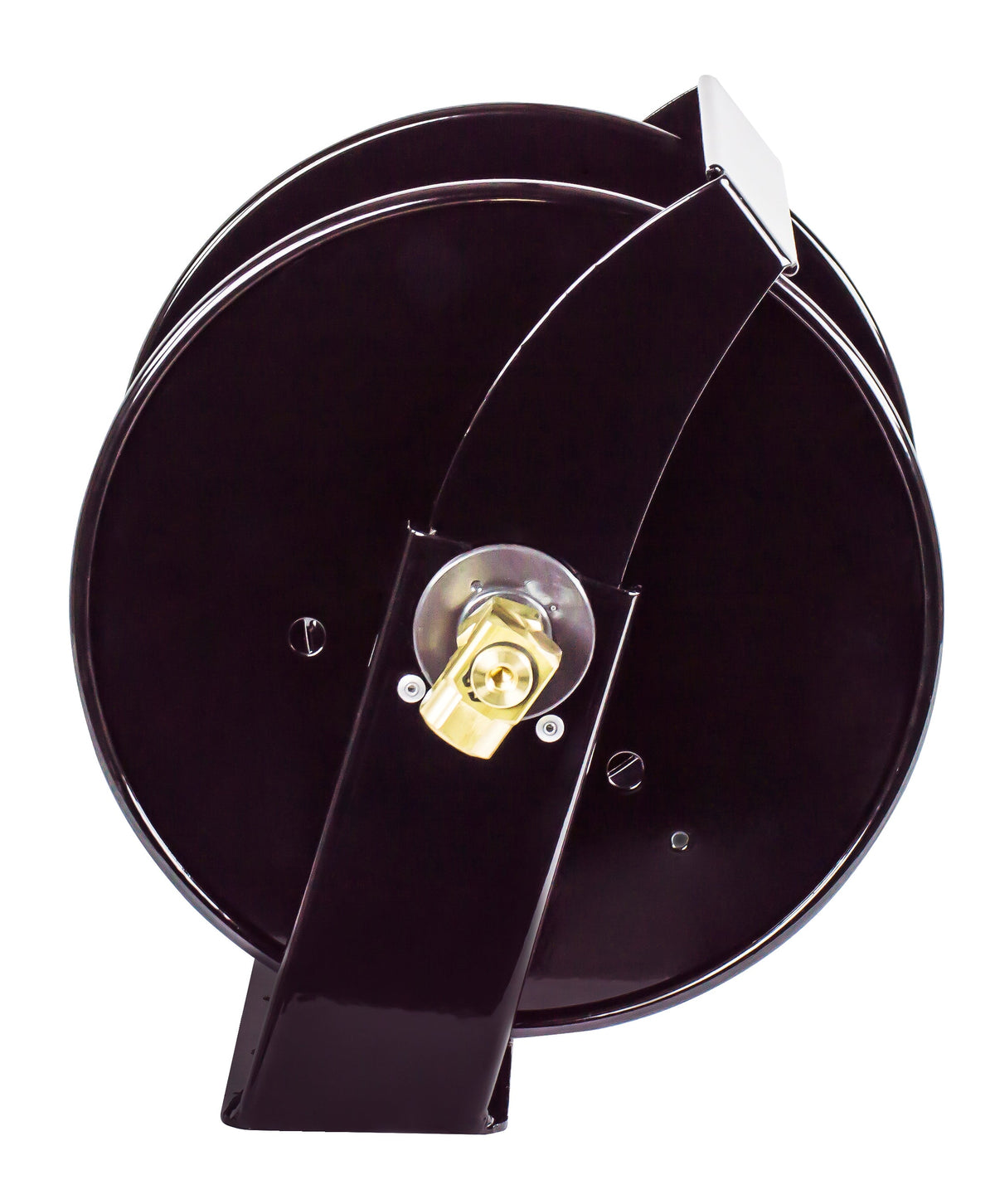

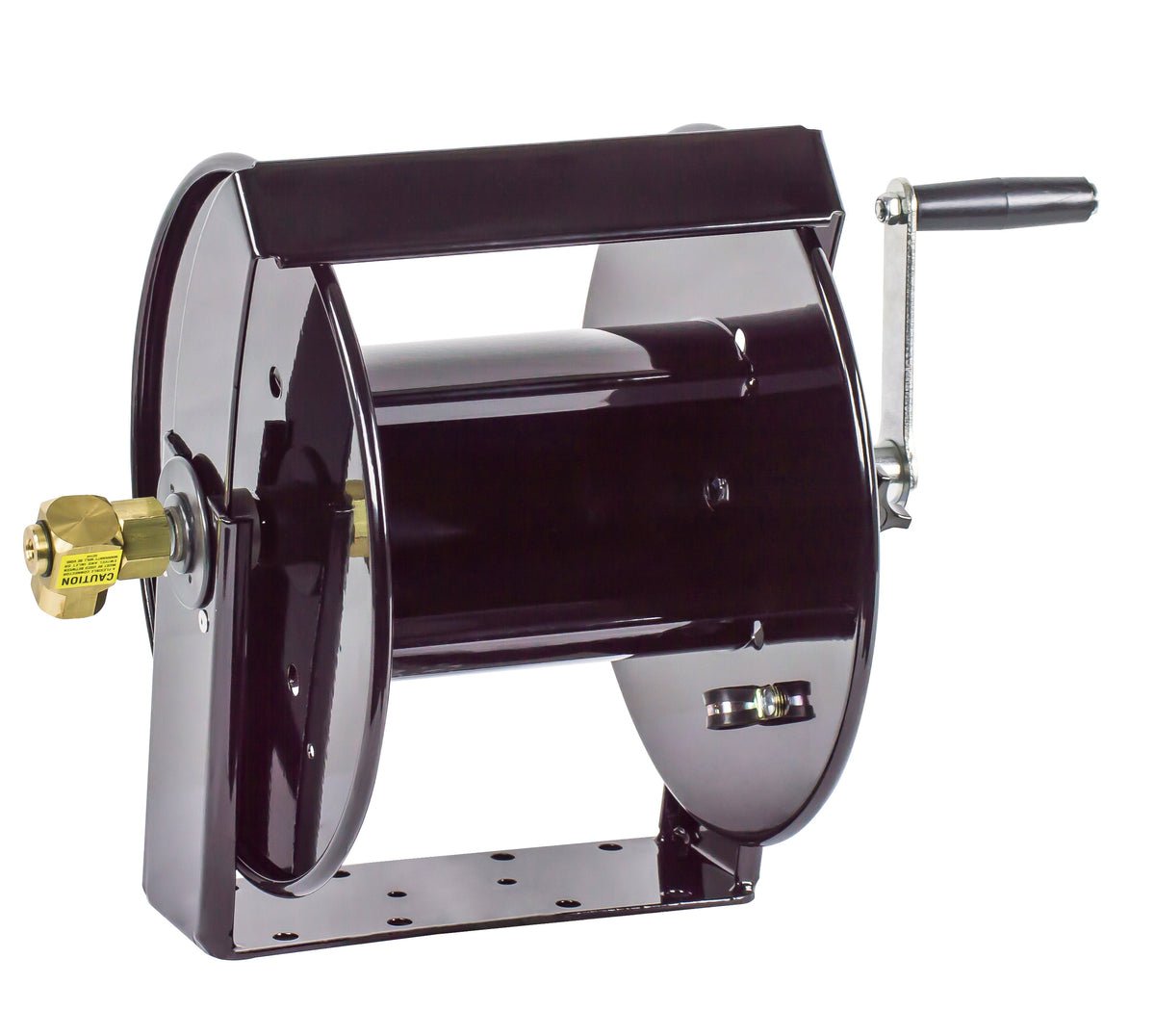

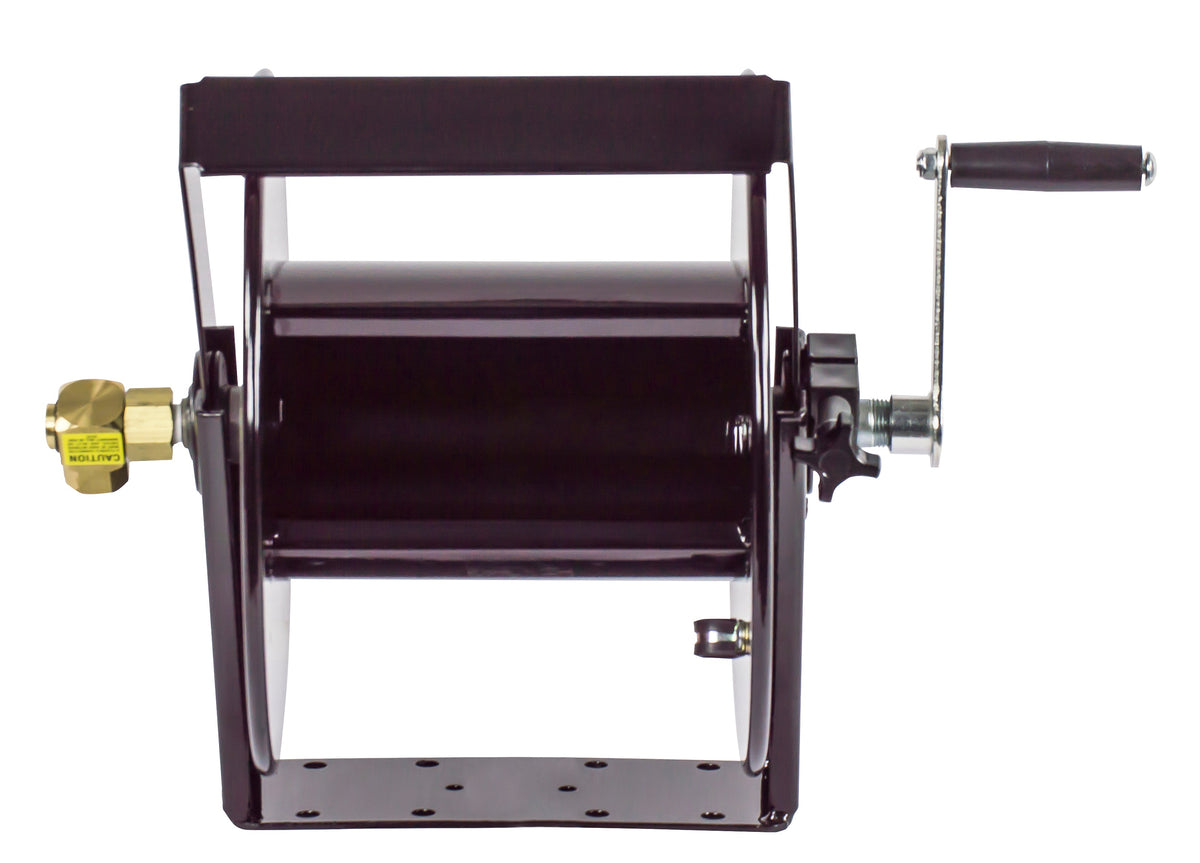

SM12-3-100 by Coxreels | SM Series | 4,000 PSI Swivel Mount Hand Crank Hose Reel | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 100ft Capacity, Hose Not Included
Coxreels SM Series Hand Crank Hose Reels
Steel swivel-mount hand crank hose reels for air, water, washdown, pressure washing and pest control, rated to 4,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Hydro Seeding
- Chemical Fluid Transfer
2
What are the key specifications?
Steel, swivel-mount
Brass 90° full-flow with Viton seals
Female NPT, same size as the hose I.D.
225°F / 250°F depending on hose
CPC™ powder coat
Floor, Wall, Vehicle Mounting
Ø0.41" mounting holes
3
What are the main product features?
- Swivel — Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Frame Design — Forward-weighted solid one piece, heavy gauge steel frame design ensures rotation in direction of use.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Control Bar — Unique hose control bar keeps hose from slipping off the disc from any direction.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Reel W × H × L (in) |
|---|---|---|---|---|
| SM12-3-100 | 3/8" | 100 ft | 4,000 | 19 × 13.5 × 12 |
| SM17-3-250 | 3/8" | 250 ft | 4,000 | 19 × 18.5 × 17 |
| SM17-4-125 | 1/2" | 125 ft | 4,000 | 19 × 18.5 × 17 |
5
Which accessories are available?
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BFXX is -GFXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BZXX | Less swivel |
7
Where can I find product documents?
SM Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
