SM1008B-SS by ZSi-Foster | Beta Clamp Stacking Kit (Metric) | Standard Series | For 8mm Assembly | Polypropylene/304 Stainless Steel

SM1008B-SS by ZSi-Foster | Beta Clamp Stacking Kit (Metric) | Standard Series | For 8mm Assembly | Polypropylene/304 Stainless Steel

Sale price$23.46

ZSI-Foster
Beta Hydraulic Clamps (Metric) - Standard Series - Clamp Stacking Kit Assembly - Polypropylene / 304 Stainless Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Buy More, Save More!
Quantity Price Each
10–39 $22.05
40–79 $19.94
80+ $17.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • Standard Series
Maximum Clamp I.D.:

8mm
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: 304 Stainless Steel
  • Cushion: Polypropylene (Green)
Installation:

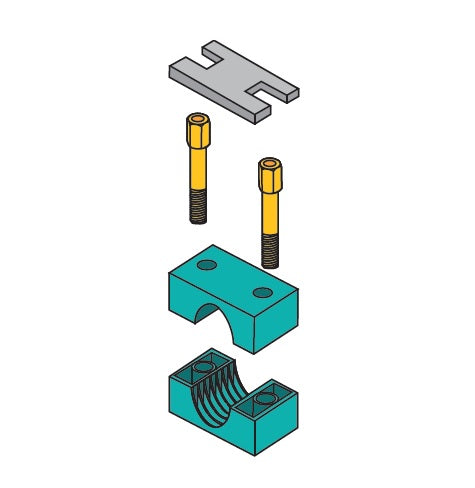

Assembly Includes:
Quantity Description
1 Each Safety Plate
2 Each Stacking Bolts
1 Set Cushions
Part Number Size Bolt Length
SM1008B-SS 8mm 1-1/4"
SM1012B-SS 10mm 1-1/4"
SM2015B-SS 15mm 1-3/8"
SM2018B-SS 18mm 1-3/8"
