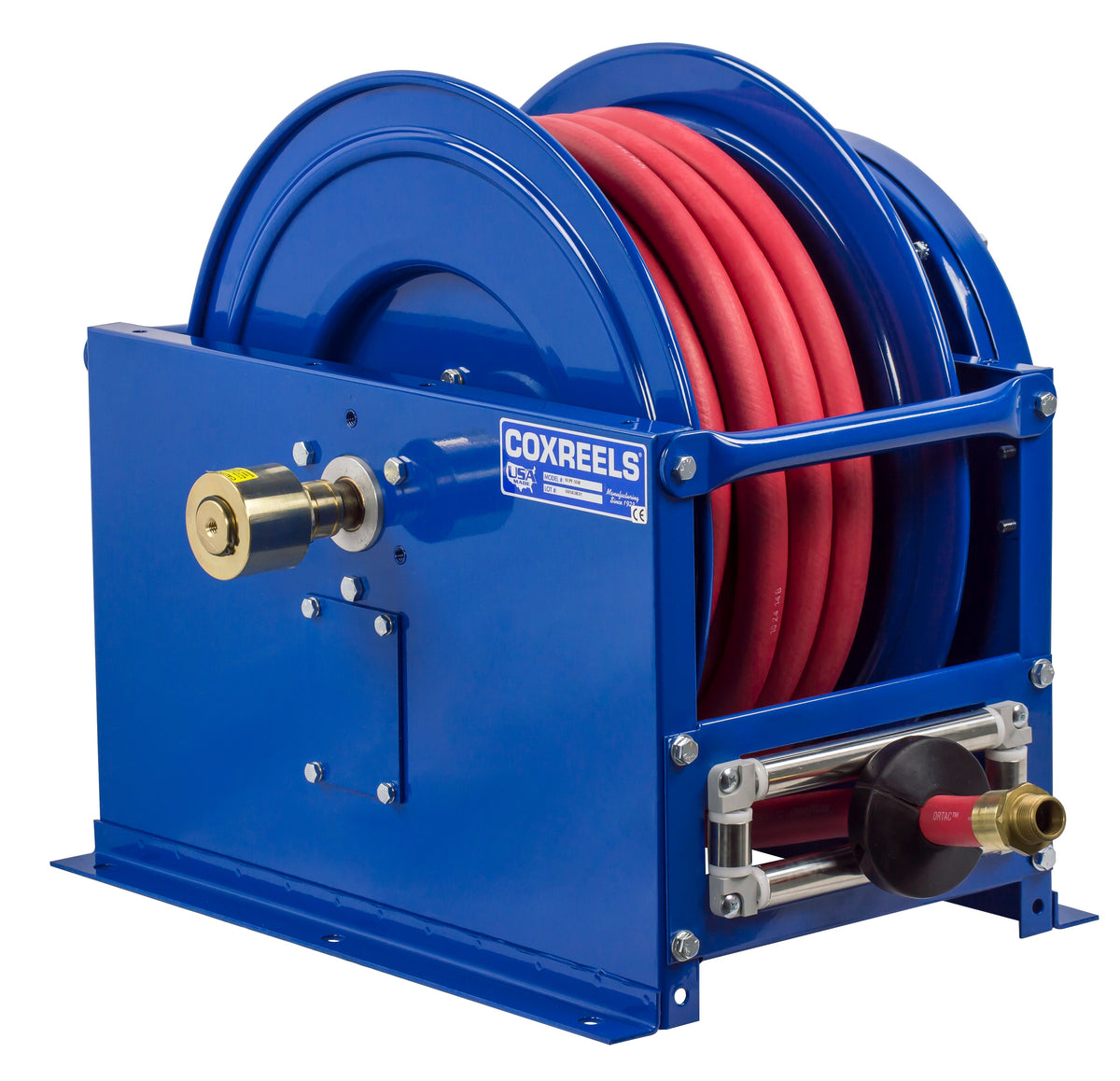

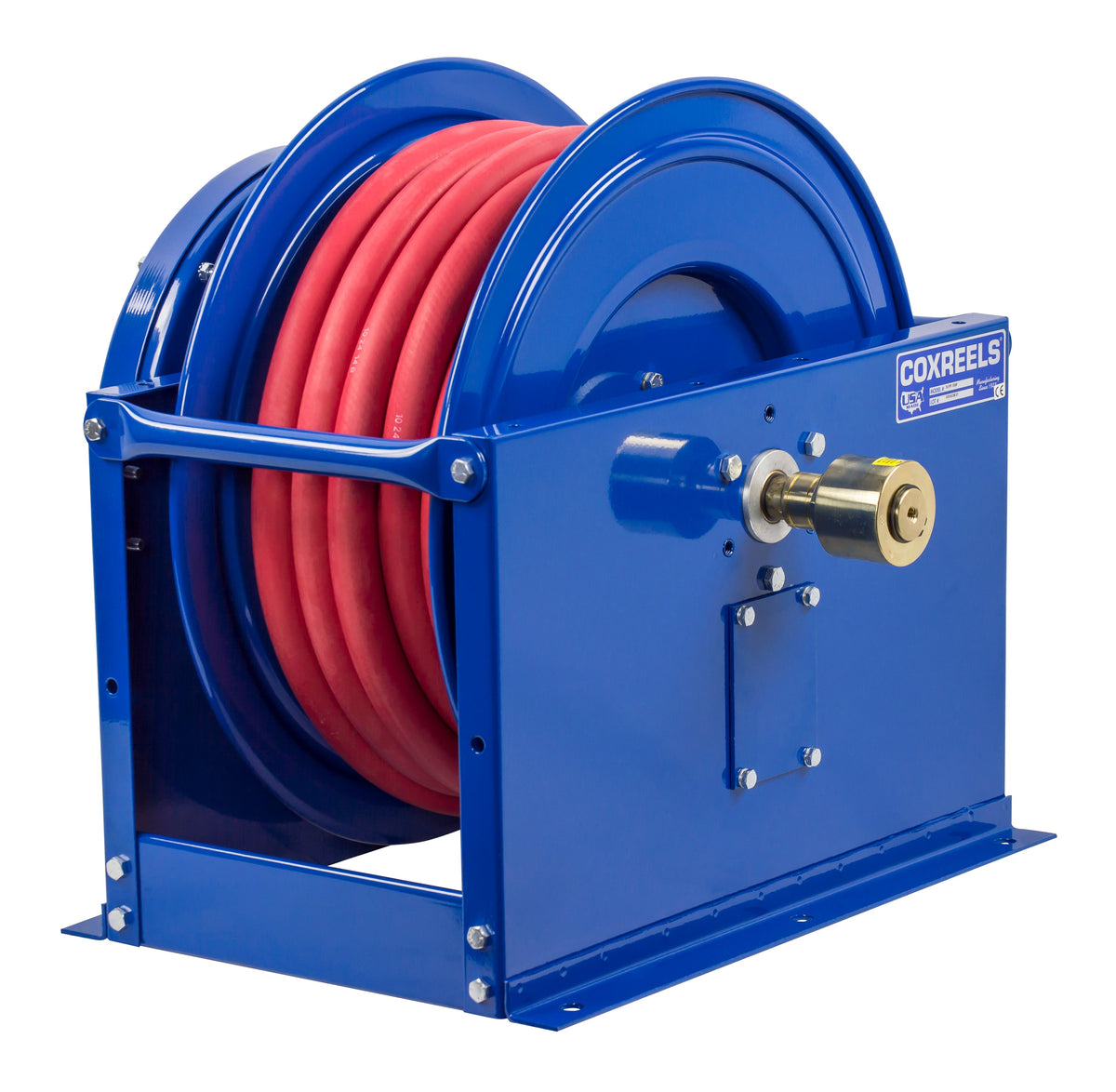

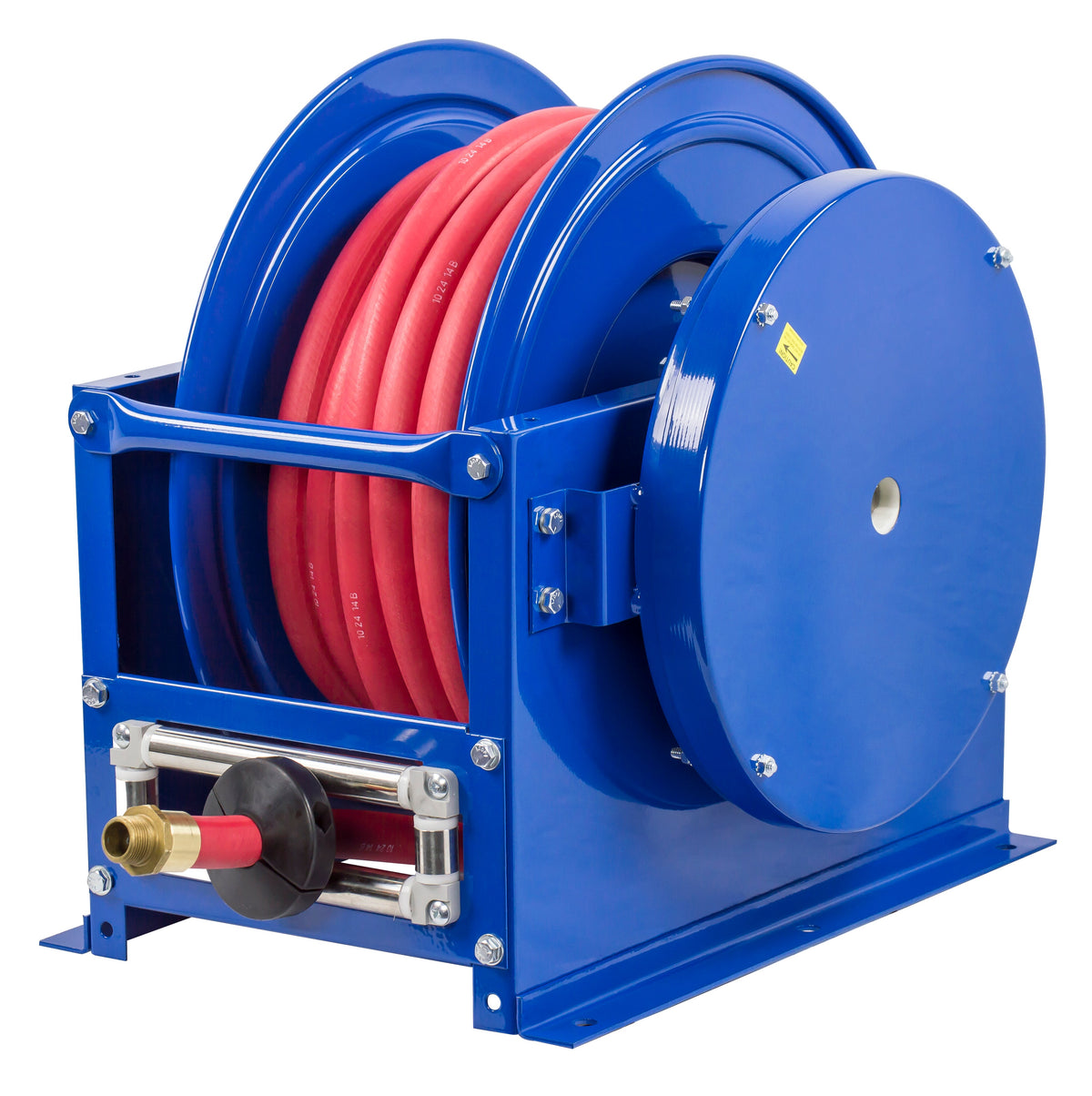

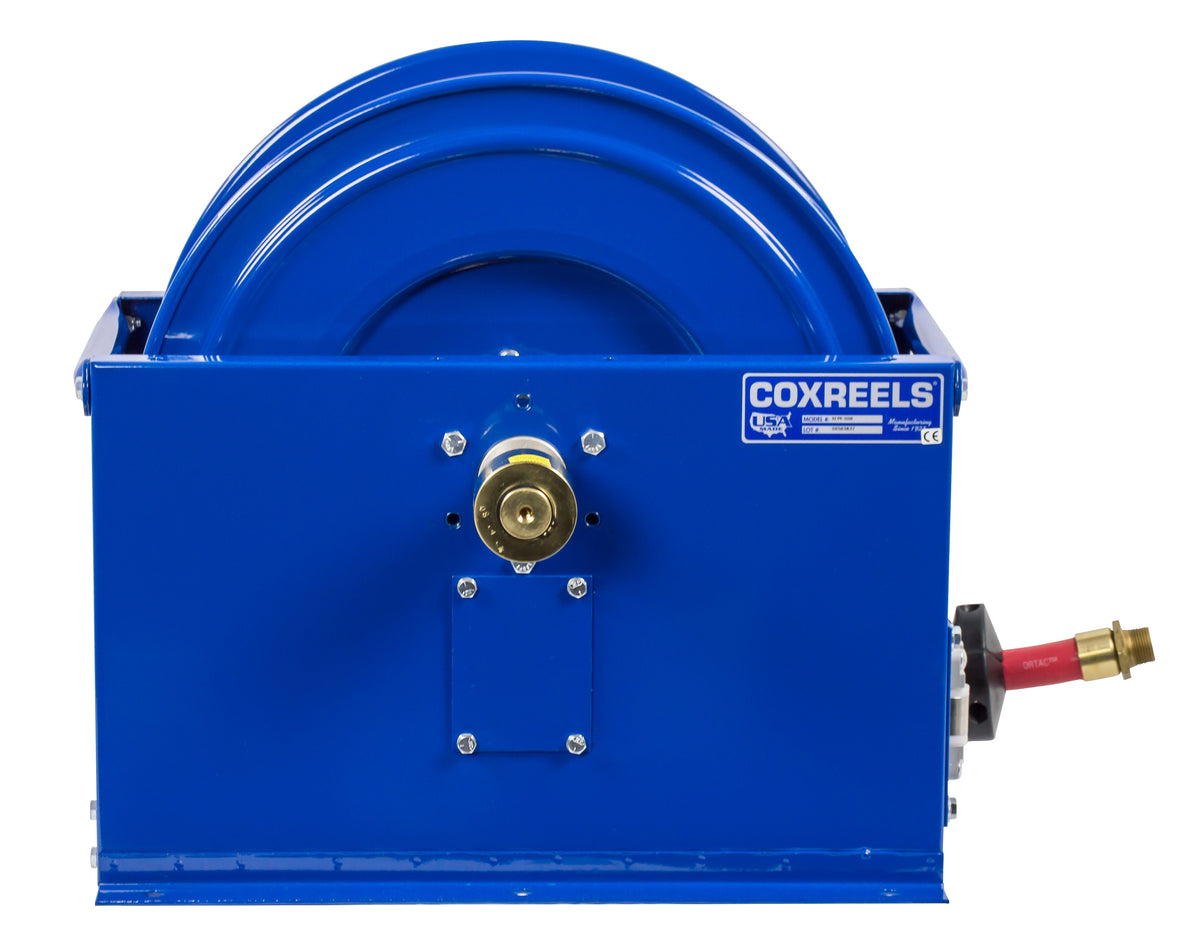

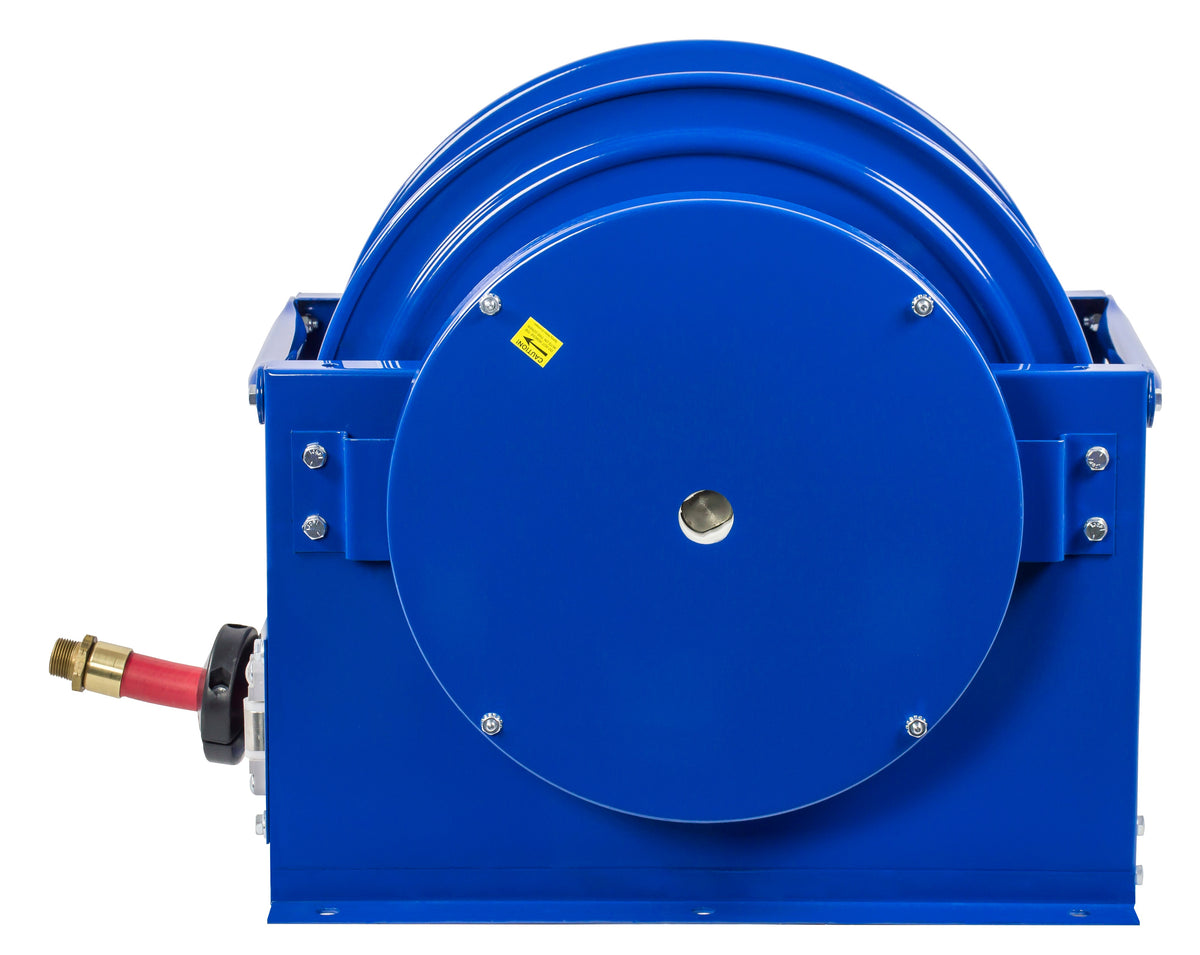

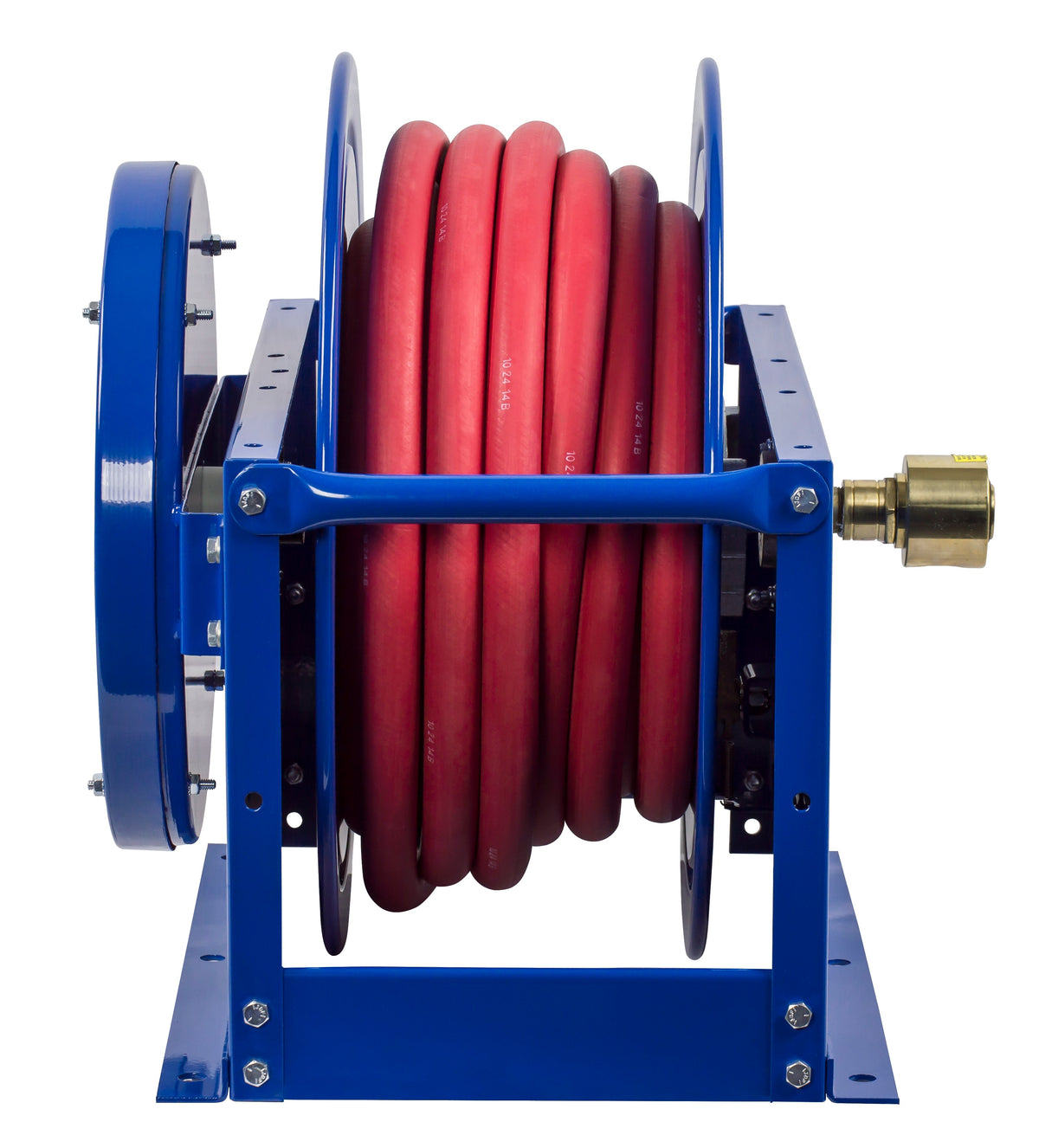

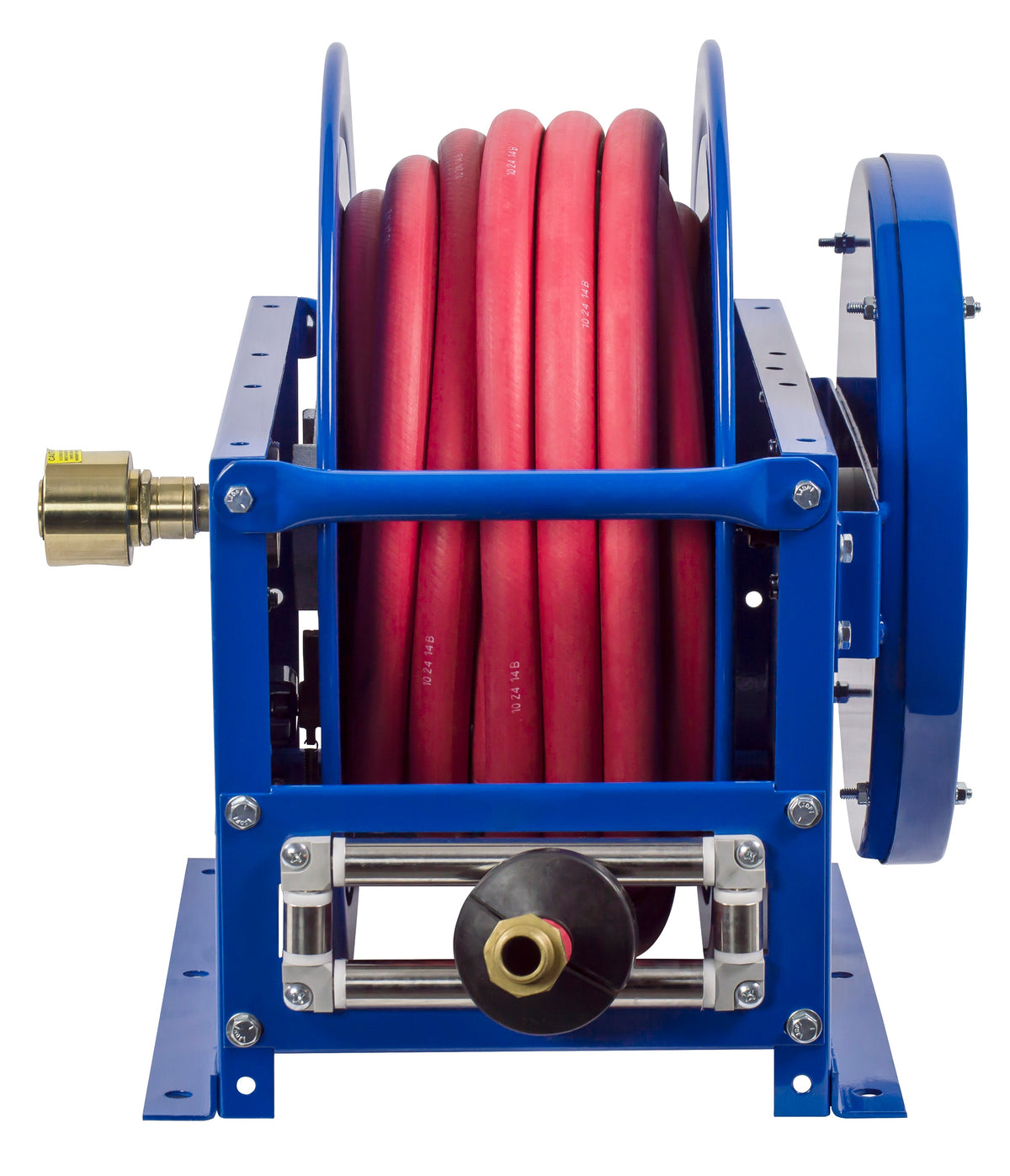

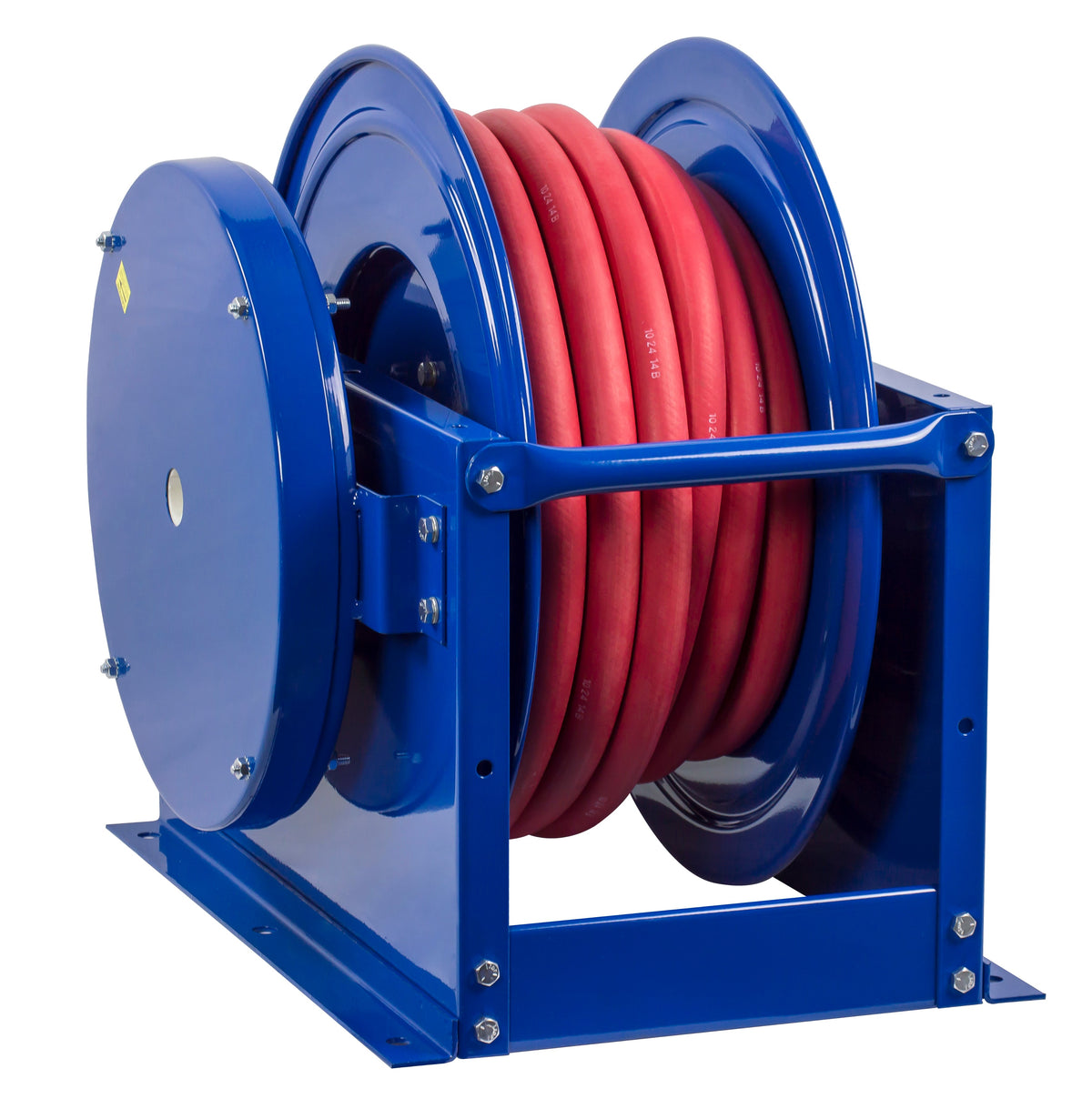

SLPF-5100 by Coxreels | SP-Fuel Series | 300 PSI Spring Driven Hose Reel for Fuel | 3/4" Hose ID, 3/4" FNPT Inlet x 3/4" MNPT Hose End | Steel | 100ft PVC Hose Included
Coxreels SP-Fuel Series Spring Driven Hose Reels
Steel box-frame spring driven hose reels for fuel delivery, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Fuel Delivery
2
What are the key specifications?
Steel, box-frame
Female NPT, same size as the hose I.D.
190°F
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.56" mounting holes
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for fuel dispensing applications.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box-Style Design — Sturdy box-style, reinforced steel frame design provides maximum strenght and stability.
- Steel Rollers — Heavy duty 1" stainless steel pinch-proof rollers.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Hose | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| SLPF-550 | 3/4" | 50 ft | 300 | PVC | 20" | 19.625 × 20.5 × 22.875 |
| SLPF-575 | 3/4" | 75 ft | 300 | PVC | 24" | 19.625 × 20.5 × 22.875 |
| SLPF-625 | 1" | 25 ft | 300 | Nitrile Synthetic Rubber, RMA Class A | 20" | 19.625 × 24.5 × 26.375 |
| SLPF-650 | 1" | 50 ft | 300 | Nitrile Synthetic Rubber, RMA Class A | 24" | 19.625 × 24.5 × 26.375 |
| SLPF-675 | 1" | 75 ft | 300 | Nitrile Synthetic Rubber, RMA Class A | 24" | 19.625 × 24.5 × 26.375 |
| SLPF-5100 | 3/4" | 100 ft | 300 | PVC | 24" | 19.625 × 20.5 × 22.875 |
5
Which accessories are available?
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
