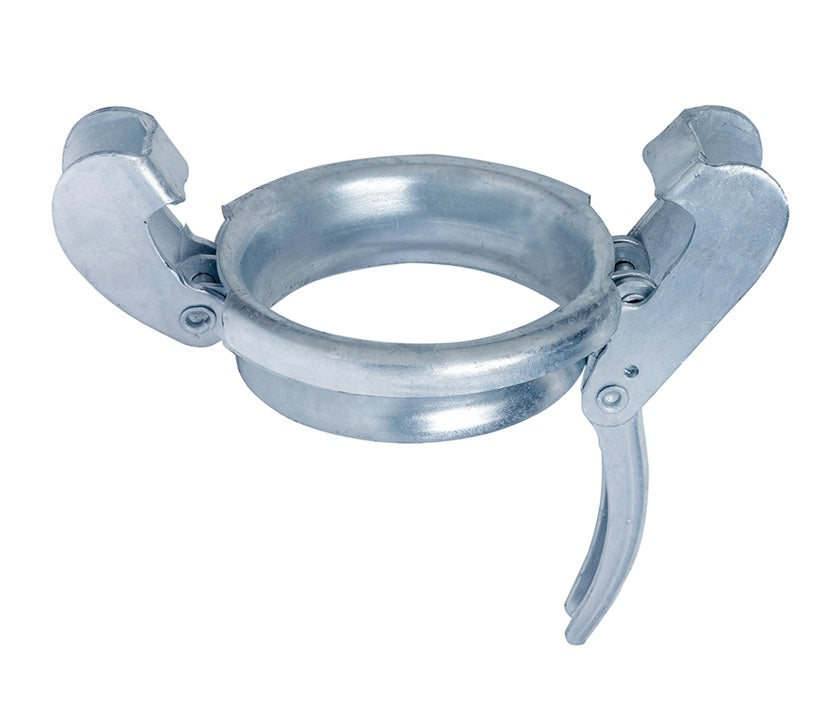

SLB-LR200 by Kuriyama | SLB-LR Series | SPHERE LOCK™ Bauer Coupling | Type B | Locking Lever Ring | 2" Size
Kuriyama of America Inc.
SPHERE LOCK™ Bauer Coupling | Type B | SLB-LR Series | Locking Lever Ring
For the transfer of freshwater or wastewater in agricultural, construction, septic, mining and other industrial applications.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.09 |
| 40–79 | $20.88 |
| 80+ | $18.42 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
MAWP:
290
What are the Features?
- Sphere Lock couplings, also referred to as ball and socket couplings, consist of male (ball) and female (socket) ends.
- The rounded male end nests in the concave female end, which contains a Buna gasket for sealing.
- The connection is tightened by pushing down on a lever or bar.
- Highly durable, with excellent resistance to impacts and vibration, making them ideal for highly demanding outdoor applications.
- Able to handle full vacuum and higher pressures than standard cam-lock couplings.
- Allows for greater ease when connecting than most other coupling types. Whereas most other couplings must be aligned perfectly straight, Sphere Lock couplings can connect at angles of up to 30°, which is beneficial when conditions make a perfectly straight connection difficult.
What are the Materials?
- High-grade, high-tensile, hot dipped galvanized steel.
What is the Service Temperature Range?
- -40°F (-40°C) to +250°F (+121°C)
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|
| SLB-LR200 | 2" | 290 PSI | 1.01 lbs |
| SLB-LR300 | 3" | 290 PSI | 2.31 lbs |
| SLB-LR400 | 4" | 217 PSI | 4.45 lbs |
| SLB-LR600 | 6" | 175 PSI | 9.30 lbs |
| SLB-LR800 | 8" | 175 PSI | 13.49 lbs |
| SLB-LR1000* | 10" | 175 PSI | 24.27 lbs |
| SLB-LR1200* | 12" | 175 PSI | 35.05 lbs |
* Requires Lever Assist Bar (Type B) to couple (SLB-LV)
