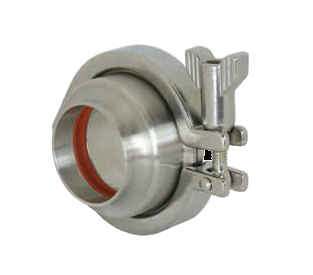

SJSS300BB-20 Dixon Valve SJSS Series Swivel - 3" Straight Weld x Weld - Style 20 - 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Size | Dimensions | Pressure Rating PSI @ 70°F (21°C) |
Pressure Rating PSI @ 250°F (121°C) |
||
| A | B | C | ||||
| SJSS100BB-20 | 1" | 2.56" | 2.00" | 1.00" | 500 PSI | 300 PSI |
| SJSS150BB-20 | 1-1/2" | 2.56" | 2.00" | 1.50" | 500 PSI | 300 PSI |
| SJSS250BB-20 | 2-1/2" | 3.44" | 2.00" | 2.50" | 400 PSI | 200 PSI |
| SJSS300BB-20 | 3" | 3.94" | 2.00" | 3.00" | 350 PSI | 175 PSI |
| SJSS400BB-20 | 4" | 5.08" | 2.94" | 4.00" | 300 PSI | 150 PSI |
