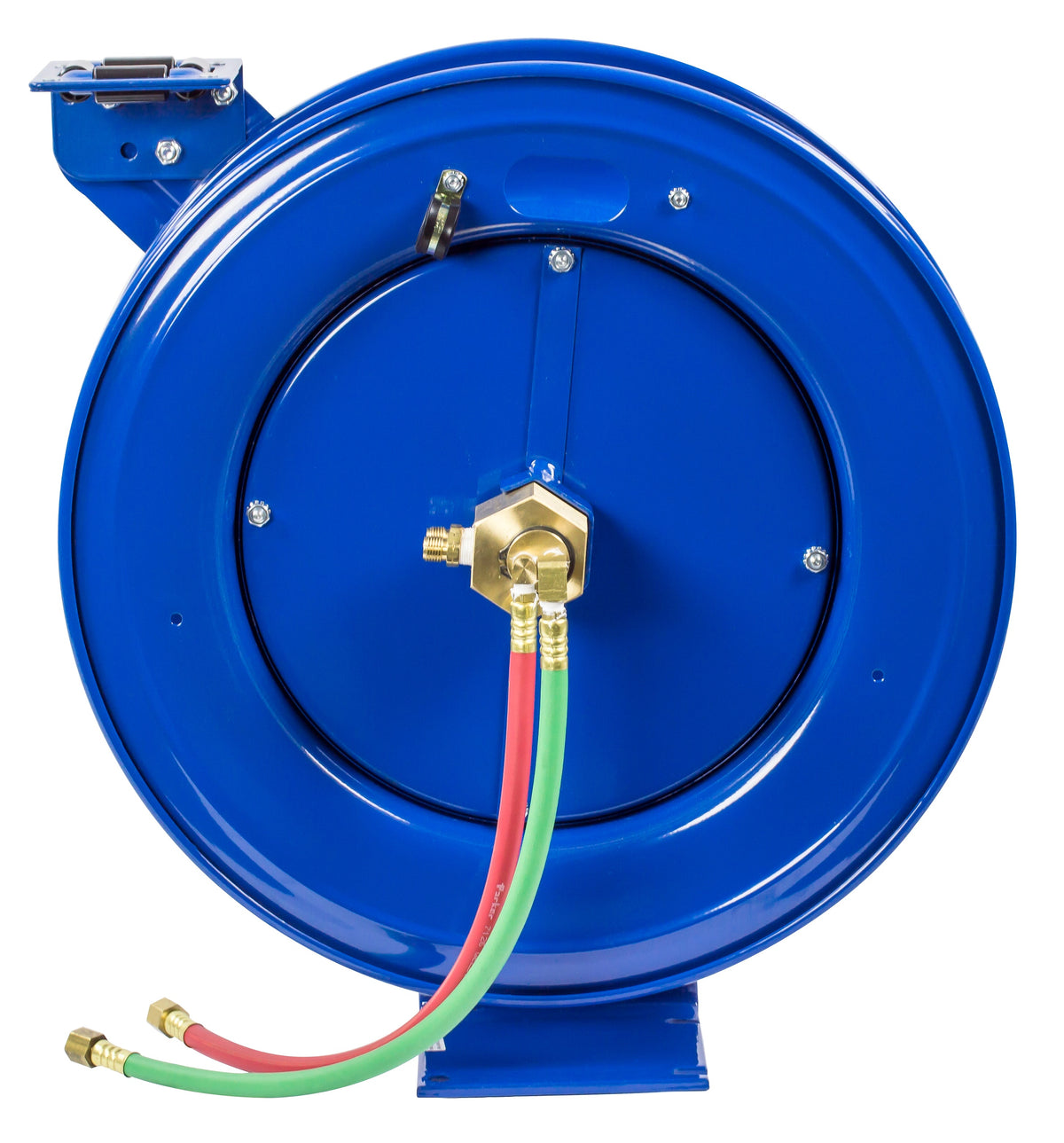

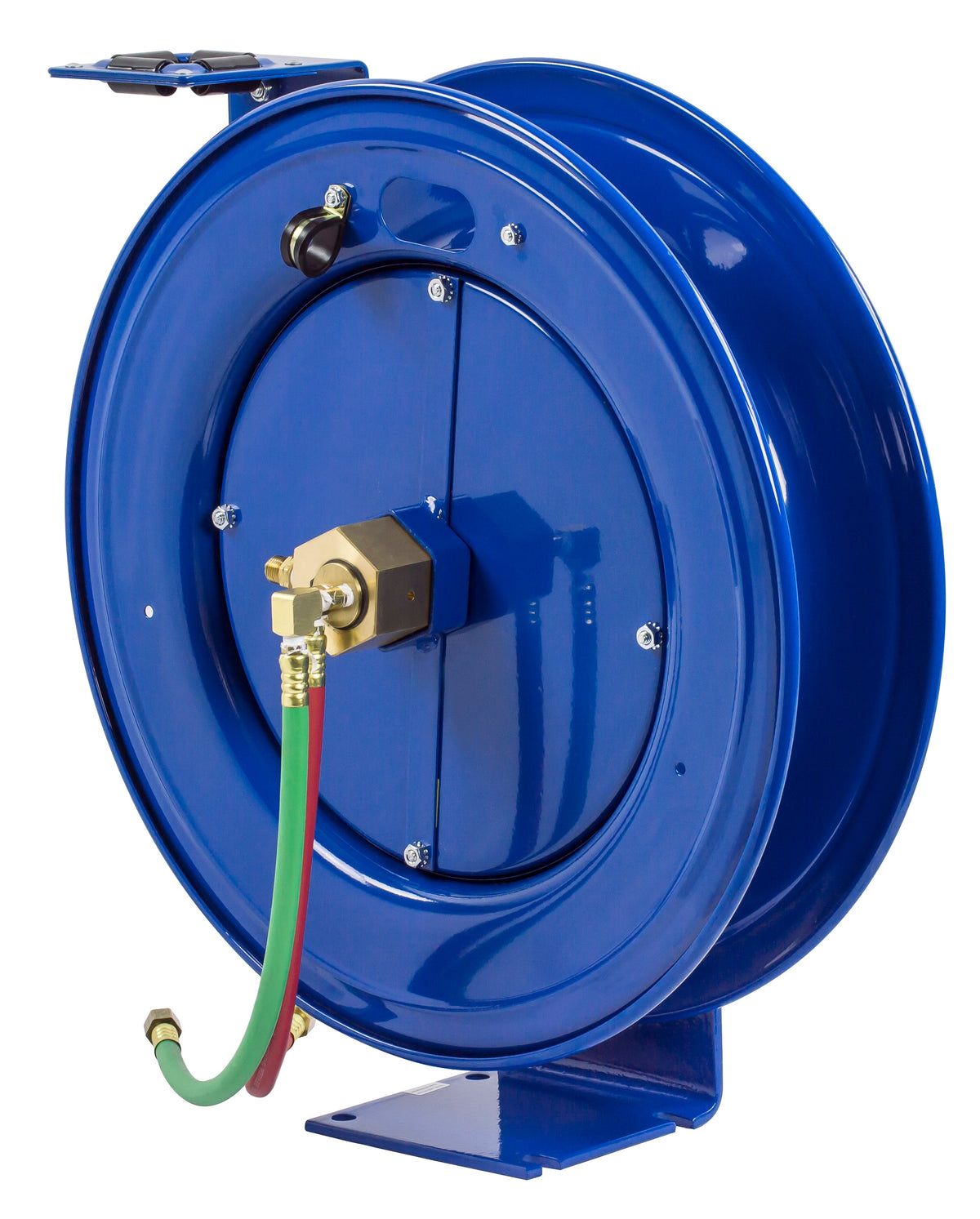

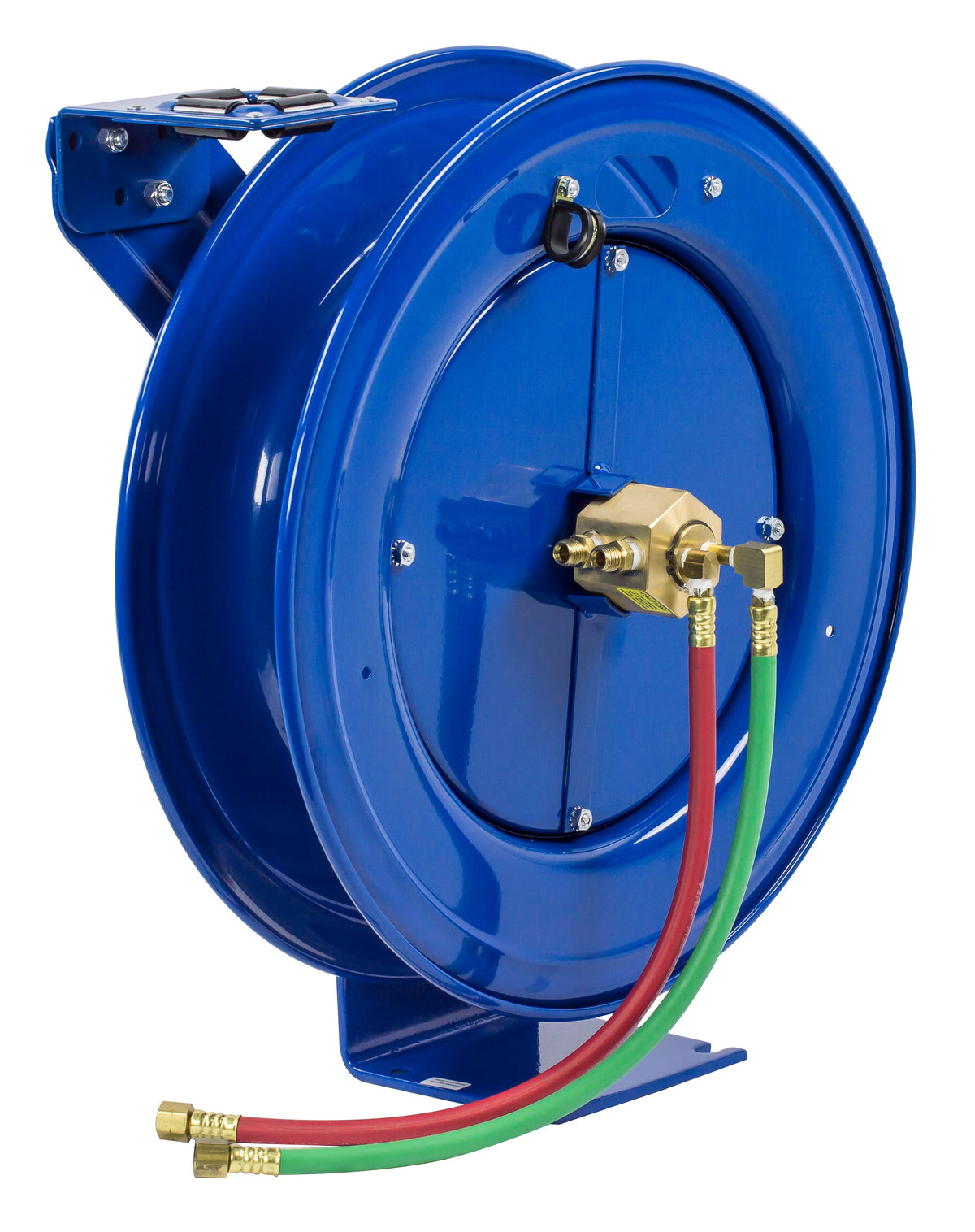

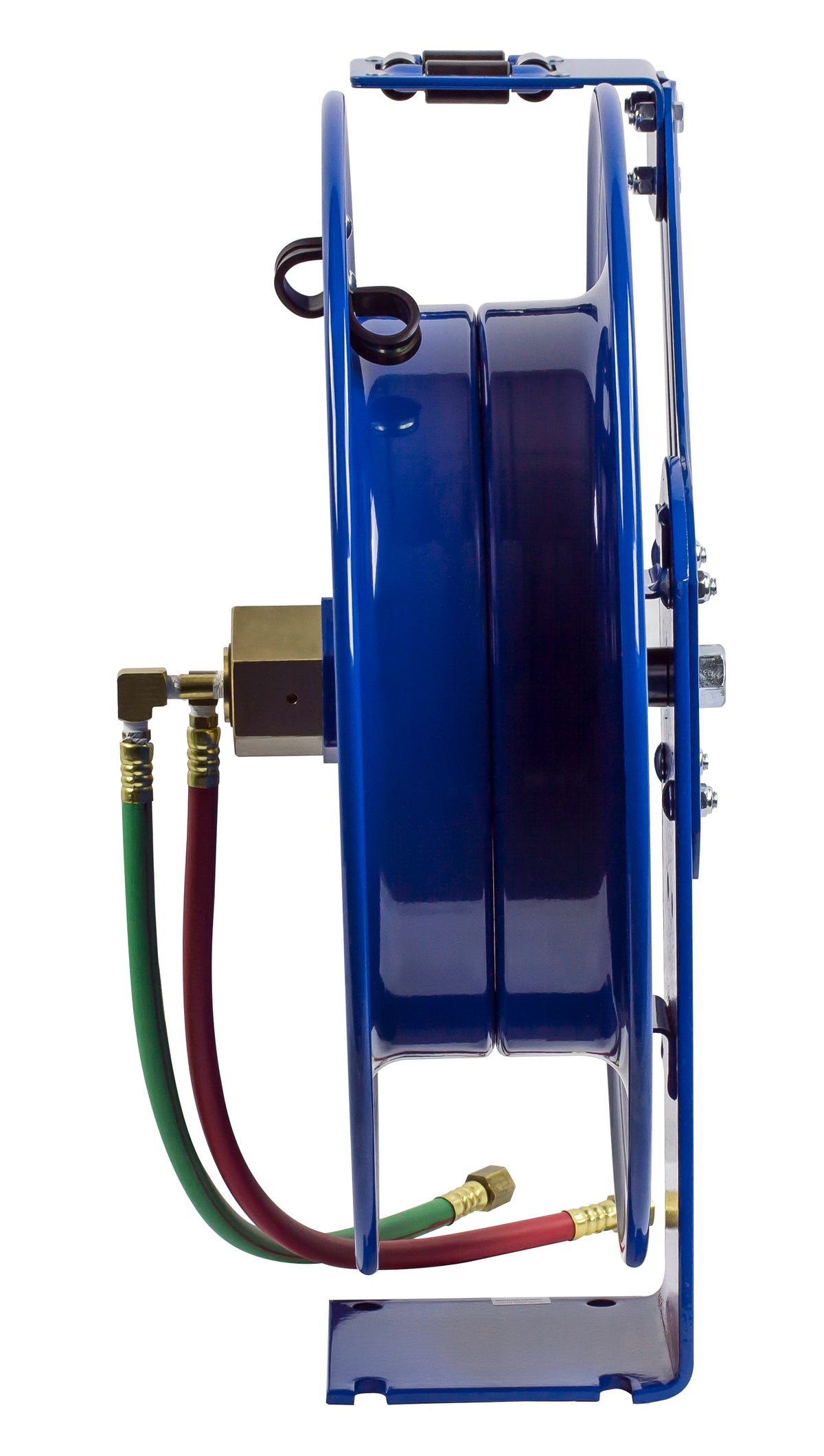

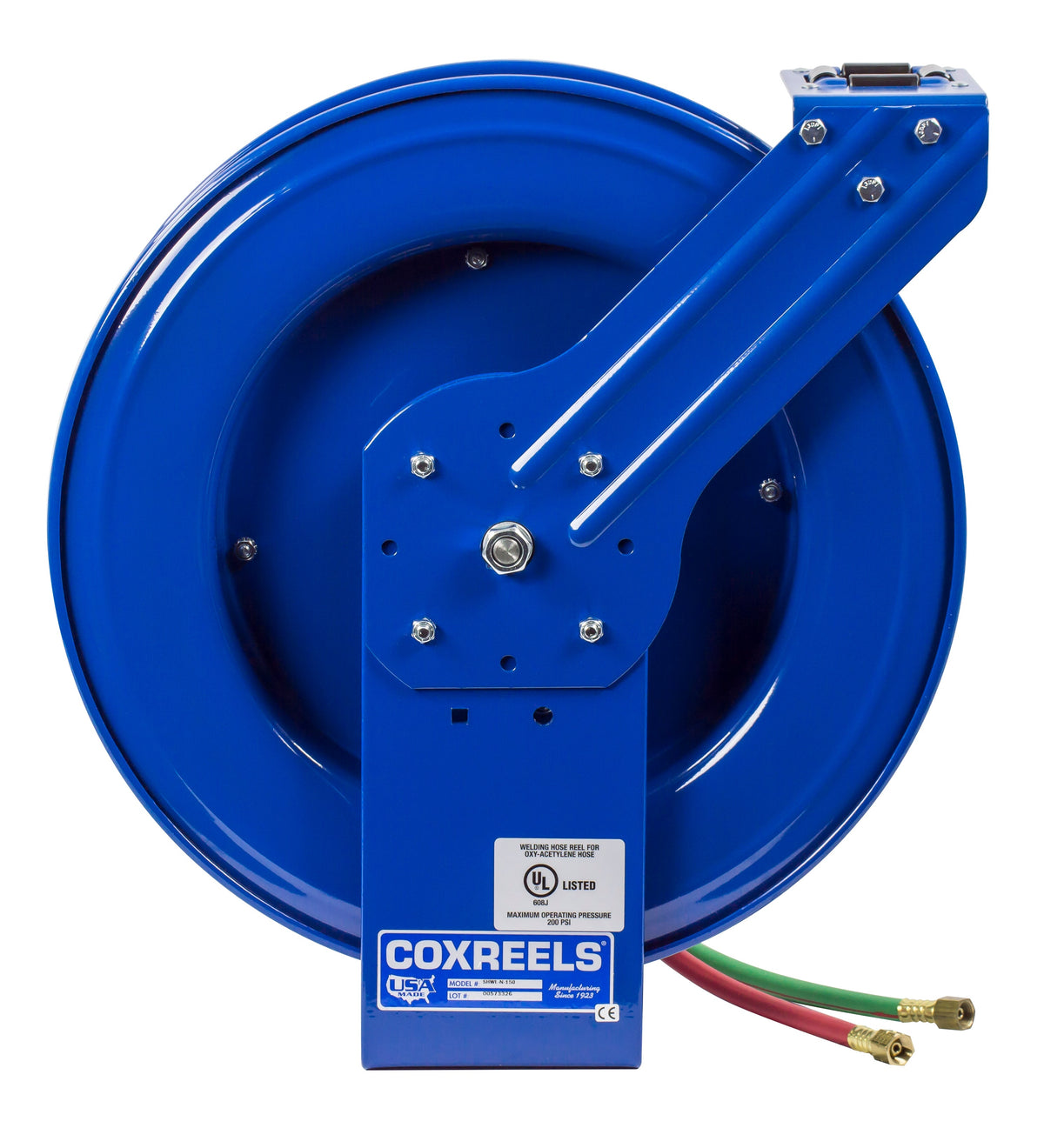

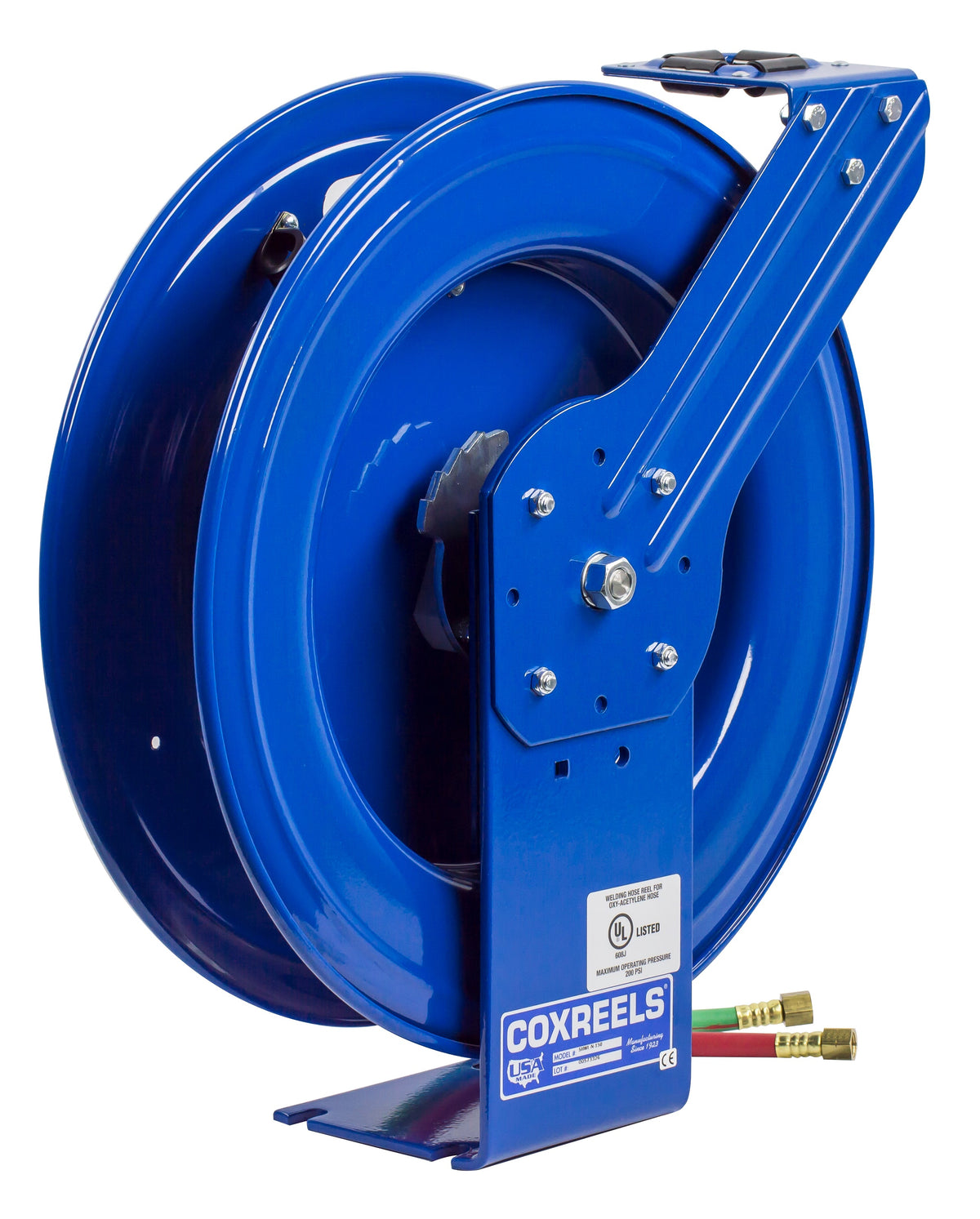

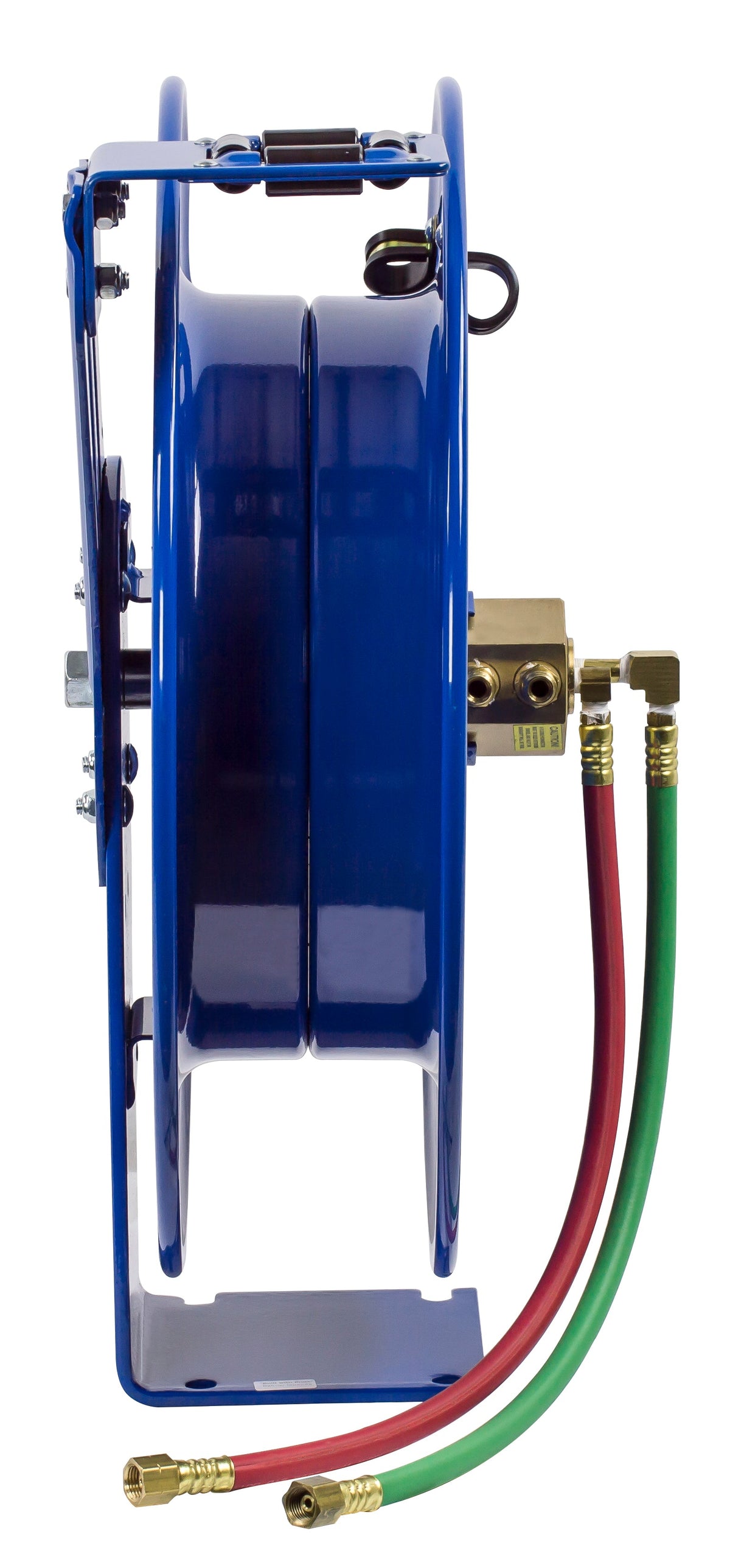

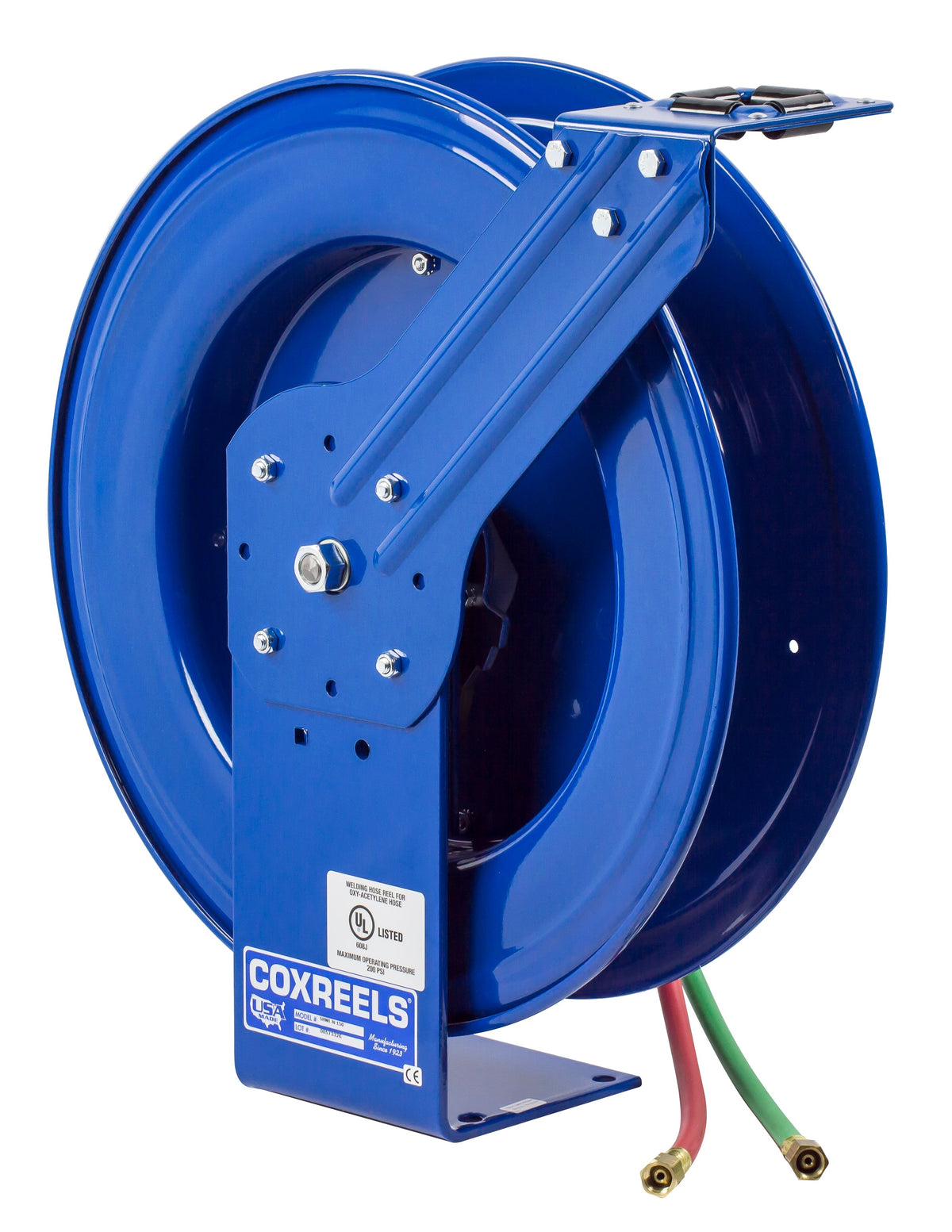

SHWTL-N-150 by Coxreels | SHW Series | 200 PSI Dual Hose Spring Driven Hose Reel for Oxy-Fuel Welding (T-Grade) | 1/4" Hose ID, 1/4" FNPT Inlet | Steel | 50ft Capacity, Hose Not Included
Coxreels SHW Series Spring Driven Hose Reels
Steel single-pedestal spring driven hose reels for welding gas, rated to 200 PSI. Made in the U.S.A.
1
What is this product used for?
- Welding Gas
2
What are the key specifications?
Steel, single-pedestal
Brass 90° full-flow with Viton seals
1/4" FNPT
150°F
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5"
3
What are the main product features?
- Welding Gas Swivel — External 90° full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|
| EPDM | |||||
| SHW-N-150 | 1/4" | 50 ft | 200 | 19.5" | 10.25 × 21.25 × 19.5 |
| SHW-N-160 | 1/4" | 60 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| SHW-N-175 | 1/4" | 75 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| SHW-N-1100 | 1/4" | 100 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| Less hose | |||||
| SHWL-N-150 | 1/4" | 50 ft | 200 | 19.5" | 10.25 × 21.25 × 19.5 |
| SHWL-N-160 | 1/4" | 60 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| SHWL-N-175 | 1/4" | 75 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| SHWL-N-1100 | 1/4" | 100 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| SHWTL-N-150 | 1/4" | 50 ft | 200 | 19.5" | 10.25 × 21.25 × 19.5 |
| SHWTL-N-175 | 1/4" | 75 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| SHWTL-N-1100 | 1/4" | 100 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| Neoprene | |||||
| SHWT-N-150 | 1/4" | 50 ft | 200 | 24" | 10.25 × 21.25 × 19.5 |
| SHWT-N-175 | 1/4" | 75 ft | 200 | 24" | 10.25 × 25.5 × 24 |
| SHWT-N-1100 | 1/4" | 100 ft | 200 | 24" | 10.25 × 25.5 × 24 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MR-1 | Overhead Mounting Bracket | |
| 15720 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections | ||
| 5423-1.5 | 18" inlet hose | SHW-N-150/160/175/1100; SHWL-N-150/160/175/1100 |
| 5424-1.5 | 18" inlet hose | SHWT-N-150/175/1100; SHWTL-N-150/175/1100 |
| Hose end — fit every model | ||
| 633 | Hose/cord stop | |
| 237-1 | Spiral hose/cord guard | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
SHW Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
