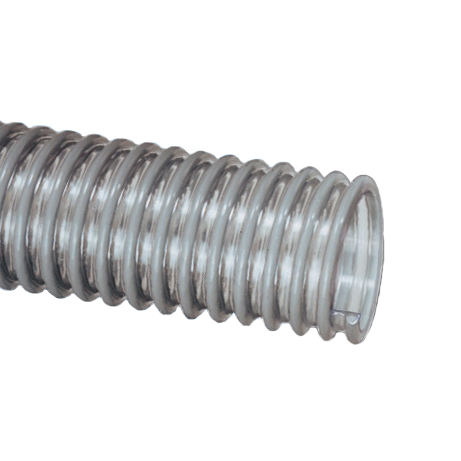

SH500X100 Tigerflex by Kuriyama | SH Series | Standard Duty Low Temperature Liquid Suction Hose | 5" ID | PVC | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Drain lines, Dust collection, Gold dredging, Water suction - standard duty | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| SH250X100 | 2-1/2" | 63.5mm | 9.97" | 75.5mm | 30 PSI | 9 PSI | 24 in. Hg | 18 in. Hg | 3" | 100ft | 0.43 lbs |
| SH400X100 | 4" | 101.6mm | 5.52" | 114.8mm | 25 PSI | 7 PSI | 18 in. Hg | 14 in. Hg | 6" | 100ft | 1.06 lbs |
| SH500X100 | 5" | 127.0mm | 5.57" | 141.5mm | 20 PSI | 6 PSI | 16 in. Hg | 12 in. Hg | 10" | 100ft | 1.47 lbs |
| SH600X100 | 6" | 153.4mm | 6.69" | 169.9mm | 20 PSI | 6 PSI | 14 in. Hg | 10 in. Hg | 12" | 100ft | 2.27 lbs |
| SH800X60 | 8" | 204.8mm | 8.86" | 225.0mm | 10 PSI | 3 PSI | 12 in. Hg | 8 in. Hg | 24" | 60ft | 3.34 lbs |
