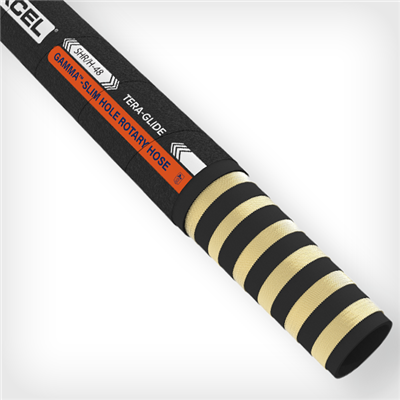

SH-SPH-3.0-100 by Texcel | GAMMA™ Series | Slim Hole Rotary Hose for drilling applications | 3" Hose ID | 4,000 PSI | Black

$8,171.23

GAMMA™ by Texcel
SLIM HOLE ROTARY HOSE Series | 4,000 PSI hose designed for drilling applications

Hose Length: 100' Length

100' Length Exact Length (FT)

Quantity:

Discounts applied in cart/checkout.

Product Data:

Brand:

Series:

Color(s):

Technical Data:
Tube:	Black, NBR	Cover:	Black, abrasion, ozone and hydrocarbon resistant synthetic rubber
Reinforcement:	Multiple layers of spiraled high tensile steel wire	Maximum Length:	100 ft.
Safety Factor:	2.5:1	Operating Temperature:	-40 F to +250 F
Branding:	GAMMA™ - SLIM HOLE ROTARY HOSE 2 ½” (63.5mm) 4,000 PSI (276 bar) W.P. / 10,000 PSI (690 bar) B.P. 2.5:1 S.F. SHR/H-40 TERA-GLIDE 2 ½” -40 DN65 2,500 PSI (170 BAR) W.P. / 10,000 PSI (690) B.P. 4:1 S.F./ MSHA IC-84/43	Couplings:	Use GMCO™ 9000 SERIES Couplings

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Burst Pressure (psi)	Bend Radius	Lbs./Ft.
SH-SPH-2.5-100	2-1/2"	3-3/4"	4,000 psi	10,000 psi	26"	4.57 lbs/ft
SH-SPH-3.0-100	3"	3-3/4"	4,000 psi	10,000 psi	27"	4.93 lbs/ft
