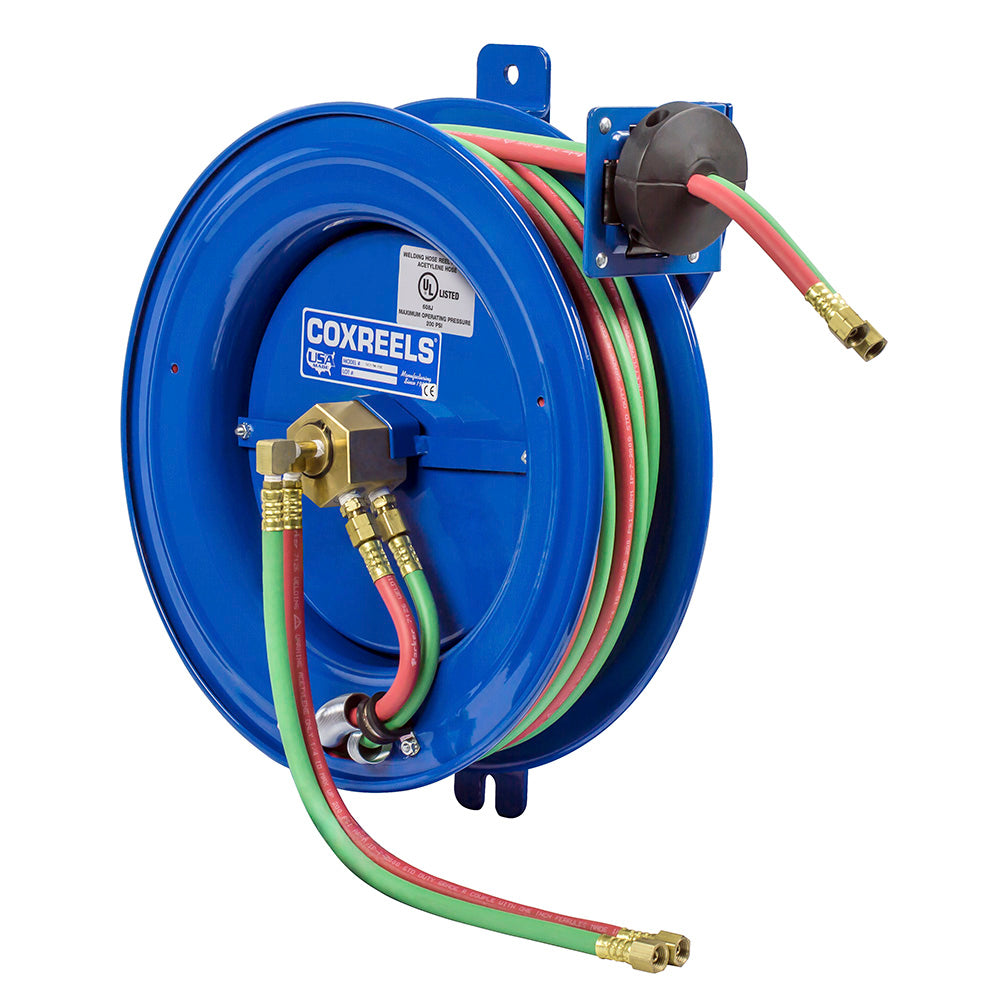

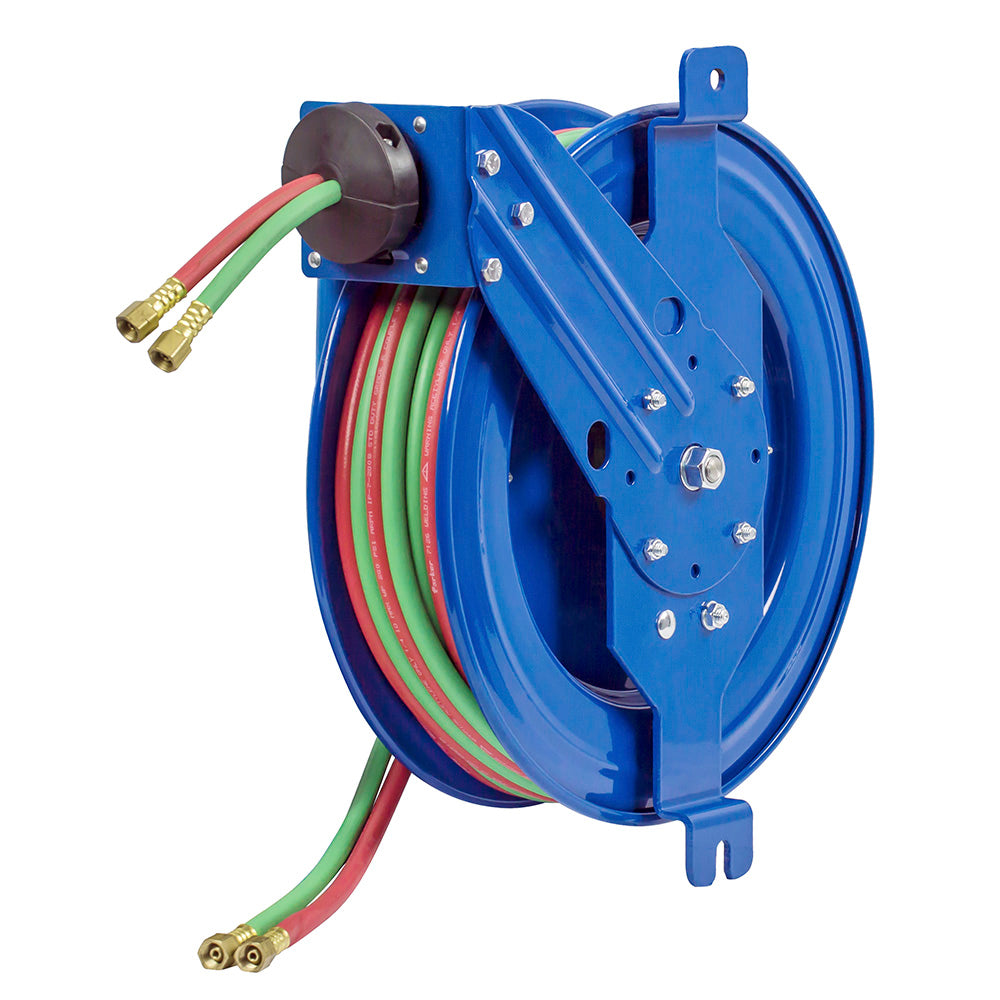

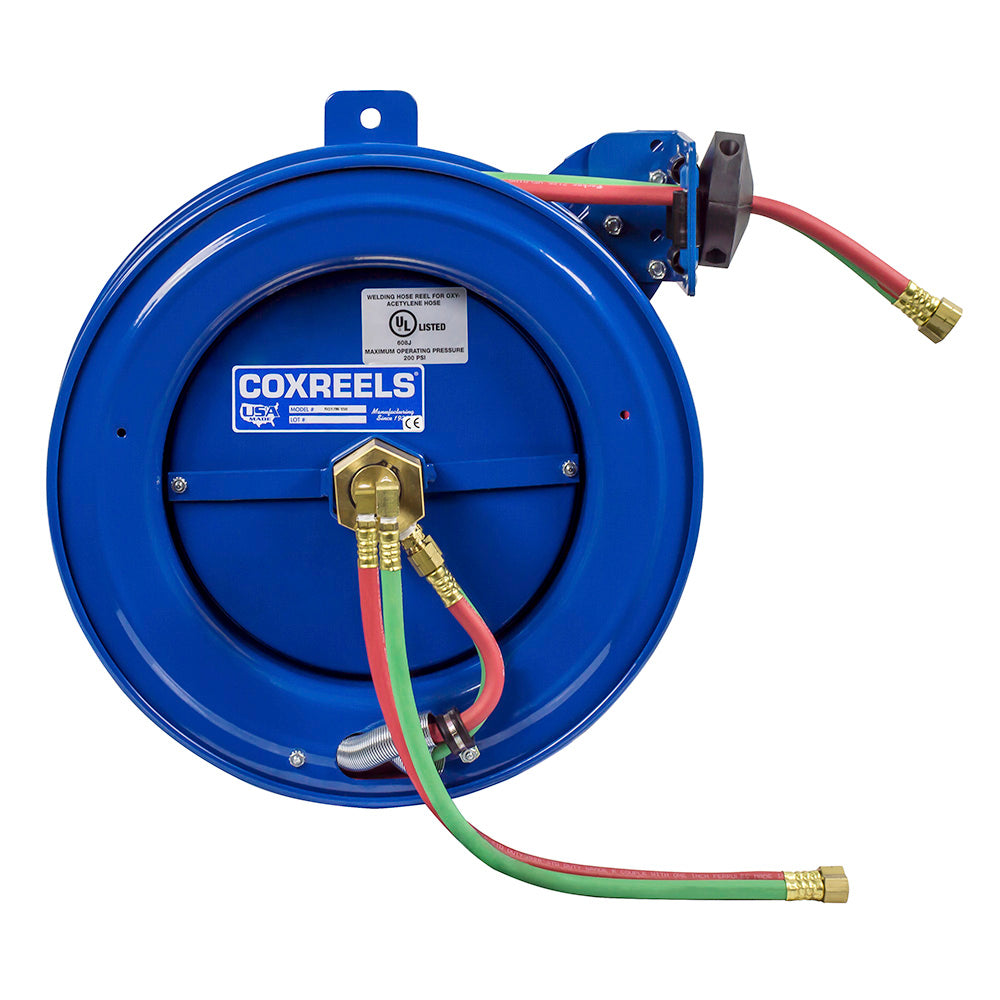

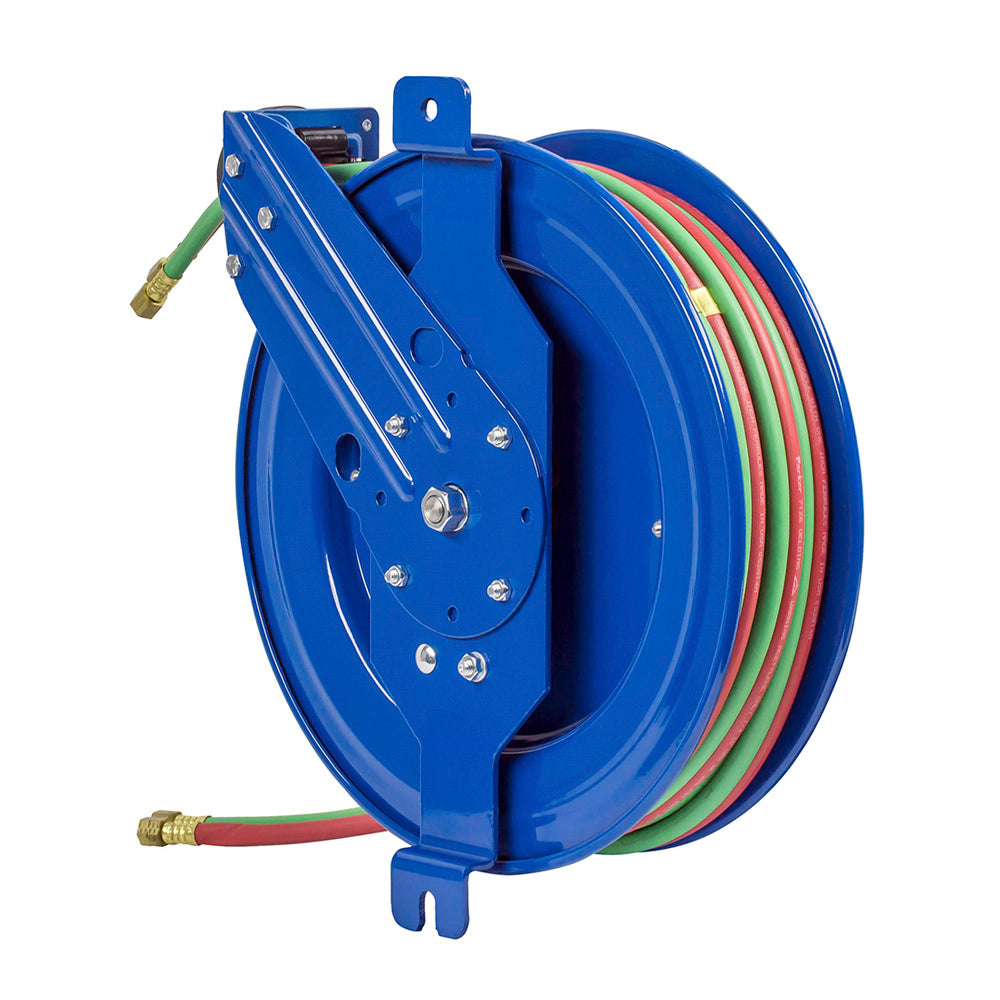

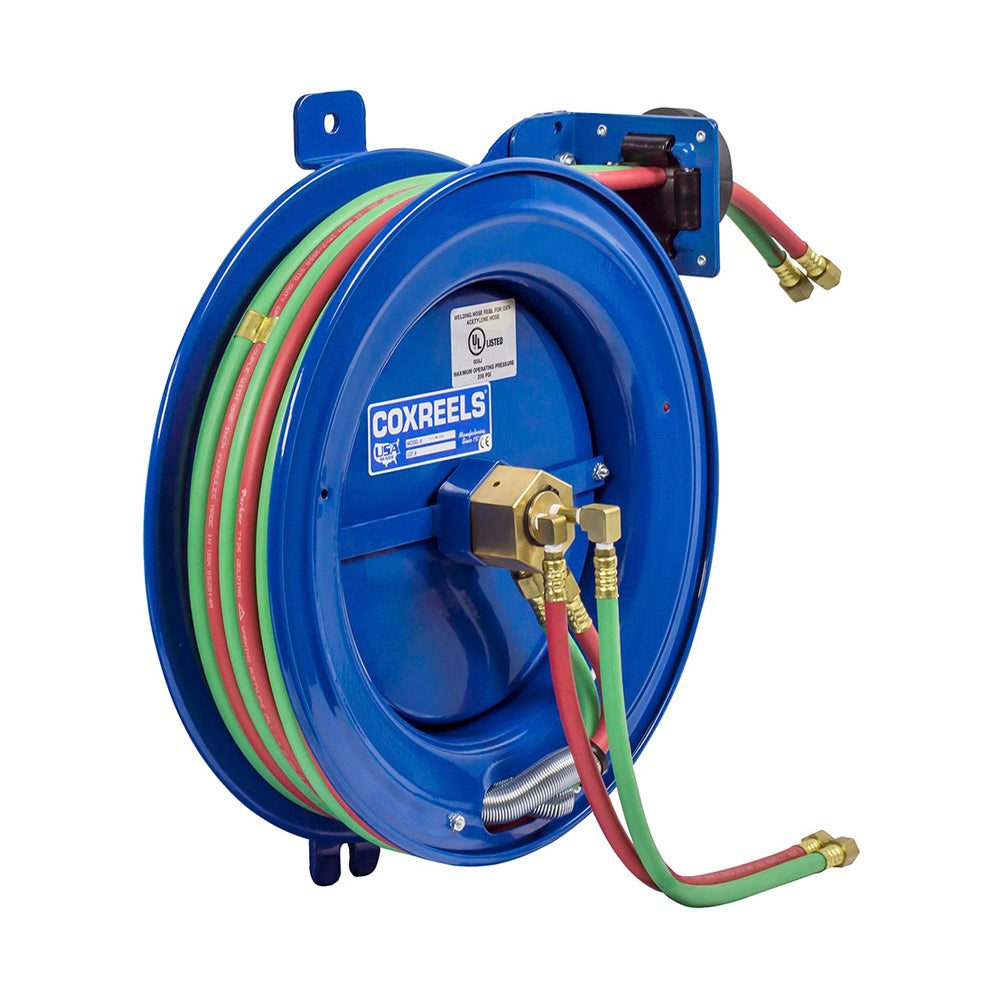

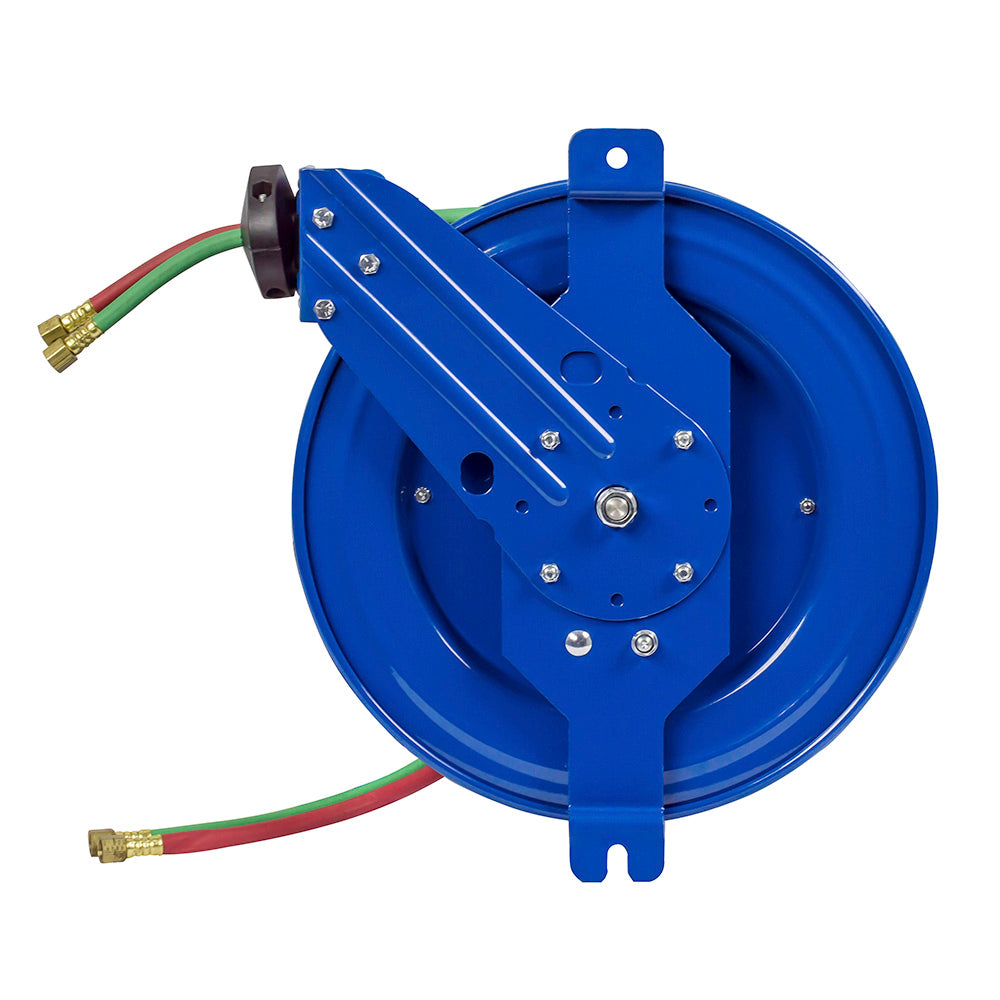

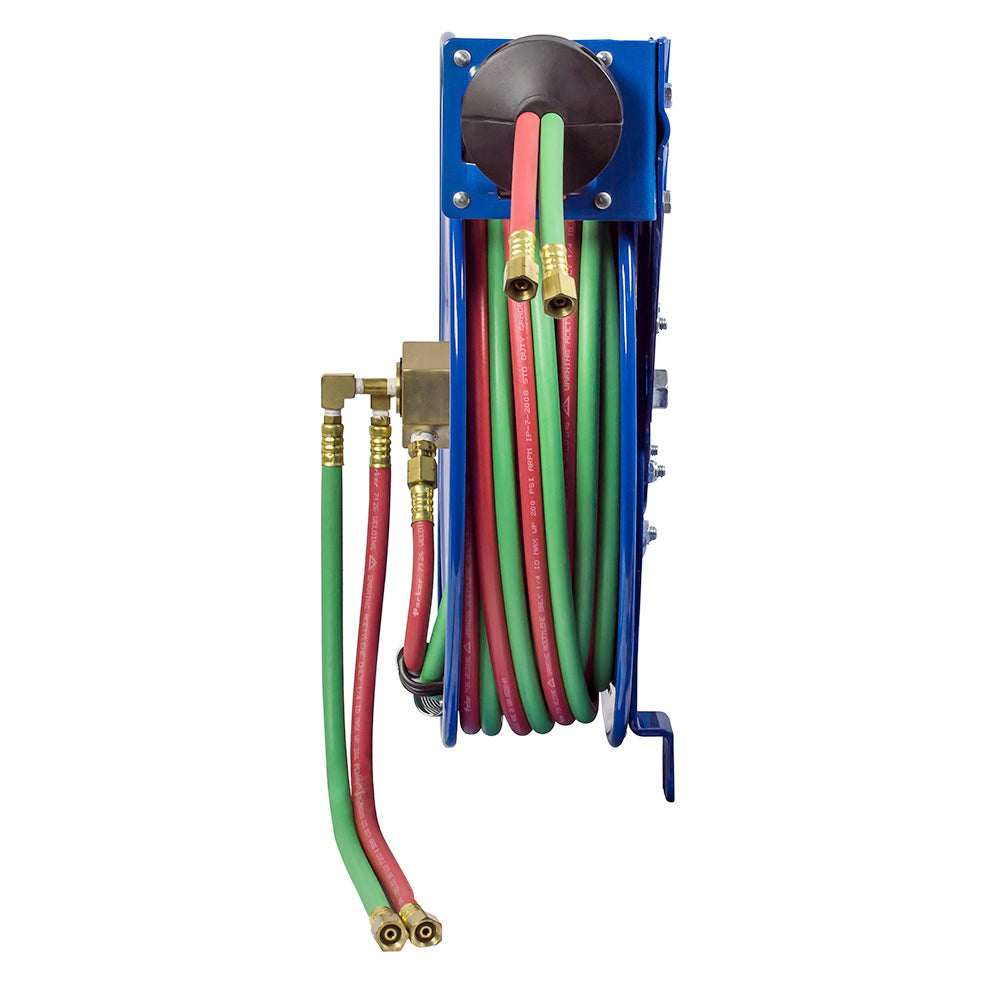

SG17WT-150 by Coxreels | SGW Series | 200 PSI Side Mount Spring Driven Hose Reel with Guide Arm for Oxy-Fuel Welding (T-Grade) | 1/4" Hose ID, 1/4" FNPT Inlet x 1/4" MNPT Hose End | Steel | 50ft Neoprene Hose Included
Coxreels SGW Series Spring Driven Hose Reels
Steel side-mount spring driven hose reels for welding gas, rated to 200 PSI. Made in the U.S.A.
1
What is this product used for?
- Welding Gas
2
What are the key specifications?
Steel, side-mount
Brass 90° full-flow with Viton seals
1/4" FNPT
150°F
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Vehicle Mounting
Ø0.5"
3
What are the main product features?
- Welding Gas Swivel — External 90° full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Side Mount Design — Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
- Multi-Position Guide Arm — Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Hose | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|---|
| SG17W-150 | 1/4" | 50 ft | 200 | EPDM | 3.75" | 17" | 8.875 × 19.5 × 17 |
| SG17WL-150 | 1/4" | 50 ft | 200 | Less hose | 3.75" | 17" | 8.875 × 19.5 × 17 |
| SG17WT-150 | 1/4" | 50 ft | 200 | Neoprene | 3.75" | 17" | 8.875 × 19.5 × 17 |
| SG19W-175 | 1/4" | 75 ft | 200 | EPDM | 4.5" | 19.5" | 10.5 × 22 × 19.5 |
| SG19WT-175 | 1/4" | 75 ft | 200 | Neoprene | 4.5" | 19.5" | 10.5 × 22 × 19.5 |
5
Which accessories are available?
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BGX is -GGX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BGX | BSP swivel with Nitrile |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
