SFKHD-12 by Couplamatic | GW Series Coupling | 3/4" Extra Heavy Duty Split Flange Size | Complete Kit

Sale price$71.28

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Split Flange Kits

Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 3/4in Caterpillar Flange
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

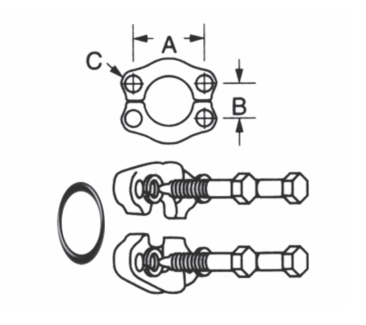

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFKHD-12 D12 3/4" 2.00" 0.94" 13/32"
SFKHD-16 D16 1" 2.25" 1.09" 15/32"
SFKHD-20 D20 1-1/4" 2.63" 1.25" 17/32"
