SFKHD-16 by Couplamatic | GW Series Coupling | 1" Flange Size | Complete Kit

SFKHD-16 by Couplamatic | GW Series Coupling | 1" Flange Size | Complete Kit

Sale price$75.84
Buy more, save moreDiscounts applied in cart/checkout.
Split Flange Kit — Complete

SFKHD GW Series Split Flange Kit — Complete Kit

SFKHD is the Complete Kit configuration of the GW Series Split Flange Kit, terminating GW Series split flange connections.

1

What are the main product features?
  • NO SKIVE REQUIRED
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Complete kit — flange halves, bolts and O-ring supplied together.
  • Everything needed for one connection — no separate hardware to source.
  • Matched to the flange code — order the kit that matches the flange head on the coupling.
2

Which sizes are available?

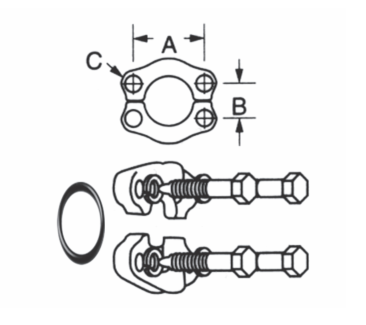

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFKHD-12 D12 3/4" 2.00" 0.94" 13/32"
SFKHD-16 D16 1" 2.25" 1.09" 15/32"
SFKHD-20 D20 1-1/4" 2.63" 1.25" 17/32"

Additional Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 1in Caterpillar Flange

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
