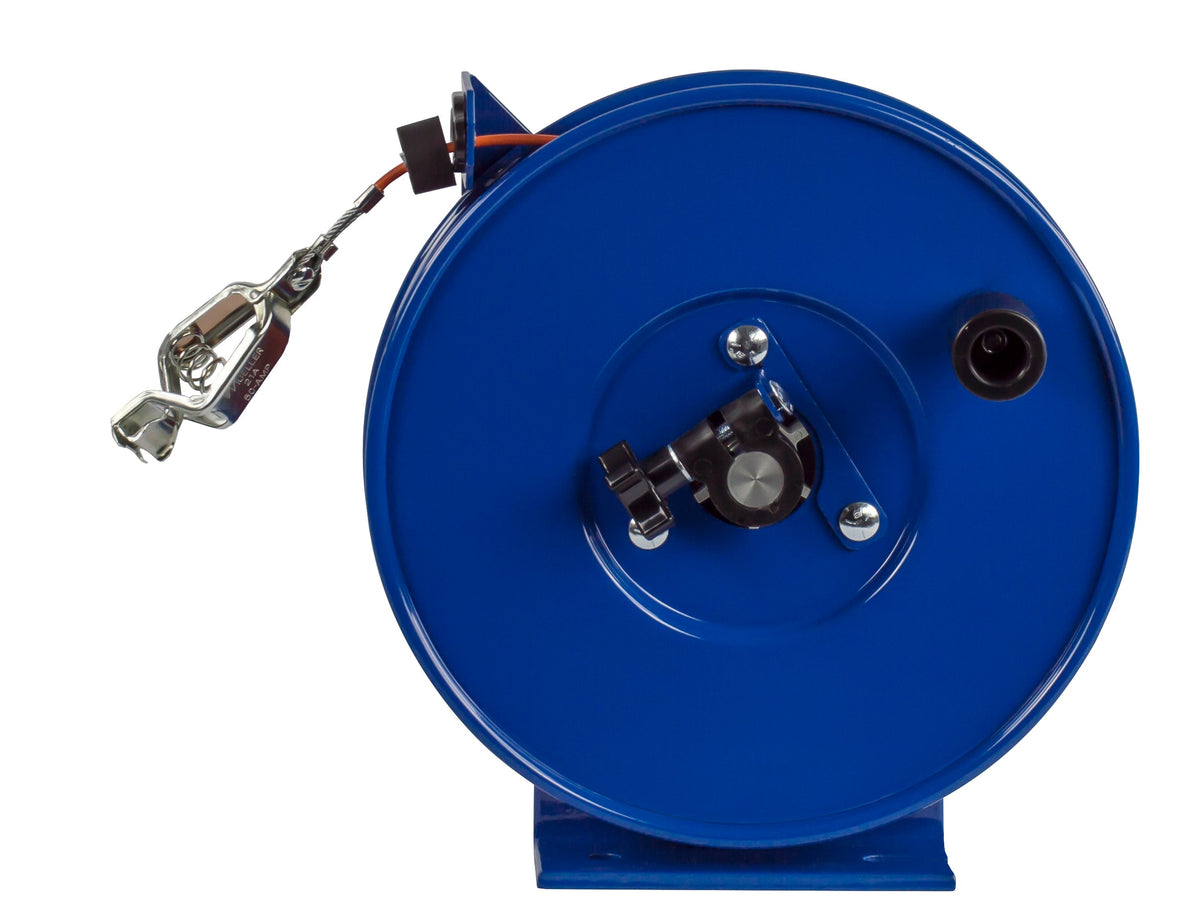

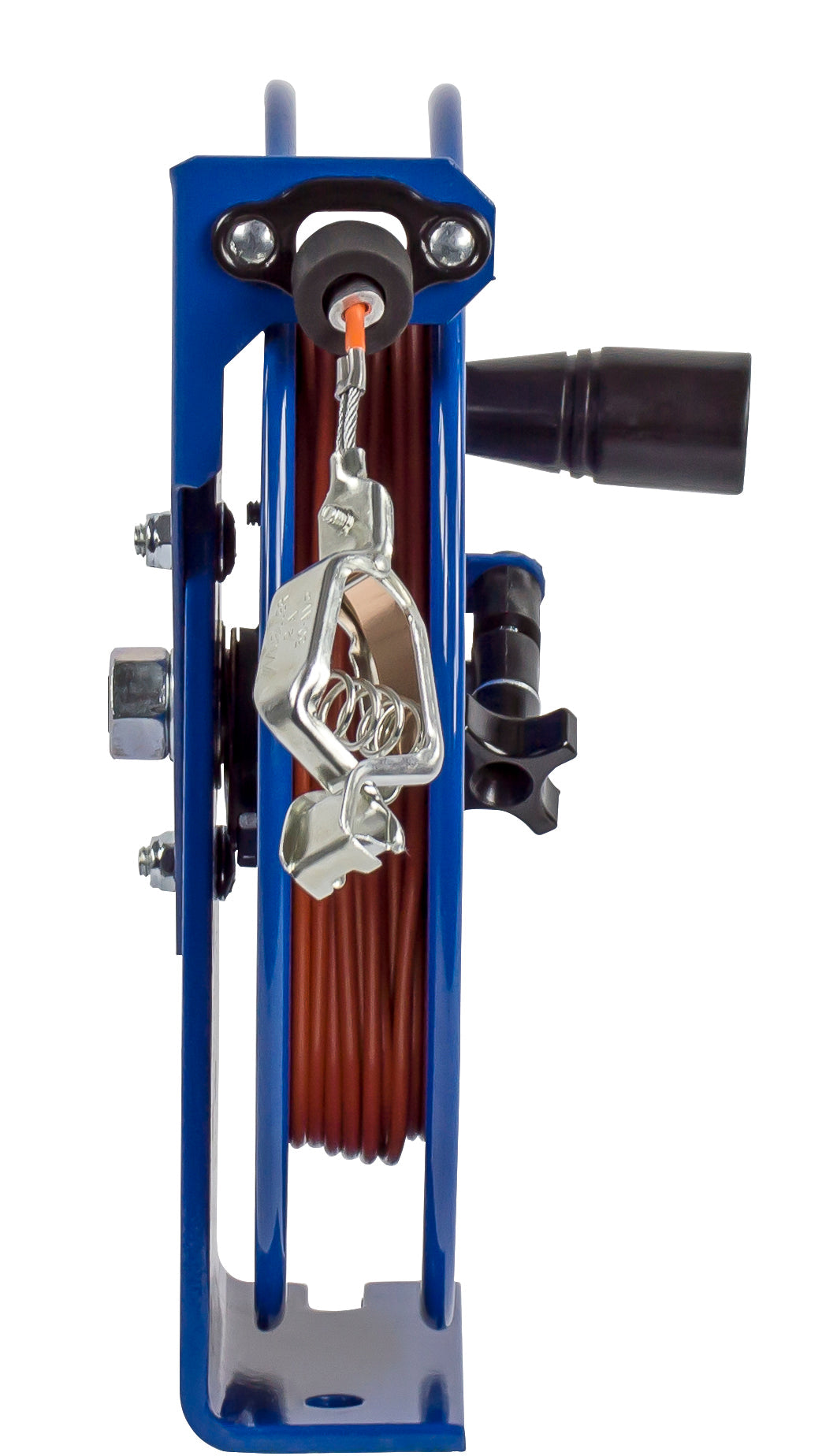

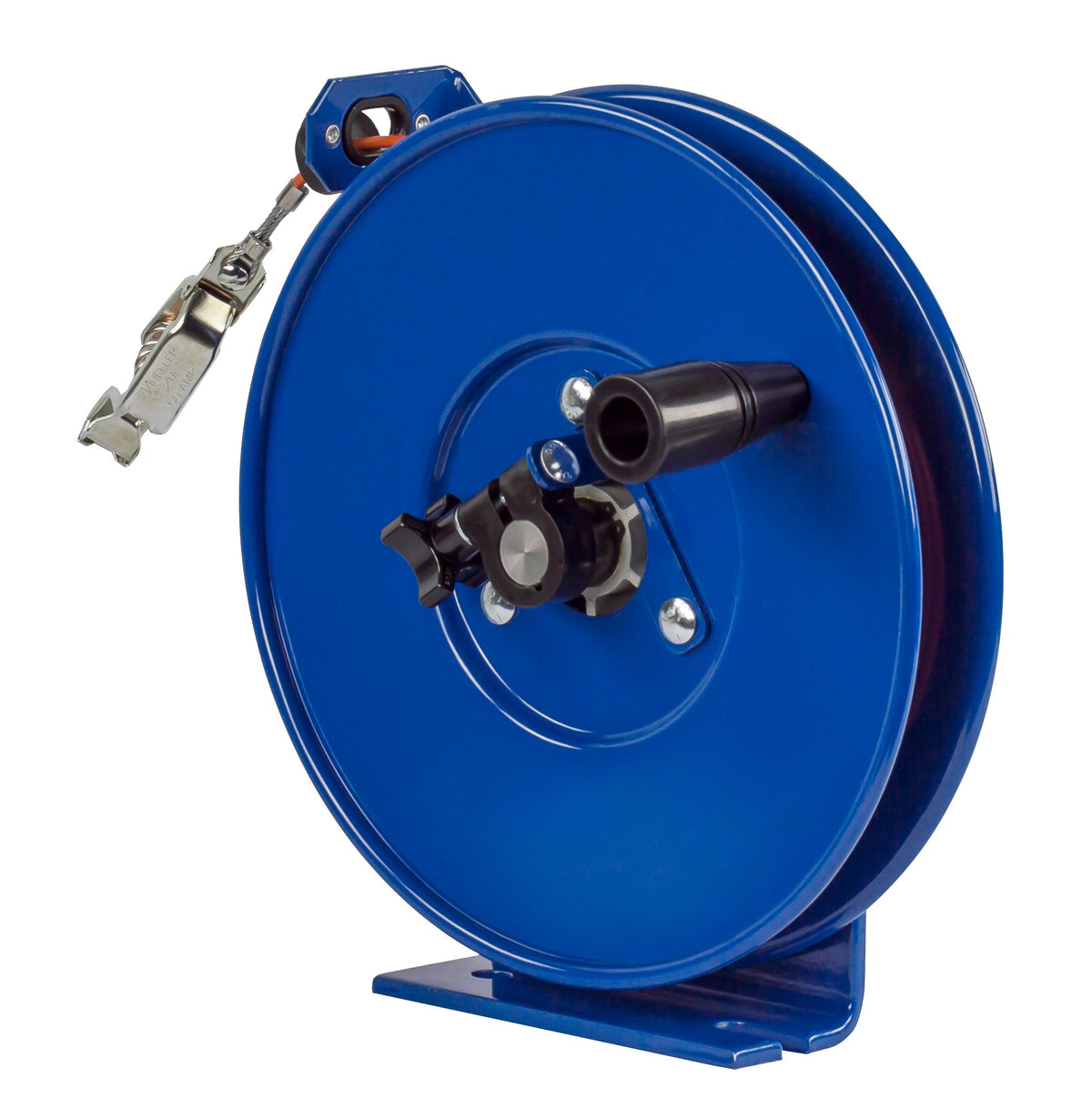

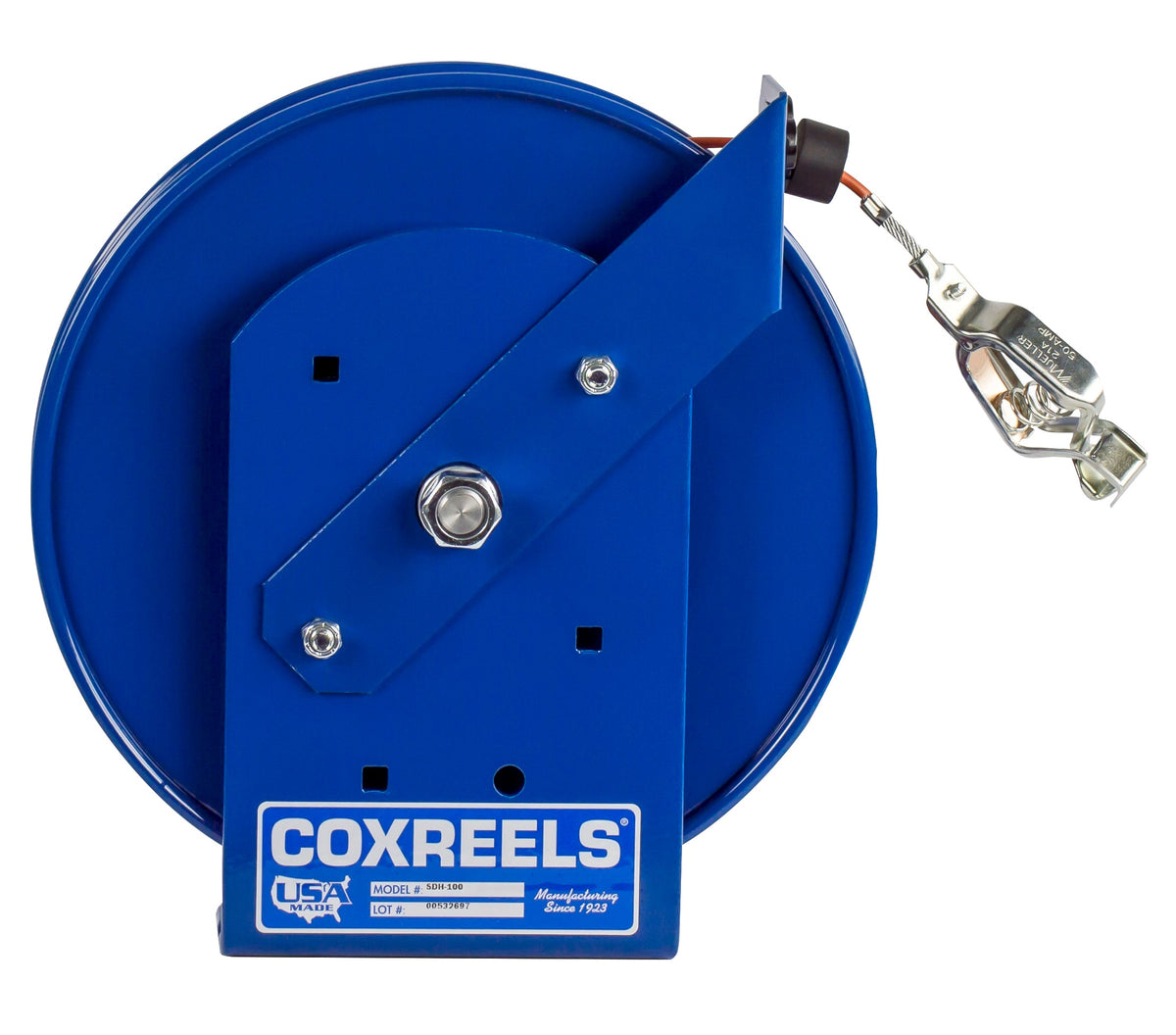

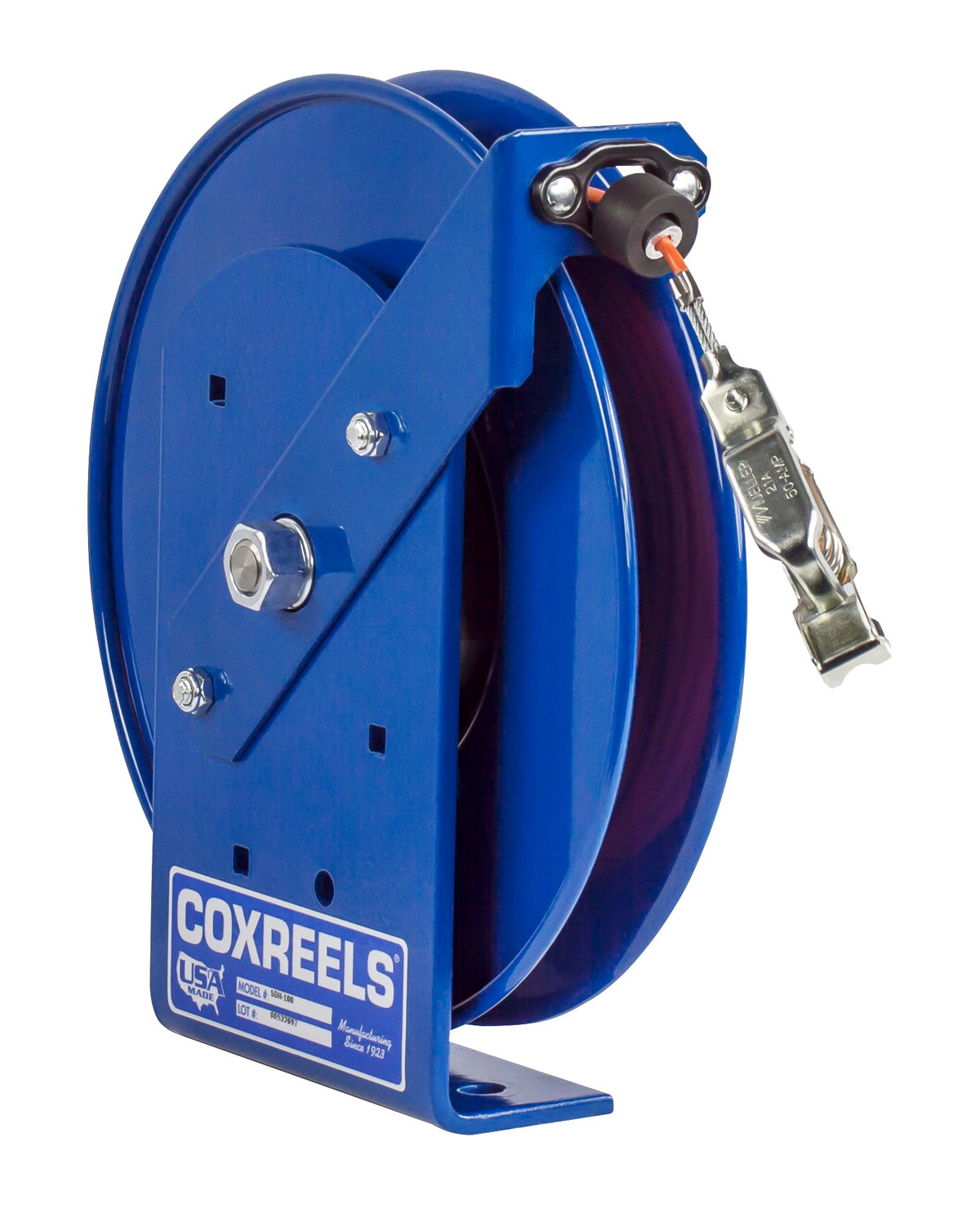

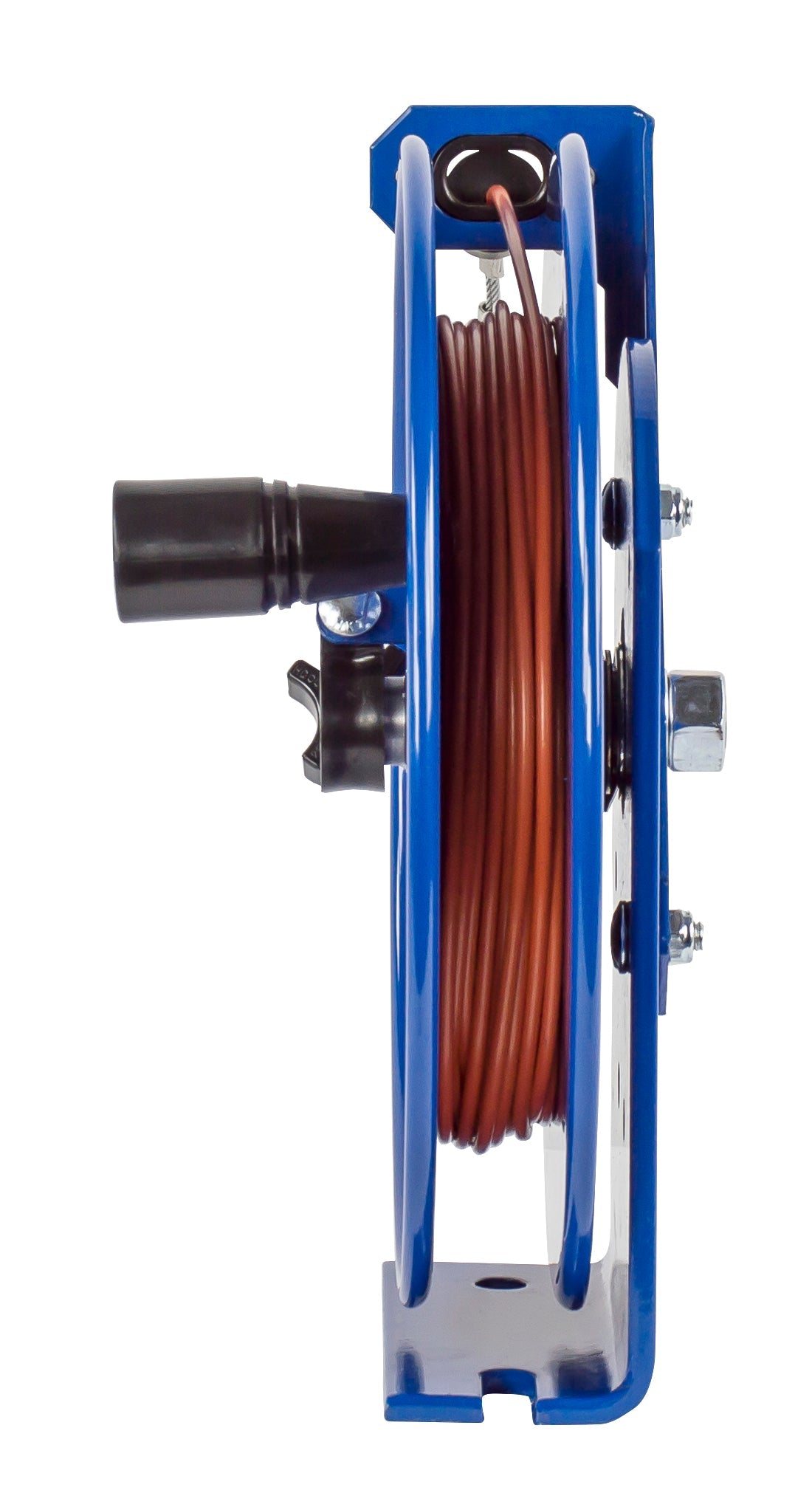

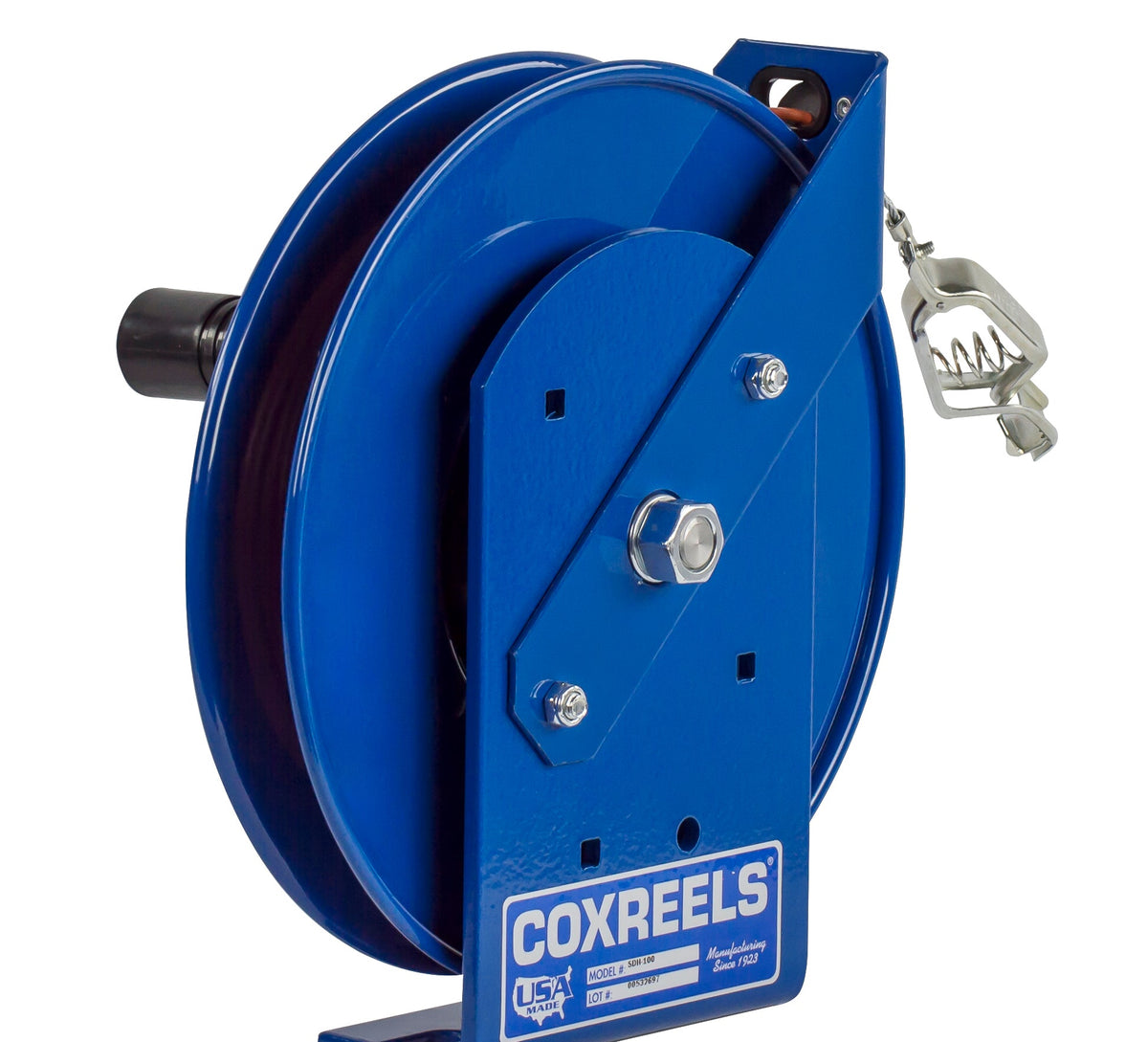

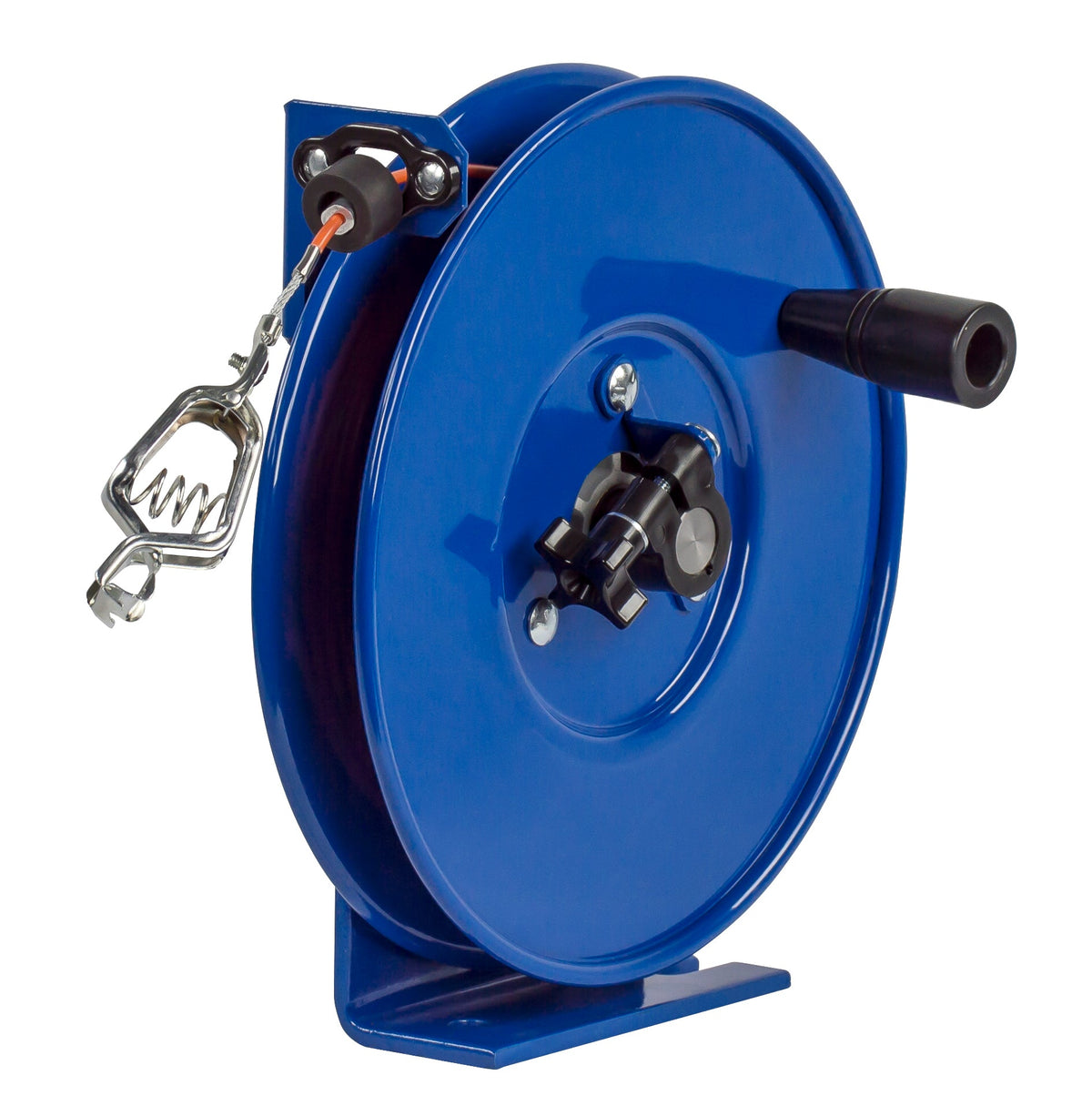

SDH-200-1 by Coxreels | SDH Series | Hand Crank Static Discharge Cable Reel | Steel | 200ft Cable Included
Coxreels SDH Series Hand Crank Cable Reels
Steel single-pedestal hand crank cable reels for static discharge - grounding. Made in the U.S.A.
1
What is this product used for?
- Static Discharge - Grounding
2
What are the key specifications?
Steel, single-pedestal
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5"
5.75 × 11.5 × 11 in
3
What are the main product features?
- Retraction — Compact static discharge cable reel with direct hand crank retraction.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- Multi-Position Guide Arm — Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Steel Cable — 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
SDH Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
