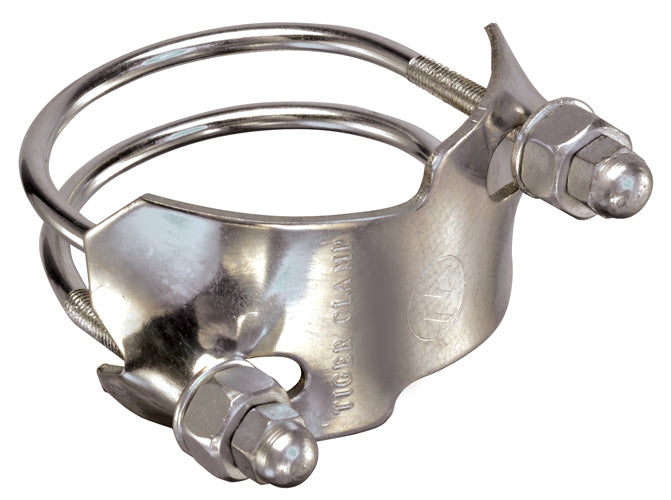

SDBC-SS-5 Tigerflex® by Kuriyama | SDBC-SS Series | Counterclockwise Spiral Double Bolt Clamp | 5" Size | 304 Stainless Steel
Kuriyama of America Inc.
Tigerflex® | SDBC Series | Counterclockwise Spiral Double Bolt Clamp | 304 Stainless Steel
Designed for use with hoses that have a convoluted cover or helix.
Spiral design allows for premium sealing between the convolutions or helix.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $61.64 |
| 40–79 | $55.73 |
| 80+ | $49.18 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Material(s):
Minimum Clamp I.D.:
5in
What are the Features?
- Designed for use with hoses that have a convoluted cover or helix.
- Spiral design allows for premium sealing between the convolutions or helix.
- Hex nut for easy installation and cap nut to prevent injury from sharp bolt edges.
- SDBC and SDBC-SS series have a counterclockwise left hand spiral design.
What are the Materials?
- SDBC Series: Zinc Plated Carbon Steel.
- SDBC-SS Series: 304 Stainless Steel.
- 304 stainless steel spiral rod, saddle, washer, hex nut, cap nut
Notes:
- Two or more Spiral Bolt Clamps are suggested for 3" ID and larger hoses.
- Both hex nuts should be tightened equally to prevent leakage.
- Suggested SDBC/SDBC-SS sizes to use with Tigerflex Metric sized hoses:
- WT, WE 45M 1.77" ID - Suggested SDBC-2 and SDBC-SS-2
- WT, WE 57M 2.24" ID - Suggested SDBC-2.25
- WT, WE 60M 2.36" ID - Suggested SDBC-2.5 and SDBC-SS-2.5
- CAUTION: Proper evaluation of holding power for each clamp must be determined for each individual application.
| SDBC Series | Zinc Plated Carbon Steel | |||
|---|---|---|---|
| Part Number | Size (in) |
Maximum Torque (ft lbs) |
Weight (lbs) |
| SDBC-1.5 | 1-1/2" | 6 | 0.18 lbs |
| SDBC-2 | 2" | 6 | 0.36 lbs |
| SDBC-2.25 | 2-1/4" | 6 | 0.40 lbs |
| SDBC-2.5 | 2-1/2" | 8 | 0.48 lbs |
| SDBC-3 | 3" | 8 | 0.66 lbs |
| SDBC-3.5 | 3-1/2" | 8 | 0.70 lbs |
| SDBC-4 | 4" | 24 | 1.02 lbs |
| SDBC-5 | 5" | 24 | 1.76 lbs |
| SDBC-6 | 6" | 30 | 2.00 lbs |
| SDBC-8 | 8" | 30 | 2.76 lbs |
| SDBC-10 | 10" | 30 | 3.46 lbs |
| SDBC-12 | 12" | 30 | 4.14 lbs |
| SDBC-SS Series | 304 Stainless Steel | |||
|---|---|---|---|
| Part Number | Size (in) |
Maximum Torque (ft lbs) |
Weight (lbs) |
| SDBC-SS-1.5 | 1-1/2" | 6 | 0.20 lbs |
| SDBC-SS-2 | 2" | 6 | 0.40 lbs |
| SDBC-SS-2.5 | 2-1/2" | 6 | 0.55 lbs |
| SDBC-SS-3 | 3" | 8 | 0.73 lbs |
| SDBC-SS-3.5 | 3-1/2" | 8 | 0.94 lbs |
| SDBC-SS-4 | 4" | 24 | 1.12 lbs |
| SDBC-SS-5 | 5" | 24 | 1.94 lbs |
| SDBC-SS-6 | 6" | 30 | 2.20 lbs |
| SDBC-SS-8 | 8" | 30 | 3.04 lbs |
| SDBC-SS-10 | 10" | 30 | 3.81 lbs |
| SDBC-SS-12 | 12" | 30 | 4.55 lbs |
