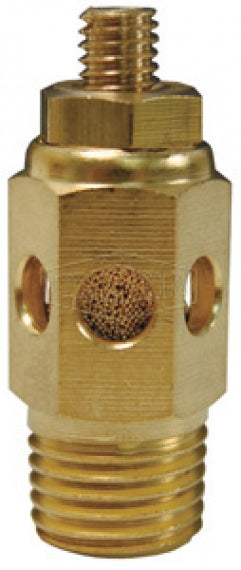

SCM28 by Dixon Valve | Pneumatic Speed Control Muffler | 1/4" Male NPT | 40 SCFM Max. Adjusted Flow | Brass

SCM28 by Dixon Valve | Pneumatic Speed Control Muffler | 1/4" Male NPT | 40 SCFM Max. Adjusted Flow | Brass

Sale price$12.50
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Safe and infinite variations of metering air flow at acceptable sound levels on exhaust ports of air valves.
  • Speed of operating cylinder or air tool may be increased or decreased with adjusting screw; the final position is locked in place by the lock nut.
  • Exhaust air noise is eliminated by a surrounding sleeve of sintered bronze.
  • Element: 40 micron sintered bronze.
Specifications:
  • Maximum operating pressure: 300 PSI
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C)
Brass
Part Number		 NPT Thread Approximate
Full Operating
Height		 Maximum
Adjusted
SCFM
SCM18 1/8" 1-5/16" 30 SCFM
SCM28 1/4" 1-9/16" 40 SCFM
SCM38 3/8" 1-5/8" 62 SCFM
SCM48 1/2" 2" 103 SCFM
SCM68 3/4" 2-3/8" 110 SCFM
SCM88 1" 2-1/2" 140 SCFM

Additional Product Data:

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
