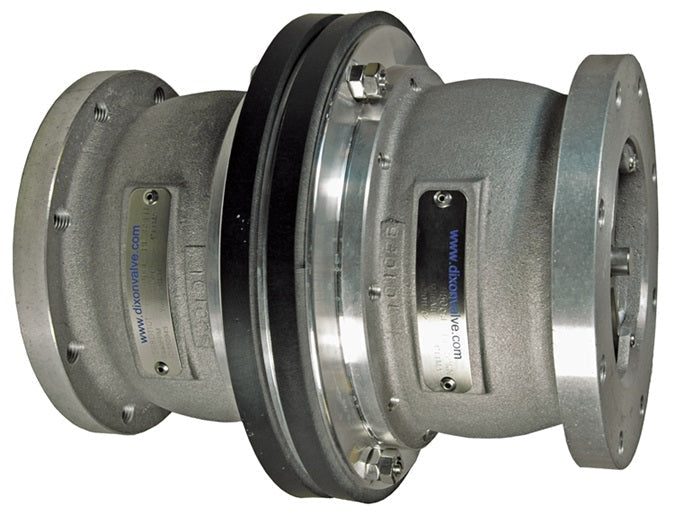

SBC400ALTTMA by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 4" Size | TTMA Flange x TTMA Flange | Aluminum

SBC400ALTTMA by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 4" Size | TTMA Flange x TTMA Flange | Aluminum

Sale price$3,603.48

Dixon Valve
MannTek Safety Break-Away Coupling | Industrial Version | TTMA Flange x TTMA Flange

Minimizes spillage and damage associated with drive away and pull away incidents.

Installs between the API coupler and the loading arm.
Buy More, Save More!
Quantity Price Each
2–3 $3,387.27
4–9 $3,243.13
10+ $2,882.78
Discounts applied in cart/checkout.
Features:
  • Coupling automatically senses excessive load, closes the valves and disconnects, release is executed when force causes the bolts to break.
  • High flow rate / low pressure drop.
Construction:
  • FKM (FPM) seal standard.
Specifications:
  • Working Pressure: 150 PSI at 70°F (21°C)
How It Works:
  • The safety breakaway valve consists of two halves, each with a valve that has an O-ring seal. When the safety breakaway couplings separate, it allows the valves to close. The two valves close rapidly, minimizing exposure to personnel and the environment.
  • Safety breakaway couplings have three external break bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin. Non-axial forces concentrate the tension forces more strongly on one bolt, so that the safety breakaway coupling reacts in a natural way to the reduction of the hose break forces.
Aluminum
Part Number		 Size Length
SBC400ALTTMA 4" 9.40"

Product Data:

Brand:
  • MannTek
Shape:

Straight

Material(s):
  • Aluminum

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
