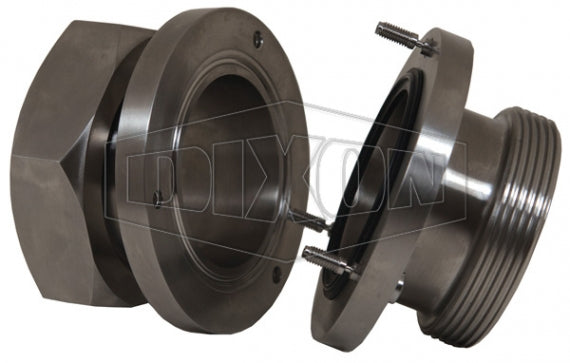

SBC-E300TP13 Dixon Valve Sanitary Breakaway Coupling - 3" Bevel Seat Ends - EPDM Gasket - 316 Stainless Steel

SBC-E300TP13 Dixon Valve Sanitary Breakaway Coupling - 3" Bevel Seat Ends - EPDM Gasket - 316 Stainless Steel

Sale price$502.32

Dixon Sanitary Fittings

Breakaway Coupling

Minimizes spillage and damage associated with pull away and drive away incidents.
Buy More, Save More!
Quantity Price Each
5–14 $472.18
15–29 $426.97
30+ $376.74
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • 316 Stainless Steel
Seal Material(s):
  • EPDM
Features:
  • Designed to be installed between a fixed point and a hose.
  • 13kN break load bolts standard.
  • Coupling breaks away with an excessive load.
Construction:
  • 316 stainless steel polished to standard <32Ra, 3A finish
  • Clamp gasket: EPDM standard
Specifications:
  • Working Pressure: 350 PSI @ 70°F (21°C)
Part Number Size Connection Type Gasket Material
SBC-E200CC13 2" Clamp Ends EPDM 316 Stainless Steel
SBC-E300CC13 3" Clamp Ends EPDM 316 Stainless Steel
SBC-E200TP13 2" Bevel Seat Ends EPDM 316 Stainless Steel
SBC-E300TP13 3" Bevel Seat Ends EPDM 316 Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
